Introduction
Do not connect the QL-560 to your personal computer until directed to do so when
installing the printer driver.
LED lamp on the QL-560 indicates the current operating condition.
Front Rear
Lamp Condition
Not lit
Power is OFF.
Lit
Power is ON.
(Normally lit while power is on, the LED flashes during cleaning or if an
error has occurred.)
Flashing fast
Indicates one of the following errors.
• Cutter error
• Label sensor error
(DK Roll not installed correctly, end of DK Roll, or label jam)
• DK Roll compartment cover is open during operation
• Incorrect DK Roll installed
• No DK Roll installed
Flashing slow
Cooling
(Waiting for temperature of print head to lower)
Turns off after flashing
fast ten times
System error
Turn the QL-560 off and then on again.
If this error re-occurs, contact the retail outlet where the QL-560 was
purchased or your local authorized service center.

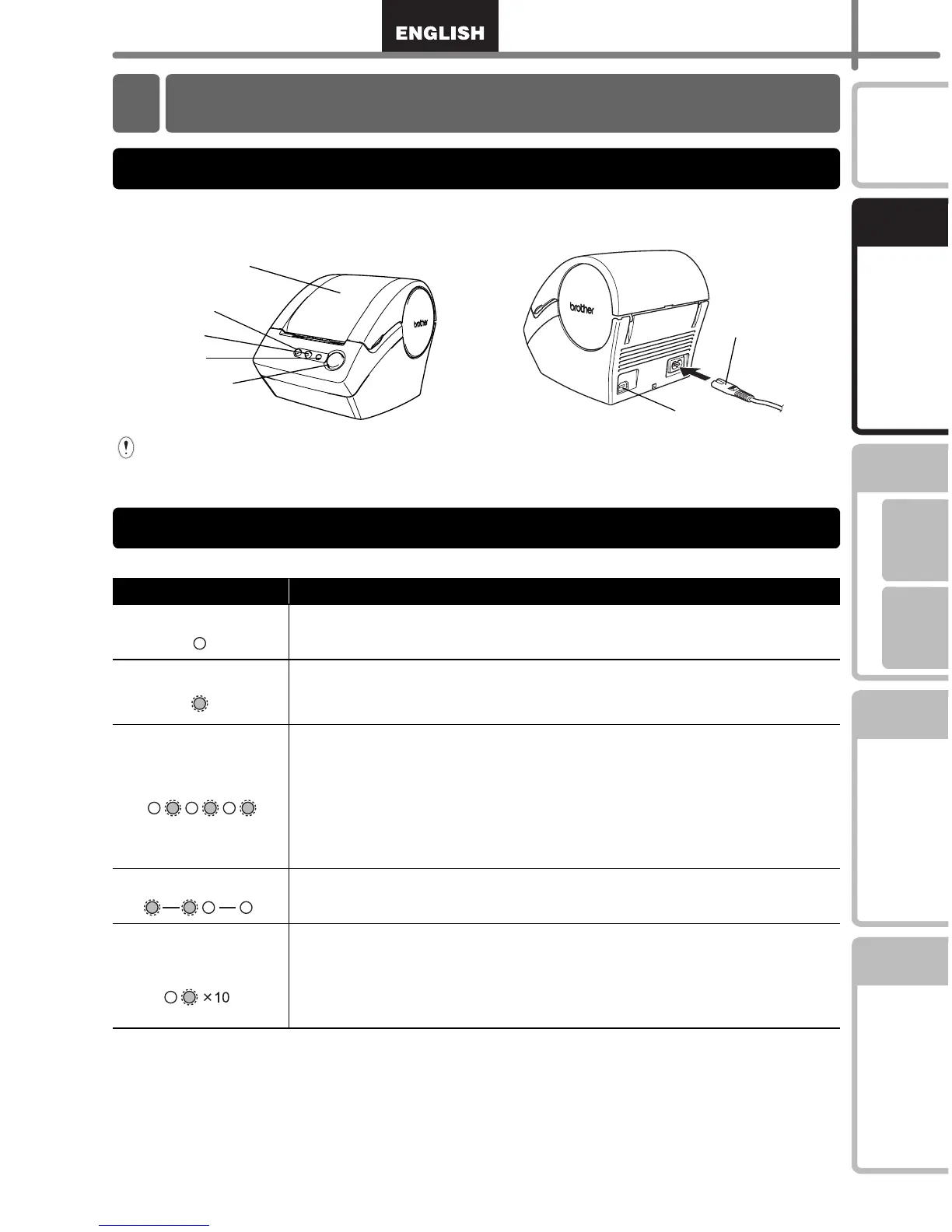

2 Parts Description
Main Printing Unit
FEED button
LED lamp
ON/OFF button
CUT button
DK Roll compartment cover
Power cord
USB port
LED Lamp

Brother P-TOUCH QL-560 Specifications

General

Print Technology	Direct thermal
Max Resolution	300 x 300 dpi
Cutter	Automatic
Interface	USB
Operating System Compatibility	Windows, Mac
Power Source	AC adapter
Label Width	Up to 62 mm
Max Print Width	2.3"
