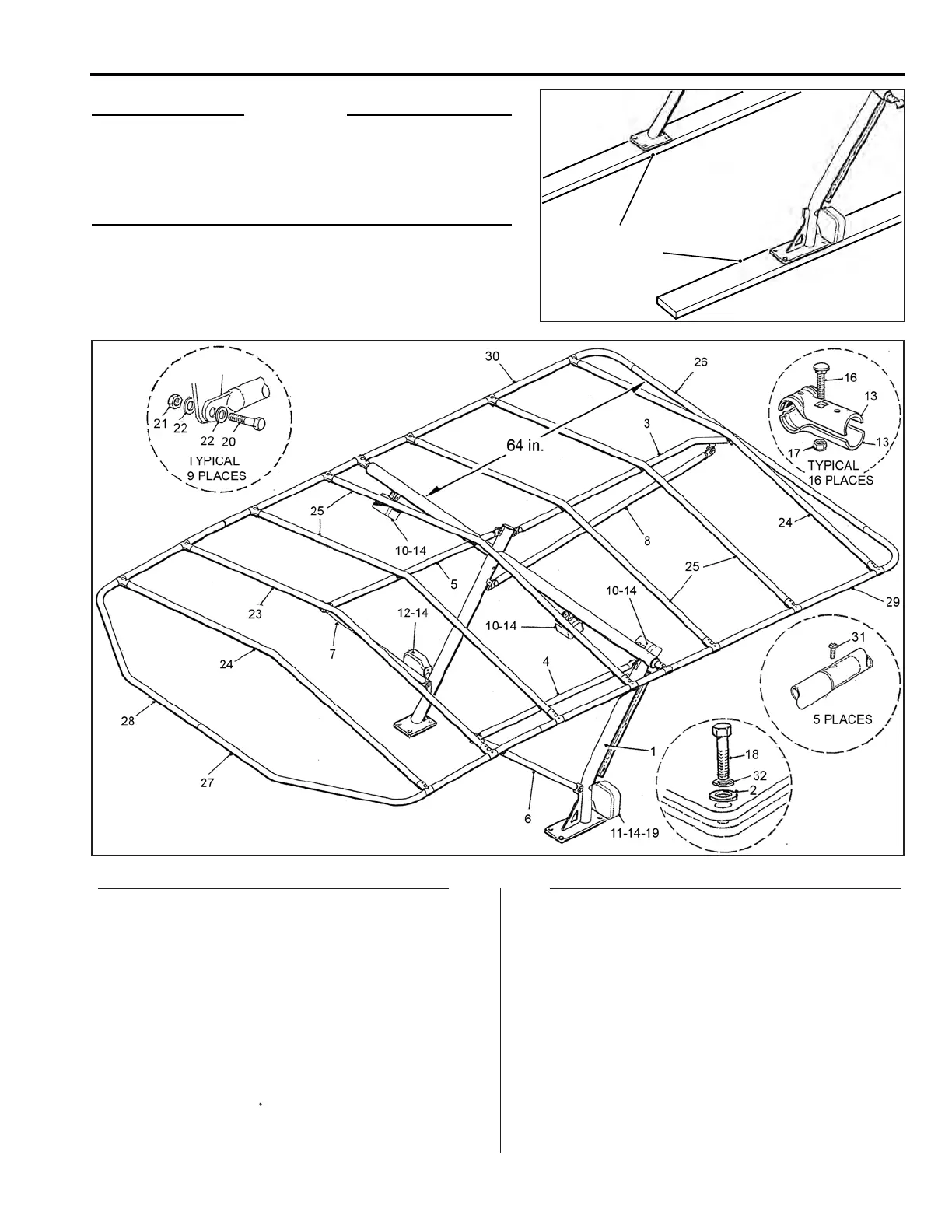

CANOPY FRAME ASSEMBLY
2-07
ITEM PART NO. DESCRIPTION QTY
ITEM PART NO. DESCRIPTION QTY
70-1 4160526 CANOPY SUPPORT (R) 1
70-2
70-3 H310166 REAR SPREADER 1
70-4 H110768 TOP FRONT SPREADER LH 1
70-5 H110769 TOP FRONT SPREADER RH 1
70-6 H110770 FRONT ANGLED MBR. LH 1
70-7 H110771 FRONT ANGLED MBR. RH 1
70-8 H110772 REAR ANGLED MBR. 1
70-9 4160250 CANOPY COVER 1
70-10 KE90010 WORK LIGHT 3
KE90014 BULB. WORK LIGHT 3
KE90017 LENS A/R
70-11 KN02007 SIGNAL LENS LH 1
70-12 KN02008 SIGNAL LENS RH 1
70-13 H110935 90 BRACE CLAMP (HALF) 30
70-14 H510009 WIRING HARNESS 1
70-15 KX99107 TIE WRAPS 35
70-16 F020516 CARR. BOLT 5/16 X 1 3/4 16
70-17 F210500 LOCKNUT 5/16 UNC 16
70-18 F040820 BOLT 1/2 UNC X 2 GR.8 8
70-19
70-20 F040714 BOLT 7/16 UNC X 1.5 GR.8 9
70-21 F220700 JAM NUT 7/16 UNC 9
70-22 F320700 USS WASHER 7/16 18
70-23 H310162 CROSS BRACE 1
70-24 H110761 CROSS BRACE FRT & REAR 2
70-25 H110762 CROSS BRACE 4
70-26 H110219 FRAME. REAR STRAIGHT 1
70-27 H110220 FRAME. FRONT CORNER LH 1
70-28 H110221 FRAME. FRONT CORNER RH 1
70-29 H110723 FRAME. REAR CORNER LH 1
70-30 H110724 FRAME. REAR CORNER RH 1
70-31 F700204 SCREW #10 PAN HD, PHIL 5
70-32 F310800 LOCKWASHER 1/2 8
F320800 WASHER 1/2 16
G0108065 BOLT M8 X 1.25 X 65 2
IMPORTANT
It is recommended that the assembly of teh Canopy Frame
is done by two persons.
A clean, firm, level surface should be selected.
To make assembly easier, the Canopy Support should be
anchored to two suitable bases.
Before starting to assembe the Canopy Frame, check against
the Parts List below that all items required have been shipped.
ASSEMBLY
BASES
To Next Page
