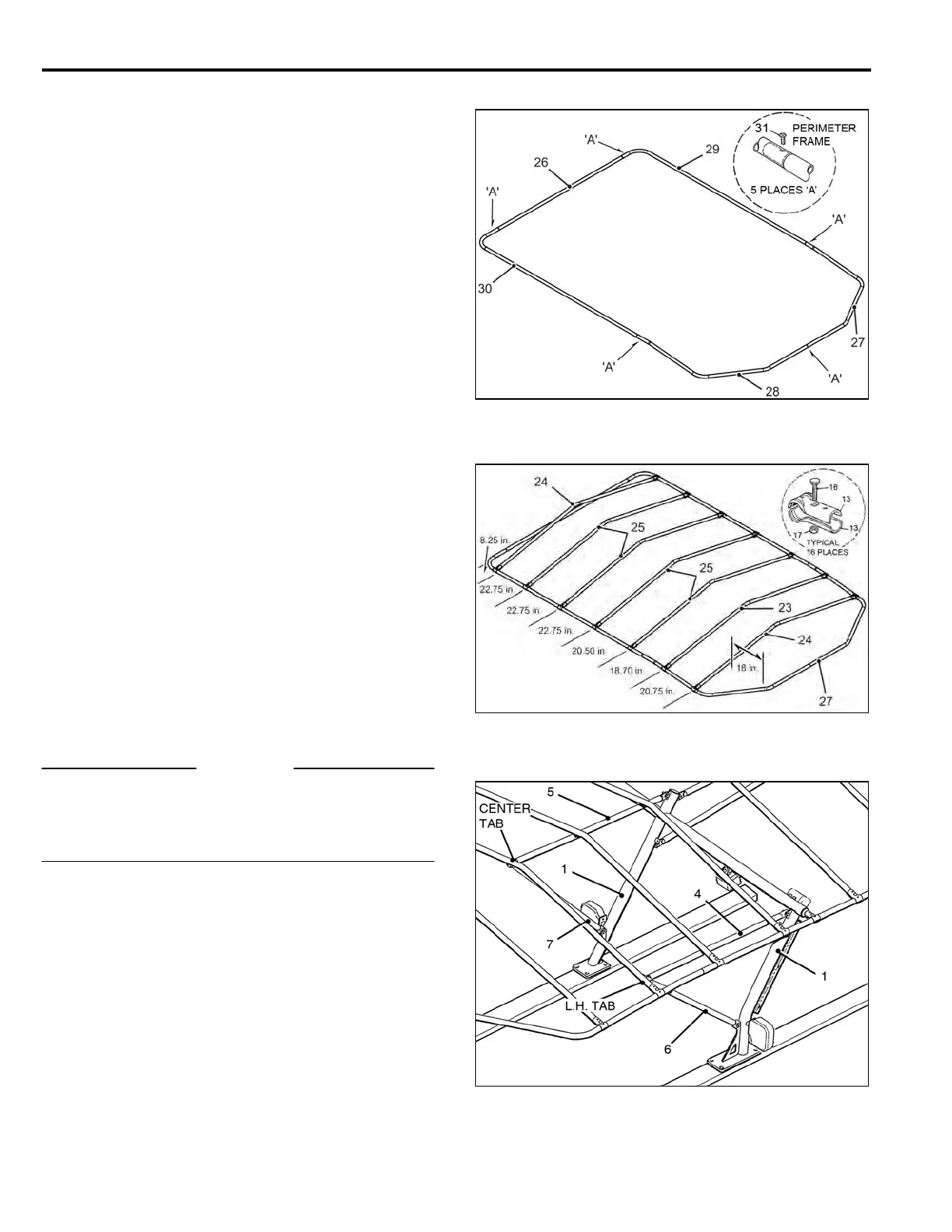

CANOPY FRAME ASSEMBLY
Perimeter Frame Assembly.
To assemble the Perimeter Frame:
• Identify the parts from the parts list. Lay them out
on a flat surface, and join the tubes together.
• Drill 1/16in pilot holes at the five joins ’A’, in the
tubes, and secure them with self tapping #10
Pan Hd. Screws (31).
Assembling the Cross Brace Tubes.
There are seven Cross Brace Tubes
• The Front and Rear Cross Braces (24), are
‘angled’ at 20 deg. (All other Cross Braces are
‘angled’ at 25deg.).
Brace Clamps (13), attach the Cross Braces to
the Perimeter Frame.(Carriage Bolts facing down).
• Position the front one 18 inches from the Front
Tube (27), of the Perimeter Frame.
Position the rear one 7 inches from the Rear
Tube (26), of the Perimeter Frame.
• Second Cross Brace (23), is painted ‘Red’. It has
one half of a Brace Clamp welded at each end.
Use one half of a Brace Clamp, to attach it to the
Perimeter Frame.
• Use Brace Clamps to fasten the remaining four
Cross Braces (25), to the Perimeter Frame, they
must be spaced as illustrated.
• Lift the assembled Canopy Frame onto the Canopy
Support (1), with the Perimeter Frame placed in
the halves of the Brace Clamps, (that are welded
to the Canopy Frame), secure in place with half
Brace Clamps.
IMPORTANT
Before tightening the Clamps, position the Canopy Frame
Assembly so that the measurement from the inside of the
Canopy Support Cross Tube to the inside of the Perimeter
Frame rear tube is 64 inches.
With one person supporting the Canopy Frame:
• With 7/16 x 1 ½ in. Bolts, Washers and Locknuts
attach the Front Support Tube (7), one end is
marked white, and the Front Spreader (5), (marked
green), to the center tab (marked white/green),
on the Cross Brace Tube (23).
Attach the other ends to the Canopy Support (1).
• With 7/6 x 1 ½ in. Bolts, Washers and Lock-nuts
attach the LH.Top Front Spreader (4), one end is
marked blue, and the Front Support Tube (6),
marked red, to the LH Tab on the Cross Brace (23).
Attach the other ends to the Canopy Support.
See following page for the fitting of the rear support tubes.
2-08
