ADJUSTMENTS
Cut-Off Clutch – Service.
The Cut-Off Clutch should be cleaned checked and
lubricated, every 50 to 100 hours, depending on the
operating conditions.

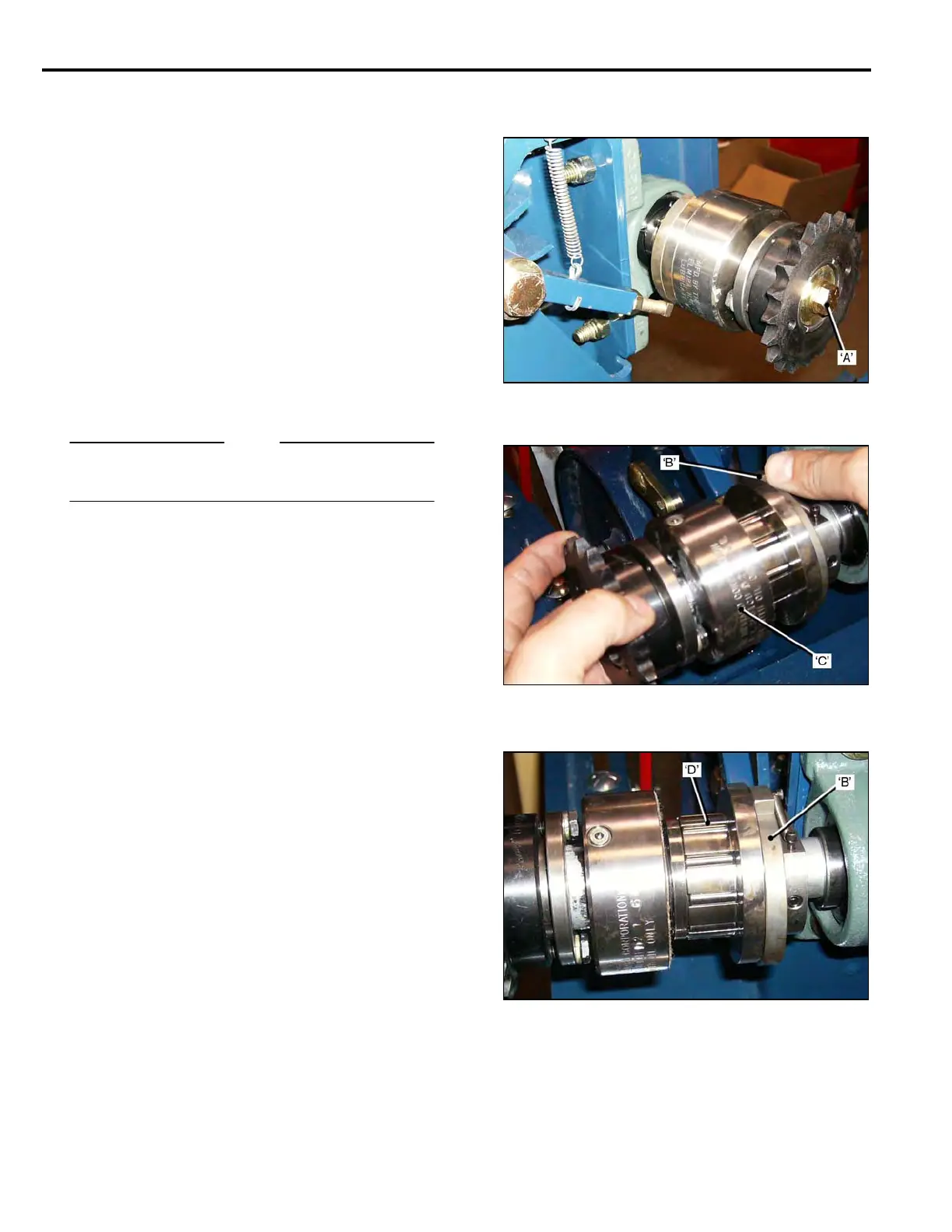

With the Chain Guard and Drive Chain removed:
• Remove the 3/8 x I in.Gr.8 Bolt ‘A’, and Washer.
• Rotate the Cam Ring ‘B’, to release the Clutch, and
slide the Sprocket and Drum Assembly ‘C’, off the
Cam Shaft.
• Thoroughly clean the assembly with penetrating oil.
Do not use water or solvents.
• Inspect the inside of the Drum for scoring, and the
Clutch Rollers ’D’, for wear or damage.
NOTE
If a new Clutch Assembly is fitted, remove the Sprocket
and Taper Lock, from the worn Clutch, for re-use.
• Lubricate the assembly liberally with penetrating oil.
Do not use heavy oil or grease, these will cause
the clutch to slip.
Re-assemble in the reverse order.
• Ensure that the Clutch Cam Ring ‘B’, is ‘free’ and
it returns completely to the engaged position.
Spray liberally with penetrating oil.
• Fit the Drive Chain, set the chain tension allow ¼ to
3/8 in. deflection, midway between the Sprockets.
Refit Chain Guard.
3-20
