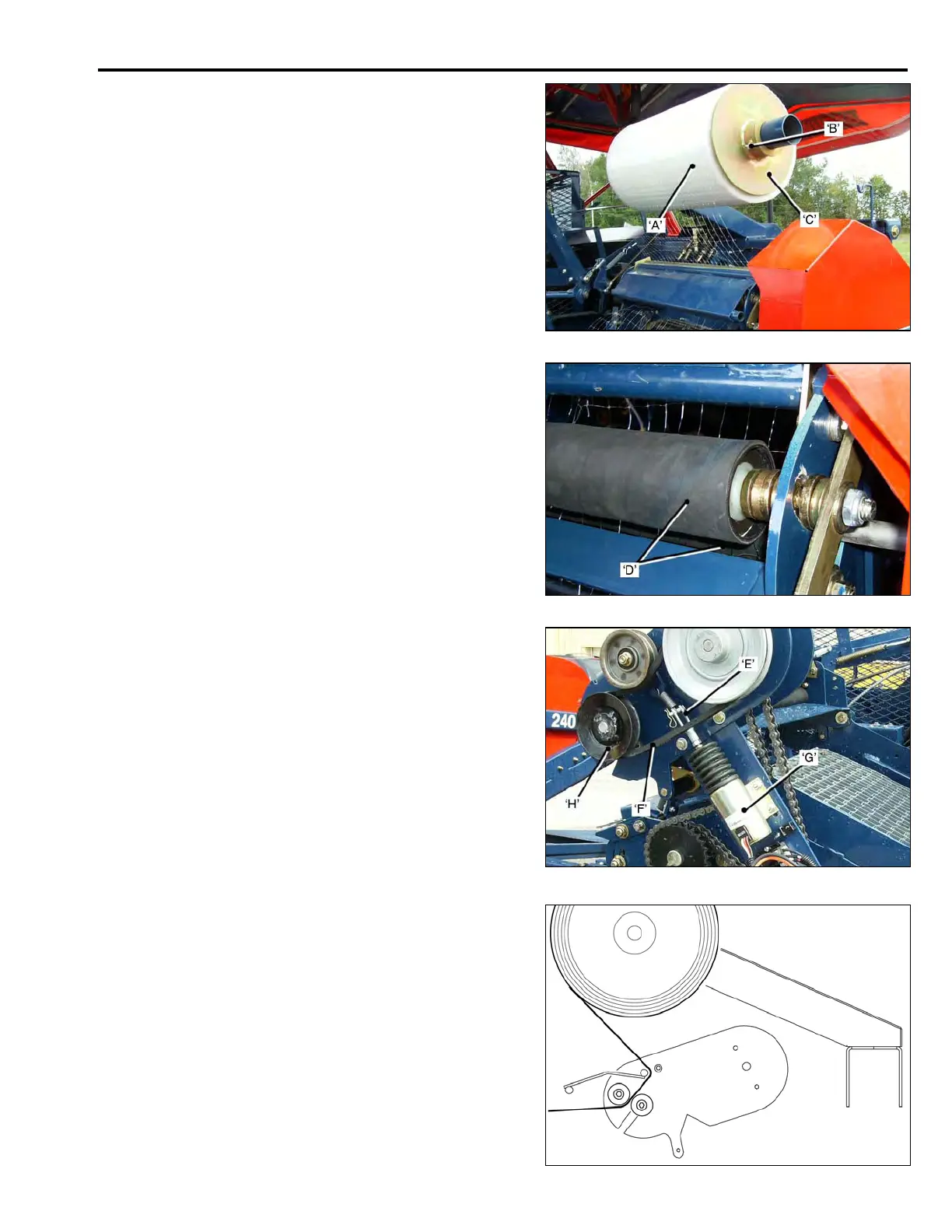

ADJUSTMENTS
Top Netting.
Top Netting Reel.
The Top Netting Reel ‘A’, must rotate freely on its
spindle, if not, the netting will tear as the sod roll
tries to pull it off the reel.
To install a new netting reel :
• Loosen the Lock-bolt B’, remove the outer
Netting Retainer ‘C’, slide the new netting
reel onto the spindle, fit the Netting Retainer
and tighten the Lock-bolt.
Top Netting Rollers.
The Top Netting Rollers ‘D’, must rotate easily ‘by hand’
to allow the netting to feed onto the turf roll, when the
Solenoid is not activated.
Initially the netting must be manually inserted into the
rollers.
Top Netting Roller Drive Solenoid.
• Adjust the Yoke ‘E’, so that the Drive Belt ‘F’, is
tightened when the Solenoid ‘G’ is activated.
This drives the Roller Shaft Pulley ‘H’.
• To allow the Rollers to turn freely, and the netting
to feed easily onto the roll of turf, the Belt must
be slack when the Solenoid is de-activated.
Top Netting Feed Path.
Before operating, the netting must be manually fed through
the Rollers as illustrated.
3-21
