MATRON-Light with 2250-M Field Guide, Page 5
1.2.3 Remove the microphone and preamplifier input stage from the Type 2250-M analyser by
gripping the locking collar located on the preamplifier at the top of your 2250-M. Slide
the spring-loaded locking collar back towards the microphone to release the preamplifier.

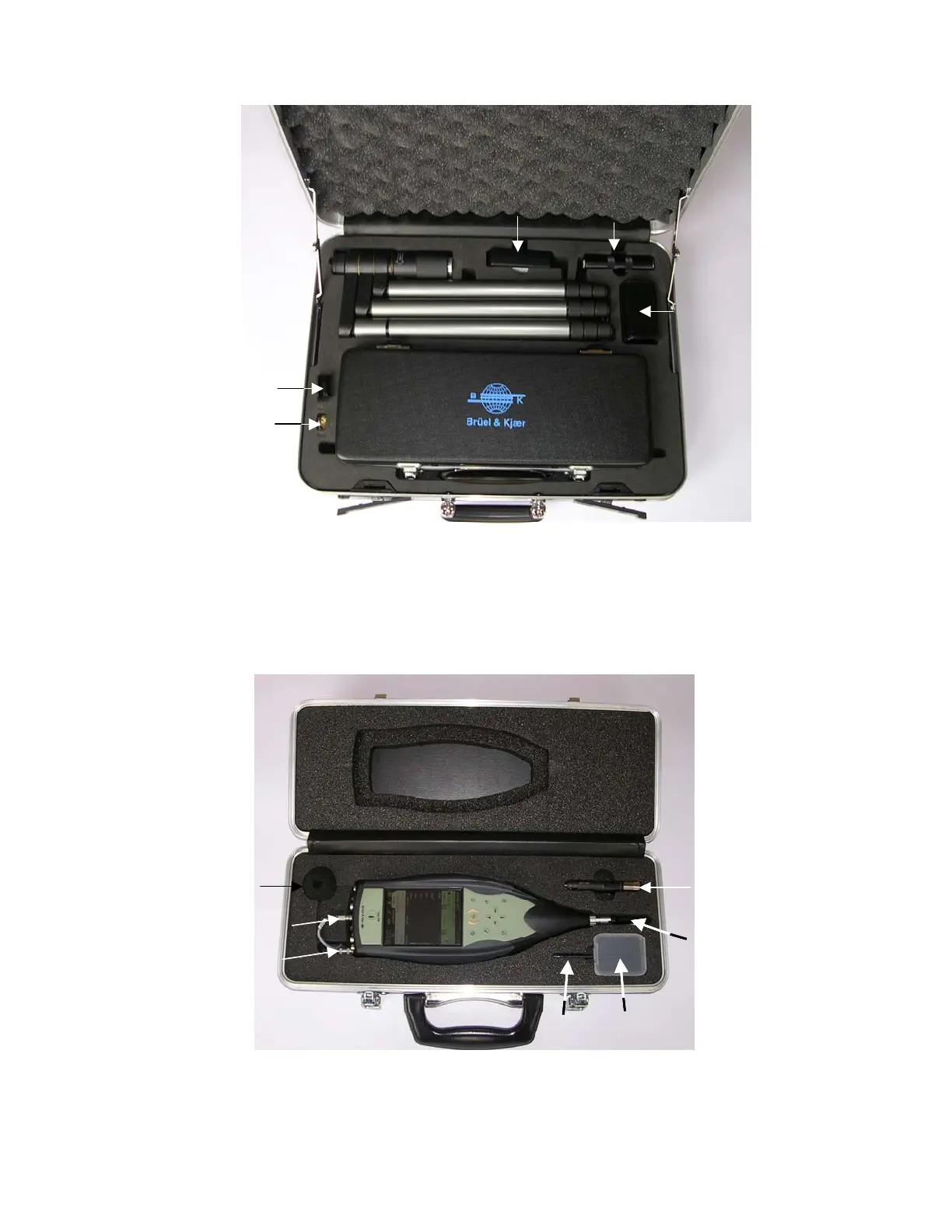

1.2.4 Open the inner case of your MATRON-Light. The locations of the components are shown
here:
1.2.5 You will now need to make the following connections:
Microphone &
preamplifier
Microphone
dust cover
Trigger input
Power input
Microphone
cable
Stylus
CF memory
card case
Microphone &
preamplifier
Microphone
dust cover
Trigger input
Power input
Microphone
cable
Stylus
CF memory
card case
Microphone &
preamplifier
Microphone
dust cover
Trigger input
Power input
Microphone
cable
Stylus
CF memory
card case
Lock for
inner case
Fold-flat Tripod Type
UA1251 with small
extension rod
MATRON-Light Inner
case Type KE-1016
Power supply
Type ZG-0426
Hand-switch
Type ZH-0666
Calibrator
Type 4231
MATRON-Light Outer
brief case Type KE-1015
Microphone
holder
Type UA-0588
Lock for
inner case
Fold-flat Tripod Type
UA1251 with small
extension rod
MATRON-Light Inner
case Type KE-1016
Power supply
Type ZG-0426
Hand-switch
Type ZH-0666
Calibrator
Type 4231
MATRON-Light Outer
brief case Type KE-1015
Microphone
holder
Type UA-0588
