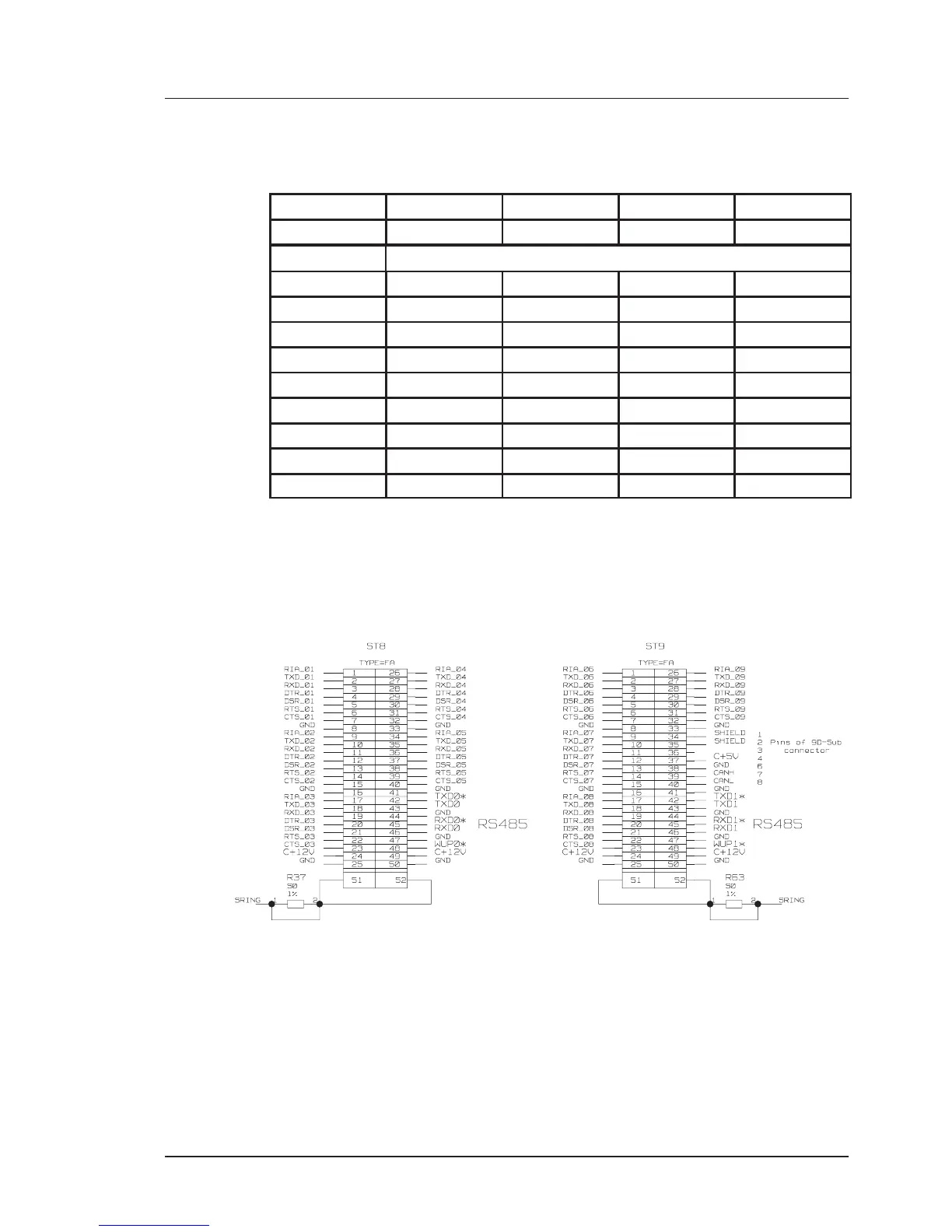

2. 10. Connectors and Signal Allocations
!
CU09/10 INDY O2 Terminal
Mini DIN–8 Mini DIN–8 D–SUB–9 D–SUB–25
Shield housing housing housing 1
DTR 1 5
CTS 2 6 7 20
TxD 3 5 2 3
GND 4 4 5 7
RxD 5 3 3 2
RTS 6 2 8 6
DCD 7 4
GND 8
CU09 ST8/ST9 ”tty01,...,tty09,tty10,tty20” RS232–Connector
" !
