7
&" #"! !$! #
(98/12/10)

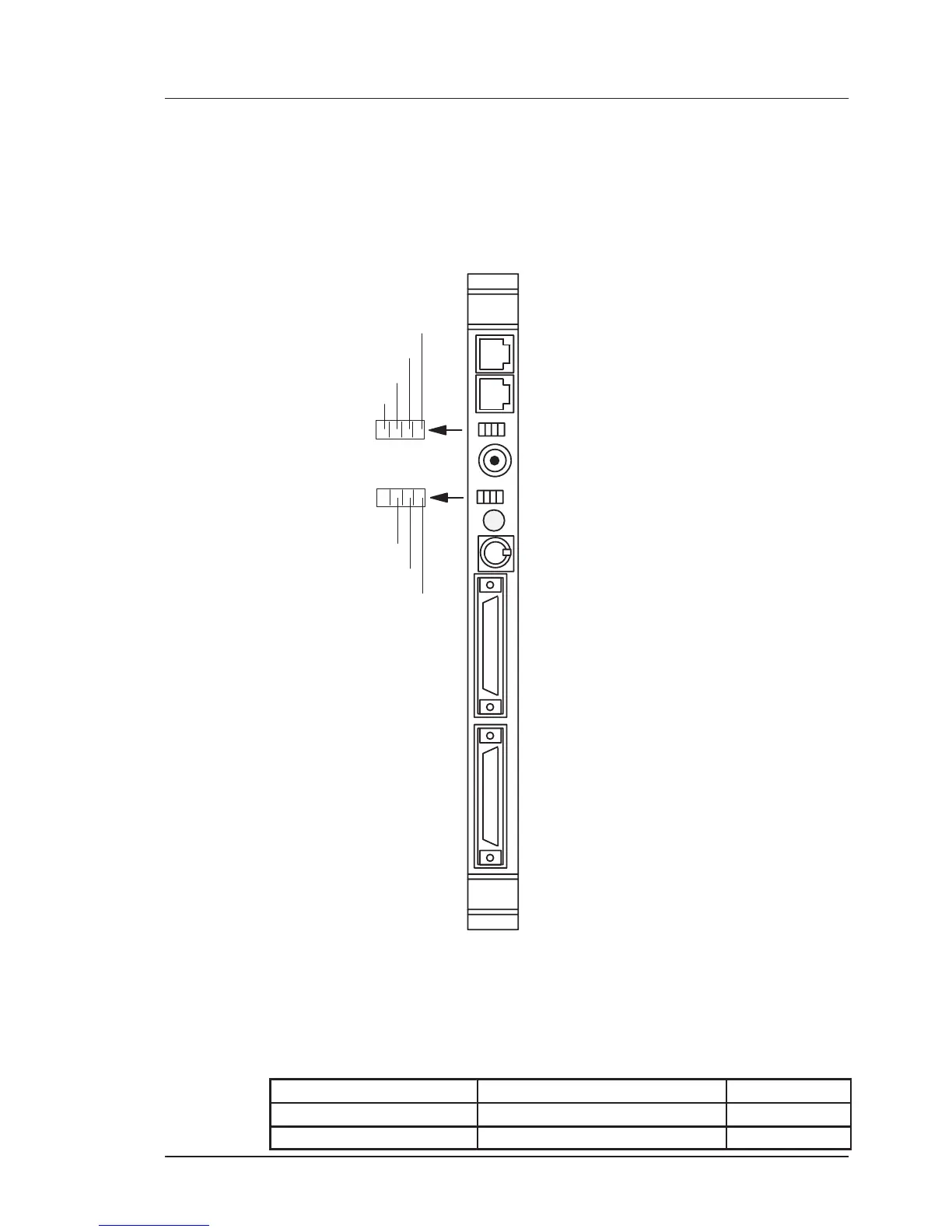

CU10 Front View
Figure 2: CU10 Controls at Front Panel
CU10 Front Panel
Fast Ethernet connector RJ-45
10Base2 (Thin Wire) BNC connector
Reset Button
RS232 console Mini D-8
Activity LED's
TTY01-TTY05
TTY06-TTY09
10/100 BASE-T
Fast Ethernet Status LED's
to Hub's
Fast Ethernet connector RJ-45
to Host
VME access
Memory access
10Base2 Ethernet activity
Collision occurence
Good Link status
Receive activity
Transmit activity
CU10
ECL
Note: TTY10 and TTY20 are available on the AQS backplane X3 connector.
2. 5. Part numbers of AQX CU09 P/N H2570
Table 3: Table of CU09 Assembly Groups
AQX_CCU Assembled PCB H5832
PCB Layout H3P2160 Plain PCB H5833
