Technical Data MS 400‘54 Ascend
Top view

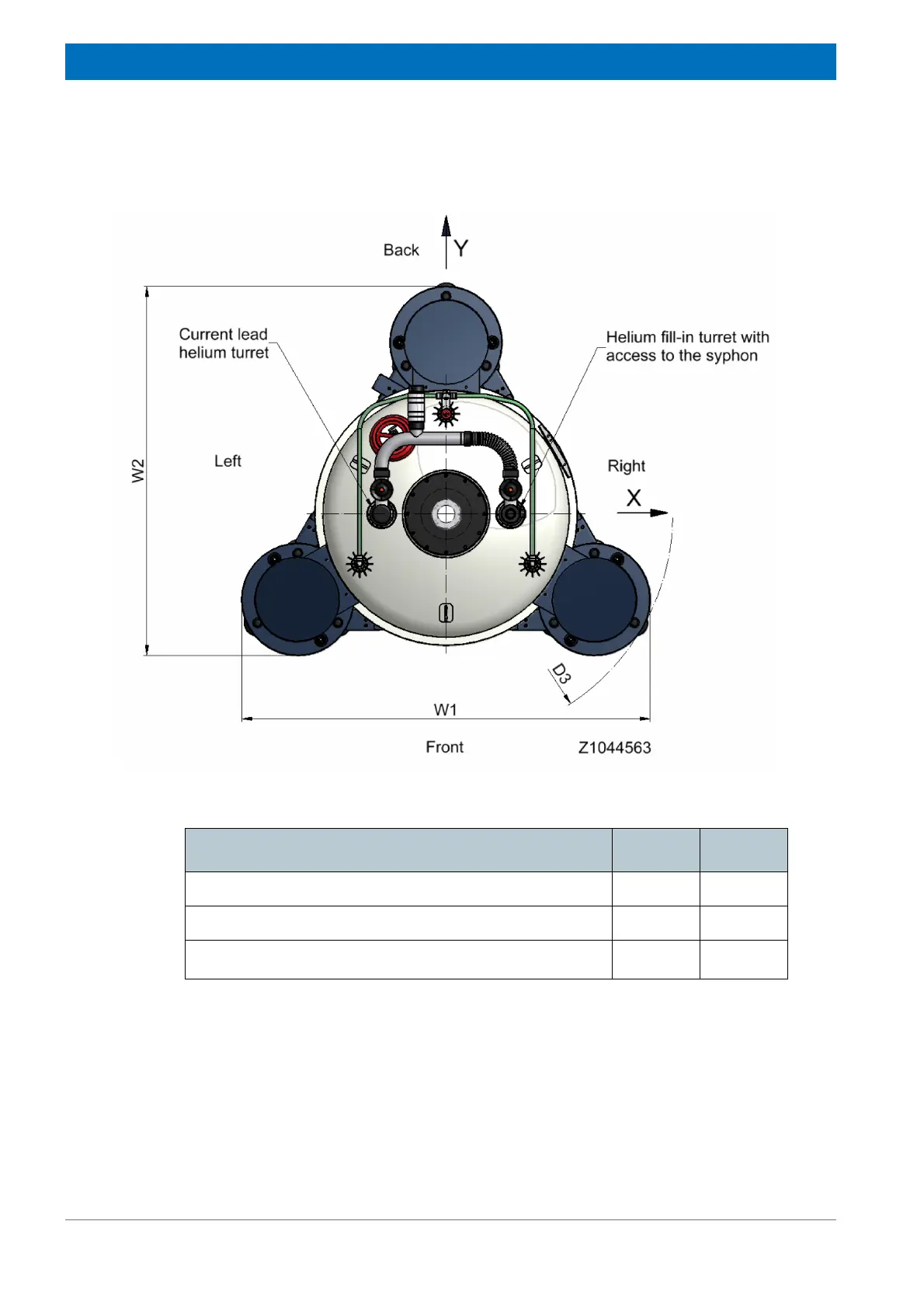

Figure A.2: Dimension Cryostat - Top View
Dimensions Cryostat Value Unit
W1 1020 mm
W2 971 mm
D3
1
1. Keep at least an additional free space of 1.5 m around the magnet system for service.
1146 mm
Table A.3: Dimensions Cryostat - Top View
