26
CONFIGURING AND CALIBRATING THE PROFILER

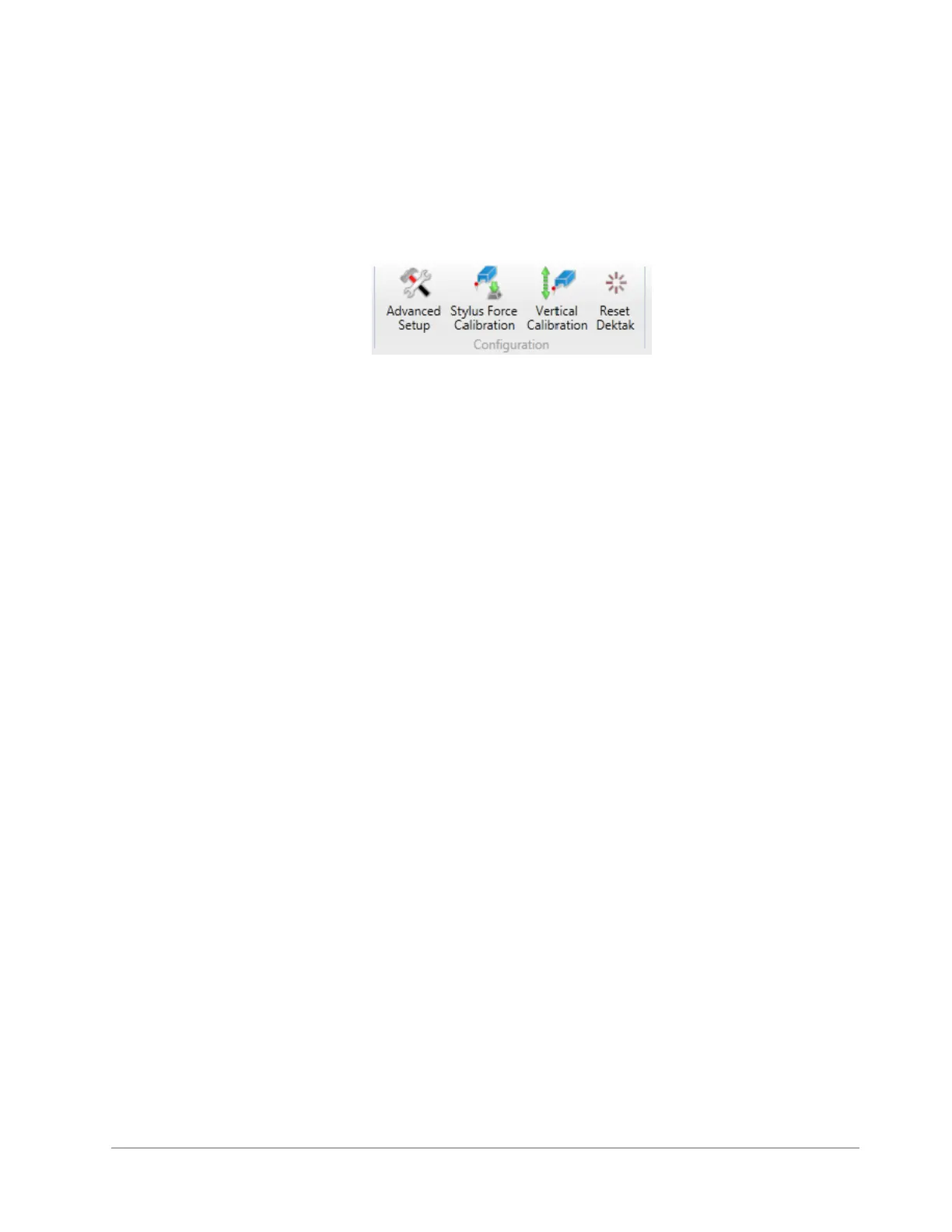

On the Instrument tab of the Ribbon in Vision64, click one of the following icons to open its
associated dialog box. For instructions on making the settings in each dialog box, see the DektakXT
User Manual and the DektakXT online Help.
GENERAL CARE AND MAINTENANCE
Follow these guidelines:
• Do not use lubricants on the stage leadscrews.
• Always position the sample so that the stylus is the only part of the stylus assembly that touches
the sample.
• Keep the environmental enclosure door closed both when the DektakXT system is in use and
when it is not.
• Never connect or disconnect any cables when the power is on.
• Do not lower the tower without the stage assembly in place.
• Do not move a sample during a scan measurement.
• Avoid vibration and shock during measurements. For example, ensure that an operator does not
bump a surface close to the profiler or the profiler itself during a measurement.
• Always raise the tower to the maximum vertical position when the system is not in use.
