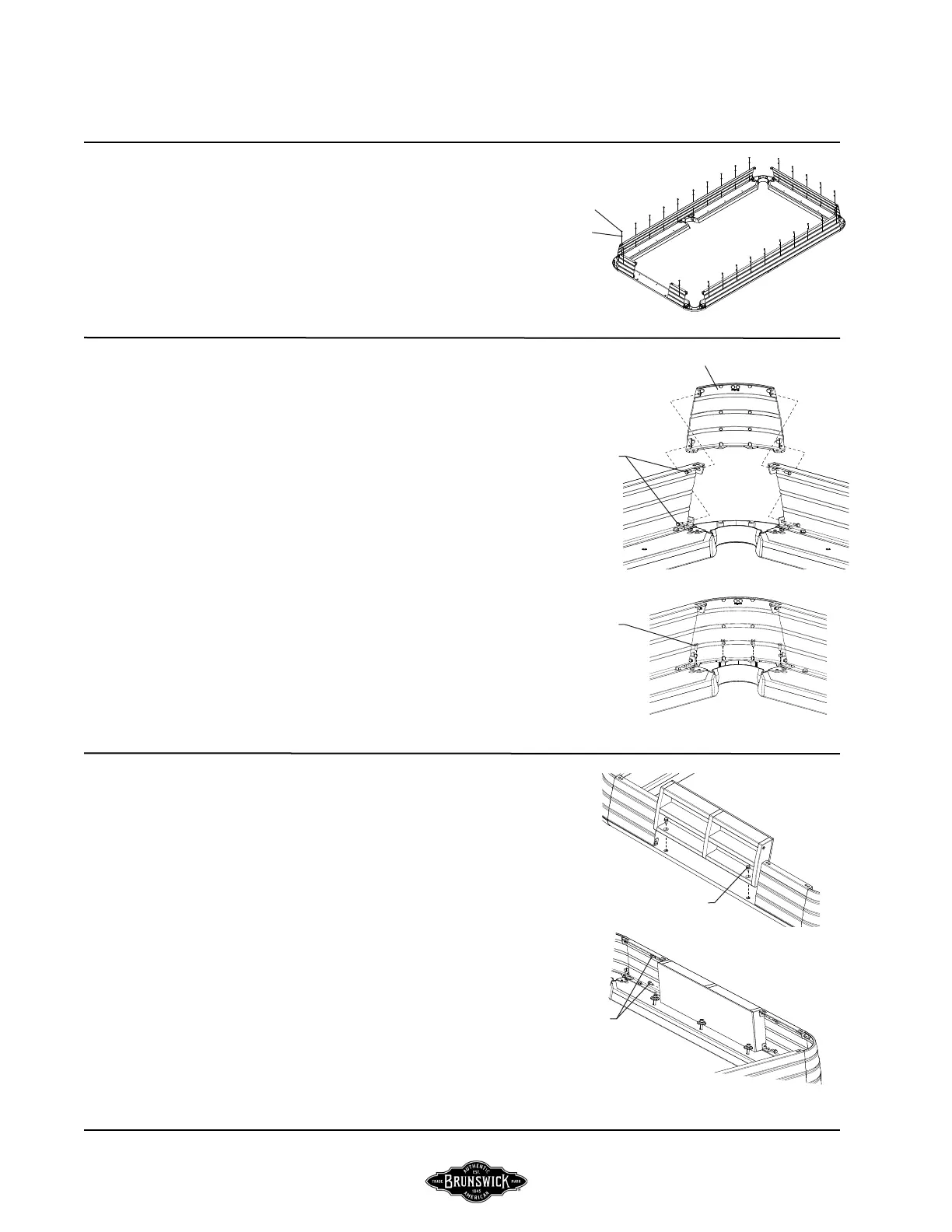

PAGE 12BRUNSWICK INSTALLATION MANUAL
APRONS, APRON CORNERS AND
BALL STORAGE RACK ASSEMBLY
Step #1: With the rail assembly in the upside down position, place
two side apron assemblies, one head end apron assembly and one
foot end apron assemblies upside down in position on top of the rail
assembly. Using 1/4-20 x 3/4” hex head bolts and 1/4 at washers,
loosely start fasteners through apron ange, into threaded inserts in
bottom surface of the rails.
FIGURE TWO
Step #2: Loosely attach four apron corner castings to four corner pocket
castings using #10 x 3/4” hex ange head cap screws.
FIGURE THREE
Step #4: Loosely attach the ball storage rack to the foot end rail using
two 1/4-20 x 3/4” hex head bolts.
Step #5: Connect the end of each foot apron to the ball storage rack
using two 1/4-20 x 3/4” hex head bolts. Align each apron end with
front prole of ball storage rack and tighten all fasteners.
FIGURE TWO
#10 x 3/4 HEX FLANGE
HEAD CAP SCREW
APRON CORNER CASTING
CENTENNIAL
#10 x 3/4 HEX FLANGE
HEAD CAP SCREW
Step #3: Loosely connect each apron end to four apron corner castings
using #10 x 5/8” hex ange head cap screw. Properly align apron with
apron corner casting exterior surfaces and tighten fasteners securely.
#1/4-20 x 3/4 HEX HEAD BOLT
#1/4-20 x 3/4 HEX HEAD BOLT
5/16-18 x 2 HEX
HEAD SCREW
5/16 WASHER
