FIGURE ONE
FIGURE ONE

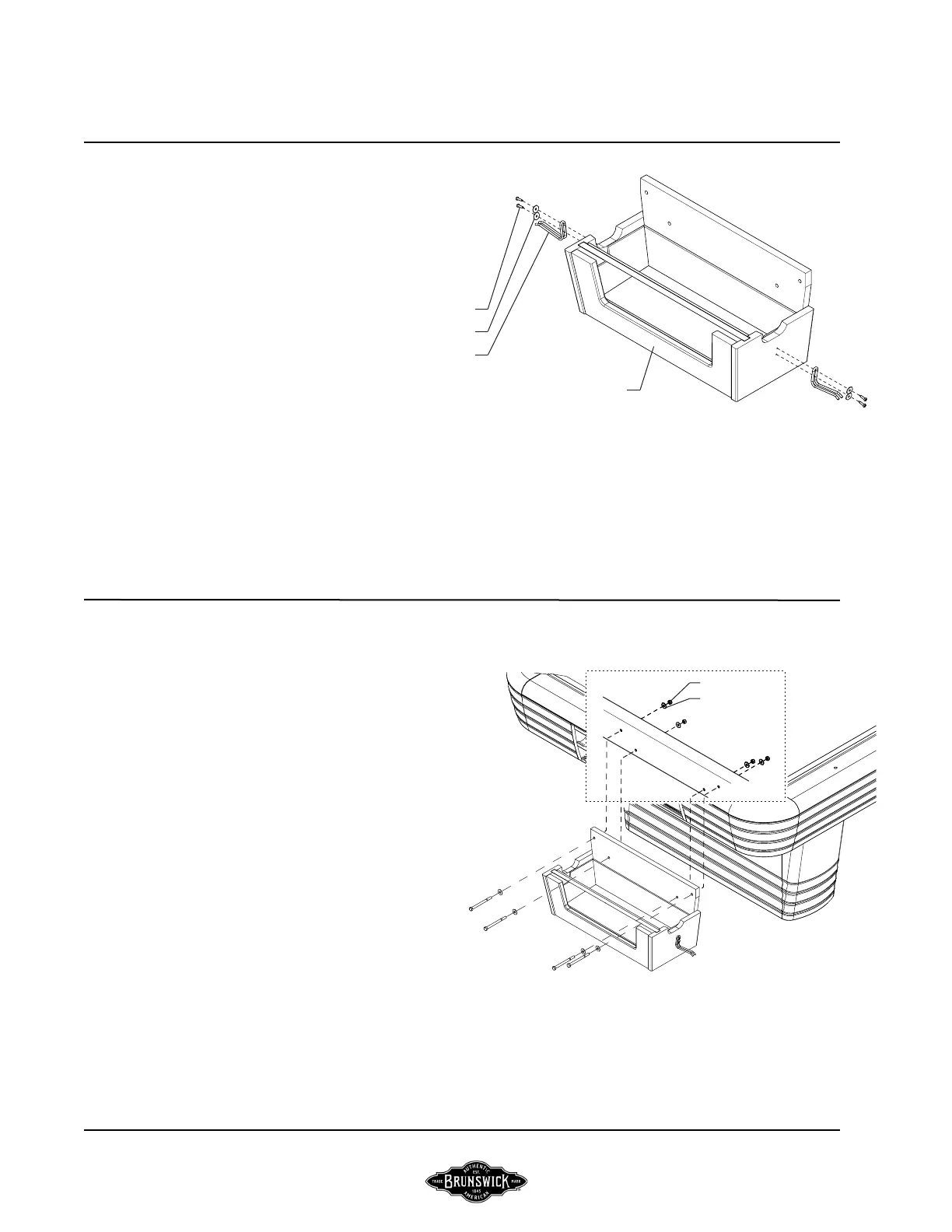

PAGE 16BRUNSWICK INSTALLATION MANUAL
GULLY VERSION ASSEMBLY
Step #1: Attach two triangle racks to each end of the receiver box
assembly using #8 x 3/4 pan head screws and #8 at fender washer.
Attach utilizing the pre-drilled pilot holes in the end sill. After initial
attachment, hang eight and nine ball racks, if available, and adjust
racks as needed vertically.
FIGURE TWO
Step #2: Align and attach the receiver box assembly using 5/16-18 x 4”
hex head bolt, at washers and 5/16-18 hex nuts.
FIGURE TWO
RECEIVER BOX
#8 x 3/4 PAN HEAD SCREW
#8 WASHER
TRIANGLE RACKS
5/16-18 x 4 HEX HEAD BOLT
FLAT WASHER
5/16 HEX NUT
FLAT WASHER
CENTENNIAL
