ATTACHING RAIL CLOTH
BRUNSWICK INSTALLATION MANUALPAGE 9
CORNER POCKET
FIGURE ONE

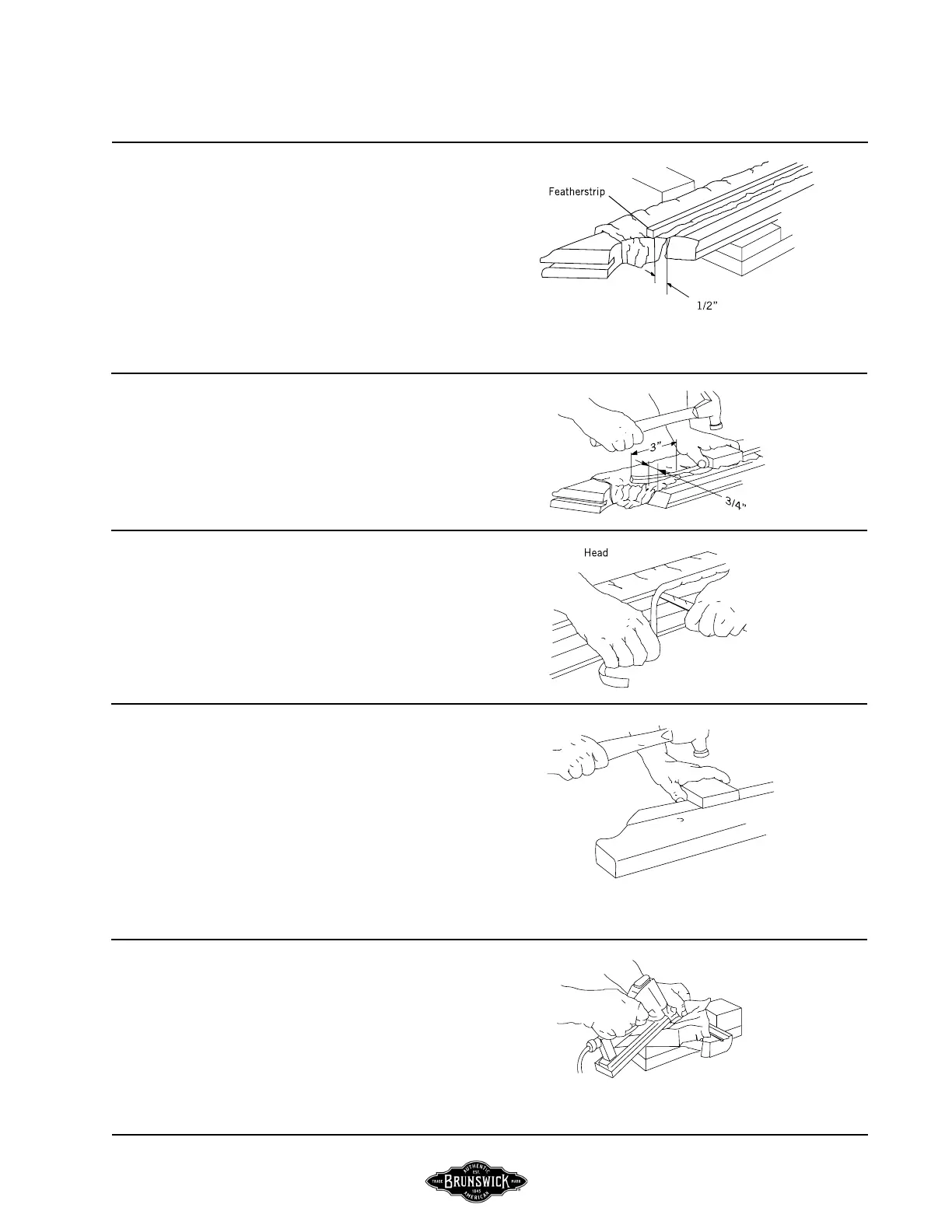

Step #1: Place cloth on rail with the back side down. The
cloth should have equal amount of overhang at both ends
of rail and extend 1/2” over the featherstrip groove on the
cushion side as shown.
Step #2: Except for approximately 3” at end of rail, tap feath-
erstrip down with a tapping block and hammer, starting at
center of rail. Stretch cloth tightly toward each end of rail
and tap featherstrip down.
FIGURE ONE
FIGURE TWO
Step #3: At each end of rail, pull the cloth toward the rubber
cushion an additional 3/4”. Then tap remainder of feather-
strip down.
FIGURE TWO
FIGURE THREE
Step #4: Trim the cloth on cushion side of featherstrip along
the total length of featherstrip as illustrated.
FIGURE THREE
FIGURE FOUR
Step #5: Fold the cloth down over front of rail, then using
thumb and forenger as a guide along front edge of the
cushion to keep the tapping block at rear edge of feath-
erstrip, tap the featherstrip down ush with rail surface as
shown
NOTE: Never try to tap a featherstrip ush with just a hammer as
you will surely dent the rail surface behind the featherstrip.
FIGURE FOUR
FIGURE FIVE
Step #6: Turn rail over and at corner pockets fold the cloth
over the mitred edge as shown, stretching tightly and
working out any wrinkles as you staple three places in area
shown.
FIGURE FIVE
