PAGE 14BRUNSWICK INSTALLATION MANUAL
POCKET, STORAGE BOX, TRIANGLE RACKS,
BRIDGE RACK AND BED SPOT ASSEMBLY

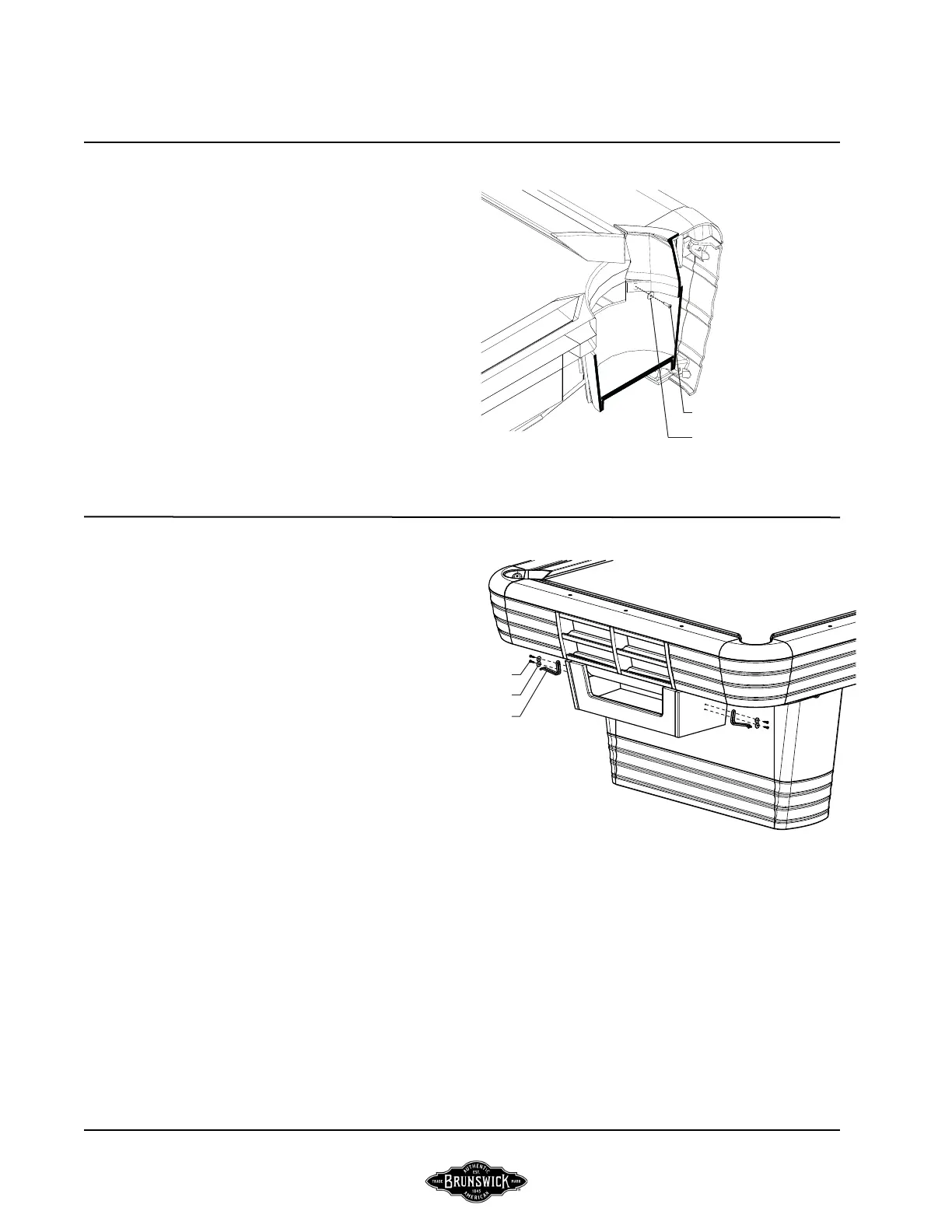

Step #1: Install and fasten four corner pockets and two side pockets
into their respective pocket castings using #10-24 x 5/8 socket head
machine screw and #10 external tooth washer.
FIGURE TWO
Step #4: Attach two triangle racks to the foot and end sill of the base
frame using #8 x 3/4 pan head screws and #8 at fender washer.
Attach utilizing the pre-drilled pilot holes in the end sill. After initial
attachment, hang eight and nine ball racks, if available, and adjust
racks as needed vertically.
CENTENNIAL
#10 EXTERNAL TOOTH WASHER
#10-24 x 5/8 SOCKET HEAD SCREW
#8 x 3/4 PAN HEAD SCREW
#8 WASHER
TRIANGLE RACKS
