19

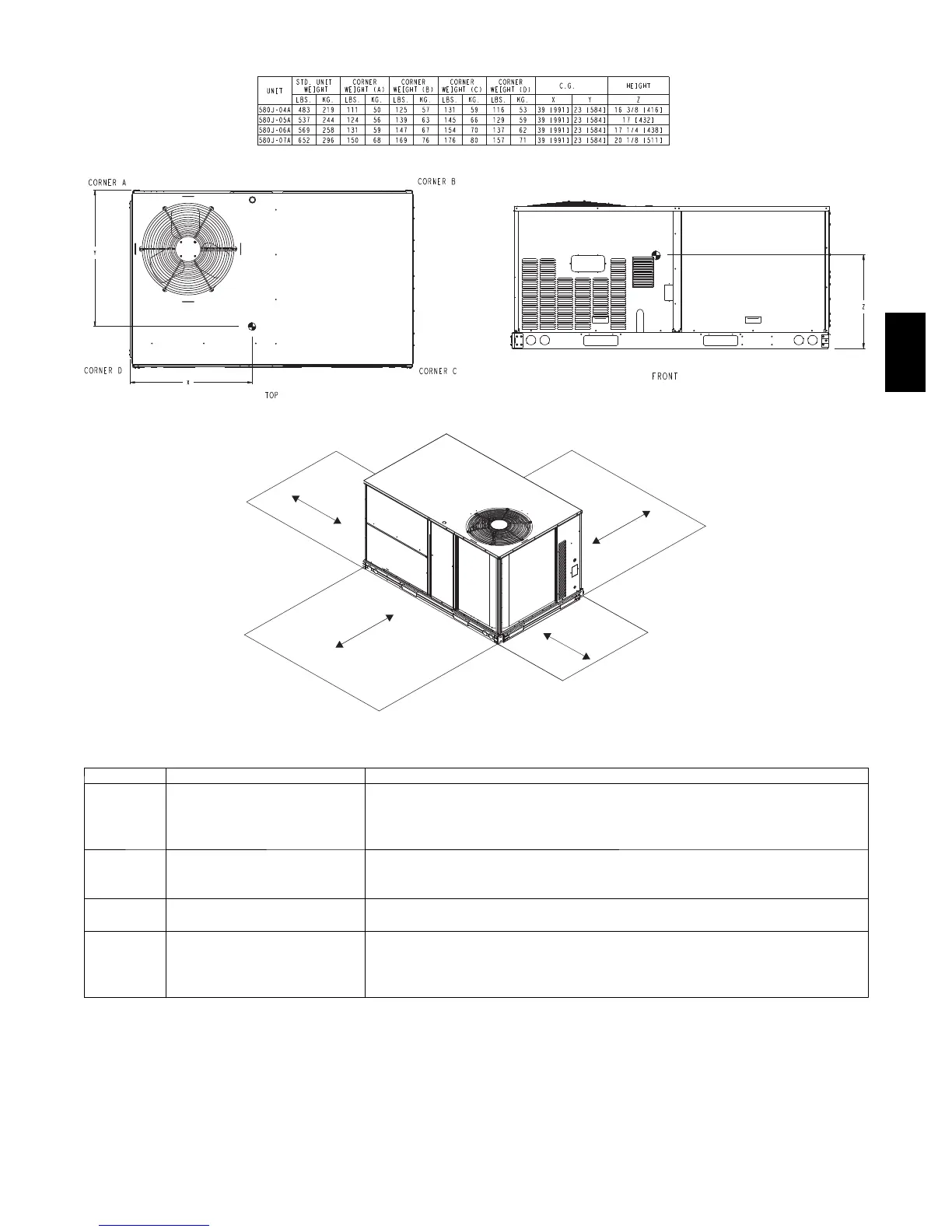

CURBS & WEIGHTS DIMENSIONS -- 580J 04--07 (cont.)
C101226
Fig. 2 -- Dimensions 580J 04--07
C
B
A
D
C08337
Fig. 3 -- Service Clearance
LOC DIMENSION CONDITION
A
48---in (1219 mm) Unit disconnect is mounted on panel
18---in (457 mm) No disconnect, convenience outlet option
18---in (457 mm) Recommended service clearance
12---in (305 mm) Minimum clearance
B
42---in (1067 mm) Surface behind servicer is grounded (e.g., metal, masonry wall)
36---in (914 mm) Surface behind servicer is electrically non--- conductive (e.g., wood, fiberglass)
Special Check for sources of flue products within 10--- ft of unit fresh air intake hood
C
36---in (914 mm) Side condensate drain is used
18---in (457 mm) Minimum clearance
D
48---in (1219 mm) No flue discharge accessory installed, surface is combustible material
42---in (1067 mm) Surface behind servicer is grounded (e.g., metal, masonry wall, another unit)
36---in (914 mm) Surface behind servicer is electrically non--- conductive (e.g., wood, fiberglass)
Special Check for adjacent units or building fresh air intakes within 10--- ft of this unit’s flue outlet
580J
