SP3 IDLE SCREEN EXPLANATIONS Page 2 of 3

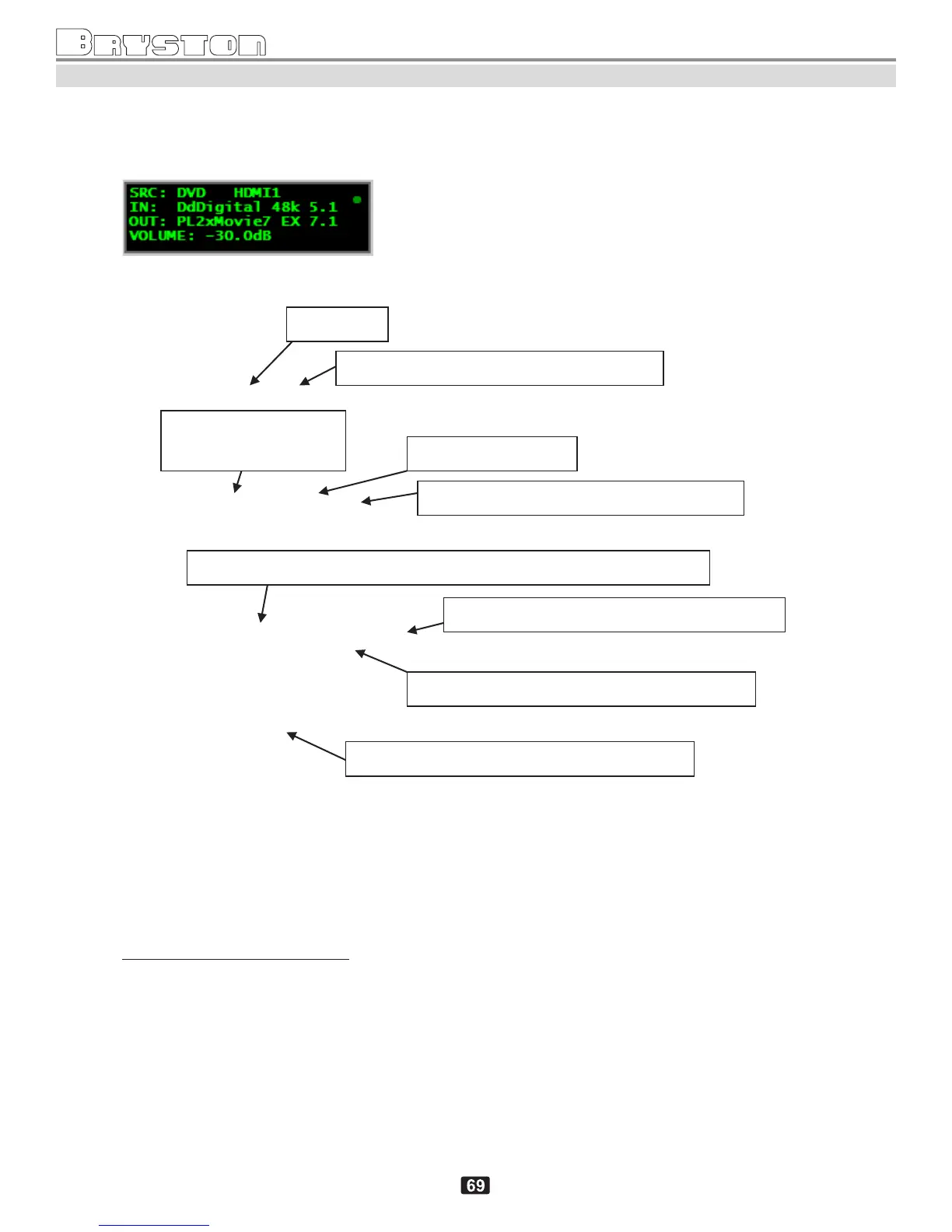

2. Default screen, playing HDMI input, Dolby Digital encoded multi-channel stream,
example 2
3
:
Line1: SRC: DVD HDMI1
Line2: IN: Dd Digital 48k 5.1
Line3: OUT: PL2xMovie7 EX
4
7.1
Line4: VOLUME: -30.0dB
3
Playing multichannel (5.1) source from DVD disk, through HDMI. Listening setup consists of 8
speakers (2 front, 2 surround, 2 back and 1 subwoofer).
4
Indicates Dolby Pro Logic EX algorithm for back channels re-creation. Capital “EX” lettering indicates
that the back channel re-creation is being forced upon any 5.1 channel source even in the absence of the
Dolby back channel enabling flag (YBSE – “Yes Back Surr Encoded”). This forcing feature is governed
by SOURCE SETUPDOLBYEX APPLY=FORCE . Note: EX APPLY=AUTO would reproduce
back speakers only when YBSE flag is present in the source stream., in such a cese lower case “ex” would
show.
Source
Input type (HDMI input socket #1)
Program encoding
Dolby Digital
Sample rate (kHz)
Program format (numspeakers.lfe)
Back channel re-creation mode: 5.17.1 “Movie7” (Dolby only)
Listening format (numspeakers.subwoof)
Output volume control (level in dB)
Dolby Pro Logic EX is on (back speakers)
APPENDIX M: SP3 IDLE SCREEN EXPLANATIONS continued
