Operation
38/45 ekr 500 digital Unit Touch – Master-Slave Guiding with Sensor Positioner

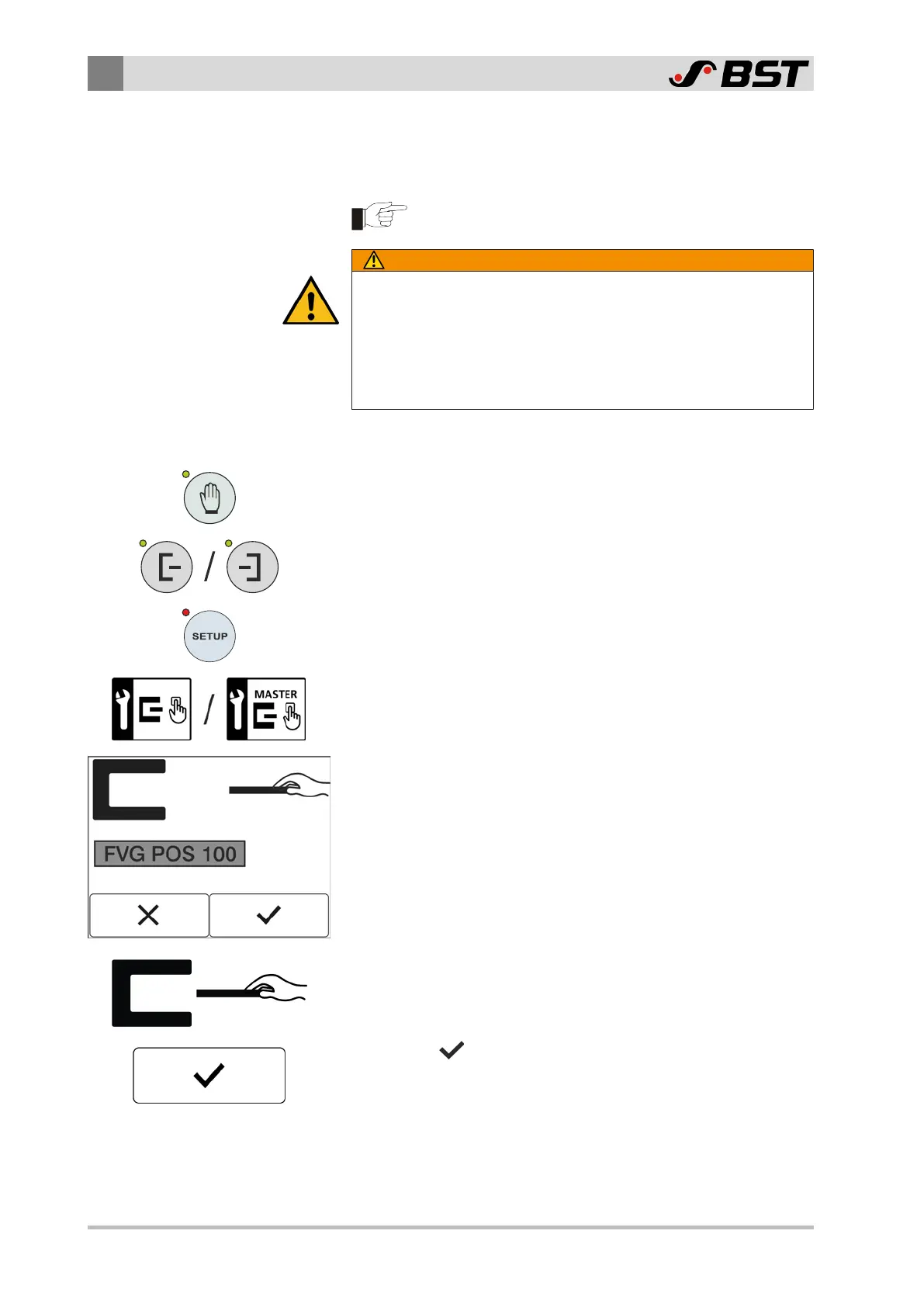

7.4.6 Manual Material Setup
This chapter describes the procedure for saving the bright / dark
values with critical contrasts.
You have to perform the material setup for each edge
sensor separately.
WARNING
Danger of cutting on sharp edges of the material web!
Severe cutting injuries caused by the edges of the moving material
web.
►
Never touch the edges of moving material webs.
►
Carry out the material setup only when the production machine
is stationary.
1. Remove any material that may be present from the connected
edge sensors and clean the sensor scanning areas.
2. Press the Manual mode key.
The LED of the key will illuminate.
The controller switches to manual mode.
3. Select the desired sensor by pressing the respective key on the
controller.
The LED of the key will illuminate.
4. Press the SETUP key.
The controller changes to setup mode.
The first page of the setup menu will be displayed on the screen.
5. Select the manual material setup for the SLAVE or MASTER web
by tapping the corresponding button in the setup menu (see
Activating the Material Setup, page 36).
The screen display shows the operating step necessary for gen-
erating the bright value for the selected sensor (Sensor 1 here).
6. Completely clear the selected sensor's scanning area (no ma-
terial in the scanning area).
The bright value measured is displayed.
7. Press the button.
The bright value will be saved.
