Wiring Diagrams
A
ekr 500 digital Unit Touch – Master-Slave Guiding with Sensor Positioner 43/45
A2 Master-Slave Guiding (Web Edge/Web Center-line Guiding)
Extension cable
2 m (131 993)
5 m (131 994)
10 m (131 995)
Connecting cable
3 m (118 447)
5 m (118 448)
10 m (118 449)
Control panel
ekr commander
Controller
ekr 500 digital Unit Touch
MASTER web
(unguided)
SLAVE web
(guided)
Sensor Positioner
Guiding
device
Actuator
Sensor 3
Sensor 1 Sensor 2
Sensor 4
Connector assignment
with four edge sensors
ekr commander: X101
Sensor 1: X102
Sensor 2: X103
Sensor 3: X100
Sensor 4: X104
Cable tail
0.37 m (243 956)

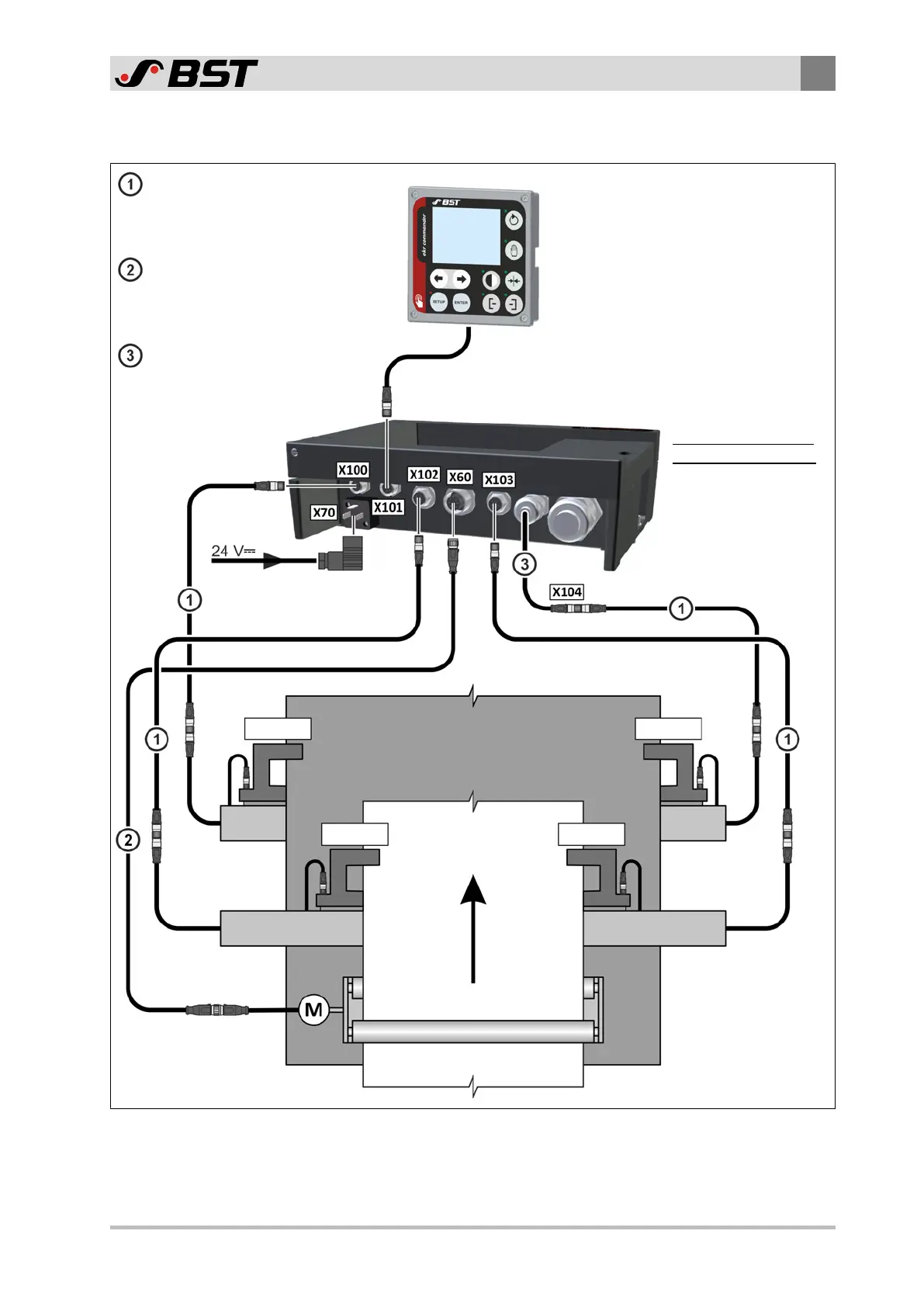

Fig.16: Wiring diagram for master-slave guiding with four edge sensors (web edge/web center-line guiding)
