Electrical Connection

16/45 ekr 500 digital Unit Touch – Master-Slave Guiding with Sensor Positioner

5.3.1.2 Guiding to the Right Web Edge

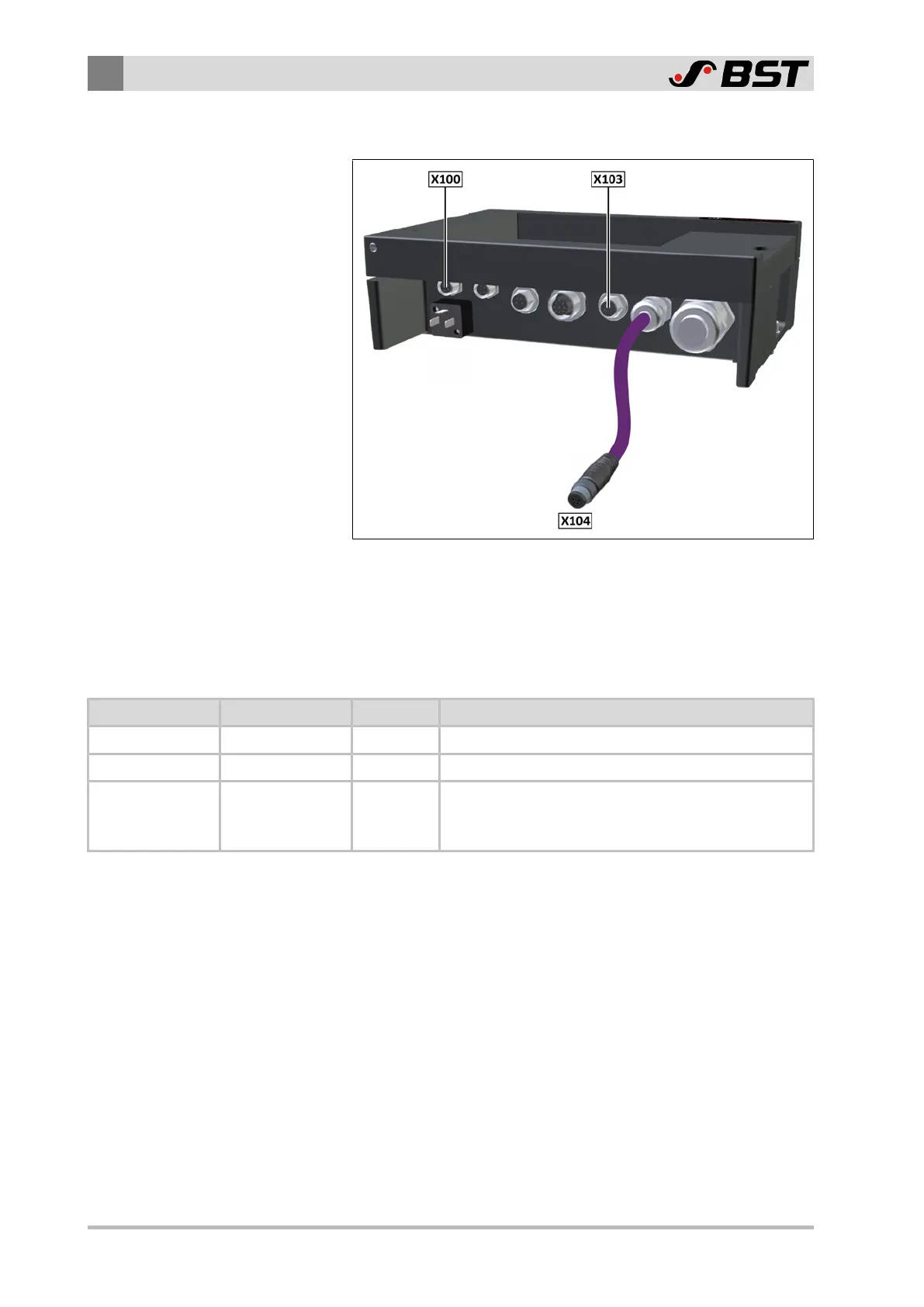

Fig.3: Controller with optional cable tail for the connection of sensor 4

With this Master-Slave Guiding version the controller is factory

equipped with an additional cable tail. The edge sensor 4 is con-

nected to connector socket X104 of the cable tail.

Connector Assignment

Component Web of Material Connector Remark

ekrcommander X100

Sensor2 SLAVE web X103

Sensor4 MASTER web X104

Leads to terminal strip X12 in the controller (see

Terminal Assignment of Terminal Strip X12

(Connection Sensor 4), page 18).
