Electrical Connection

ekr 500 digital Unit Touch – Master-Slave Guiding with Sensor Positioner 17/45

5.3.2 Master-Slave Guiding with Four Edge Sensors

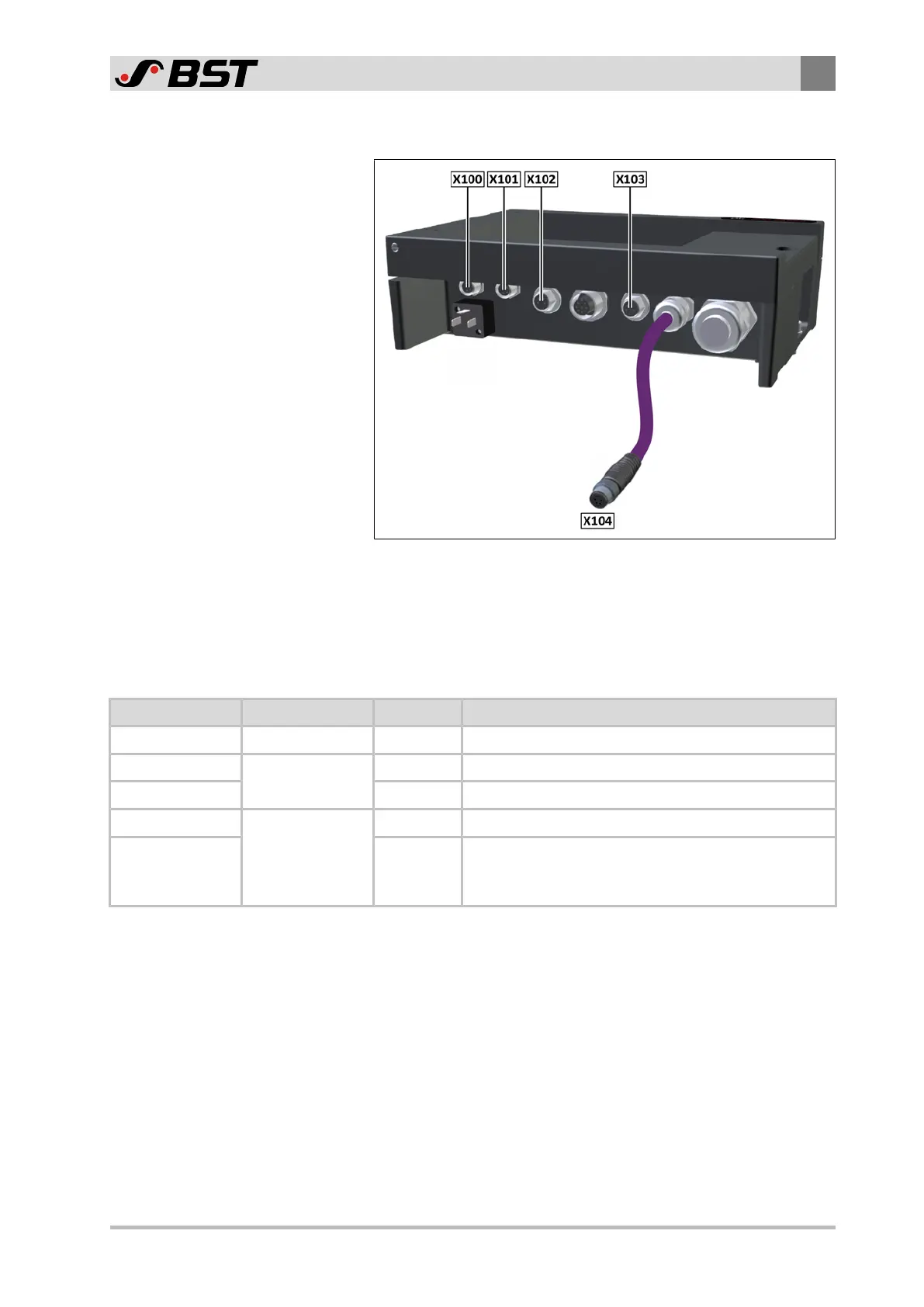

Fig.4: Controller with optional cable tail for the connection of sensor 4

With this Master-Slave Guiding version the controller is factory

equipped with an additional cable tail. The edge sensor 4 is con-

nected to connector socket X104 of the cable tail.

Connector Assignment

Component Web of Material Connector Remark

ekrcommander X101

Sensor1

SLAVE web

X102

Sensor2 X103

Sensor3

MASTER web

X100

Sensor4 X104

Leads to terminal strip X12 in the controller (see

Terminal Assignment of Terminal Strip X12

(Connection Sensor 4), page 18).
