Manual EVOTOUCH v.5 63 / 104

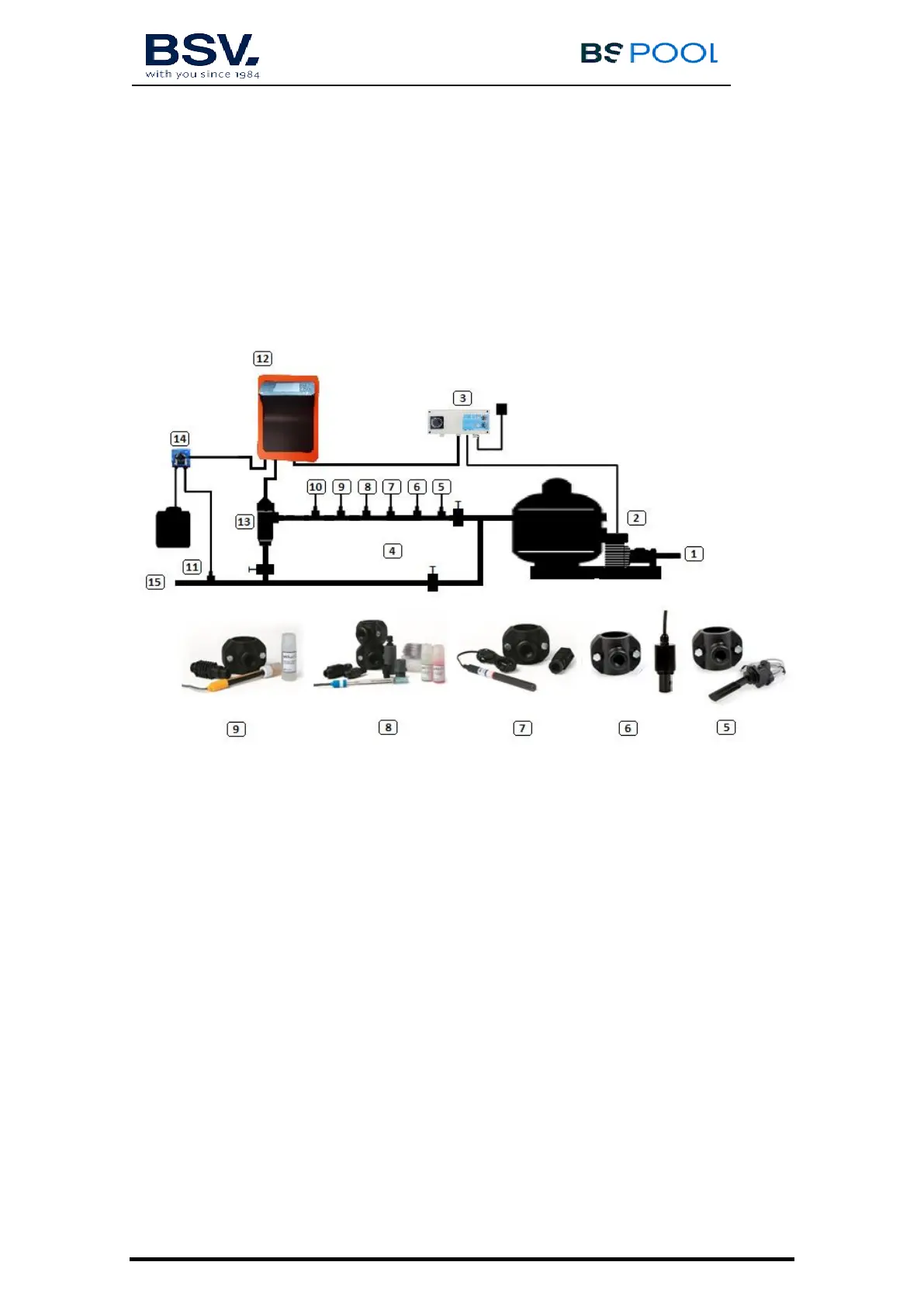

3.2- Hydraulic connection diagram
3.2.1- EVOTOUCH Series Equipment
1. From the swimming pool.
2. Filtration
3. Electrical Panel
4. Bypass
5. Flow Switch (optional)
6. Conductivity probe (optional)
7. Temperature probe (optional)
8. pH probe, included in AUTO kit (optional)
9. Redox probe, included in ADVANCED kit (optional)
10. Ground kit (optional)
11. Acid injector. Keep it away from equipment
12. EVOTOUCH chlorinator
13. Electrolysis cell
14. pH pump
15. Pipe to swimming pool.
