3.2.2- AUTO kit
The AUTO kit (pH measure and regulation) can be added to any EVOTOUCH
series. The following pictures show the parts of the kit and installation diagram.

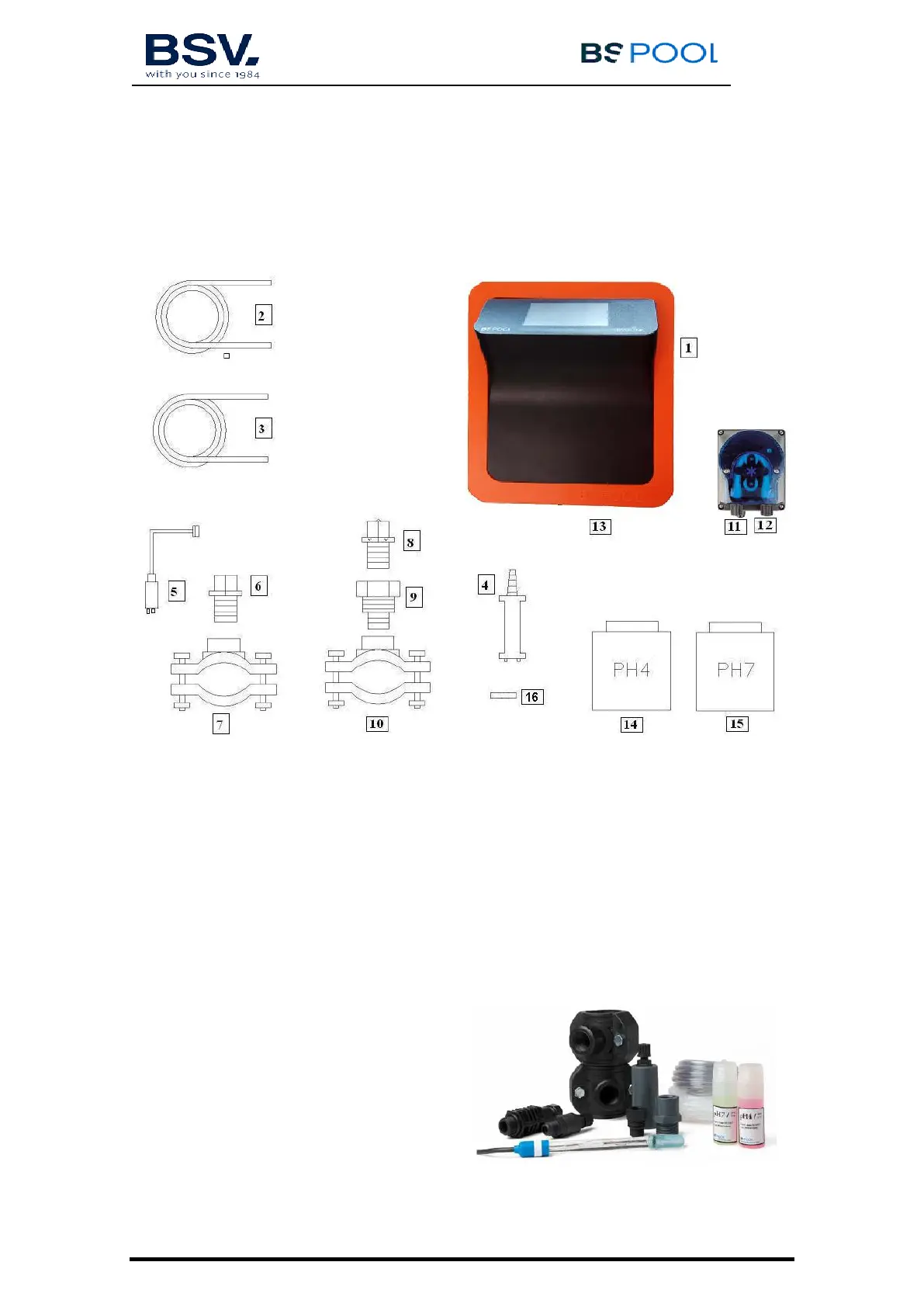

3.2.2.1- Parts
1- EVOTOUCH Equipment
2- Suction Tube (flexible)
3- Injection Tube (rigid)
4- Suction filter (place vertically on the bottom of the acid container)
5- pH Probe
6- Probe Holder
7- Flange (kit does not provide it)
8- Injector (place with the arrow facing downwards)
9- Pipe nipple 3/8,1/2
10- Flange (kit does not provide it)
11- Acid inlet (suction tube)
12- Acid outlet (injection tube)
13- pH probe connector (BNC)
14- pH4 calibration liquid
15- pH7 calibration liquid
16- Rubber cap for calibration
