3.2.2.2- Connection of pH kit

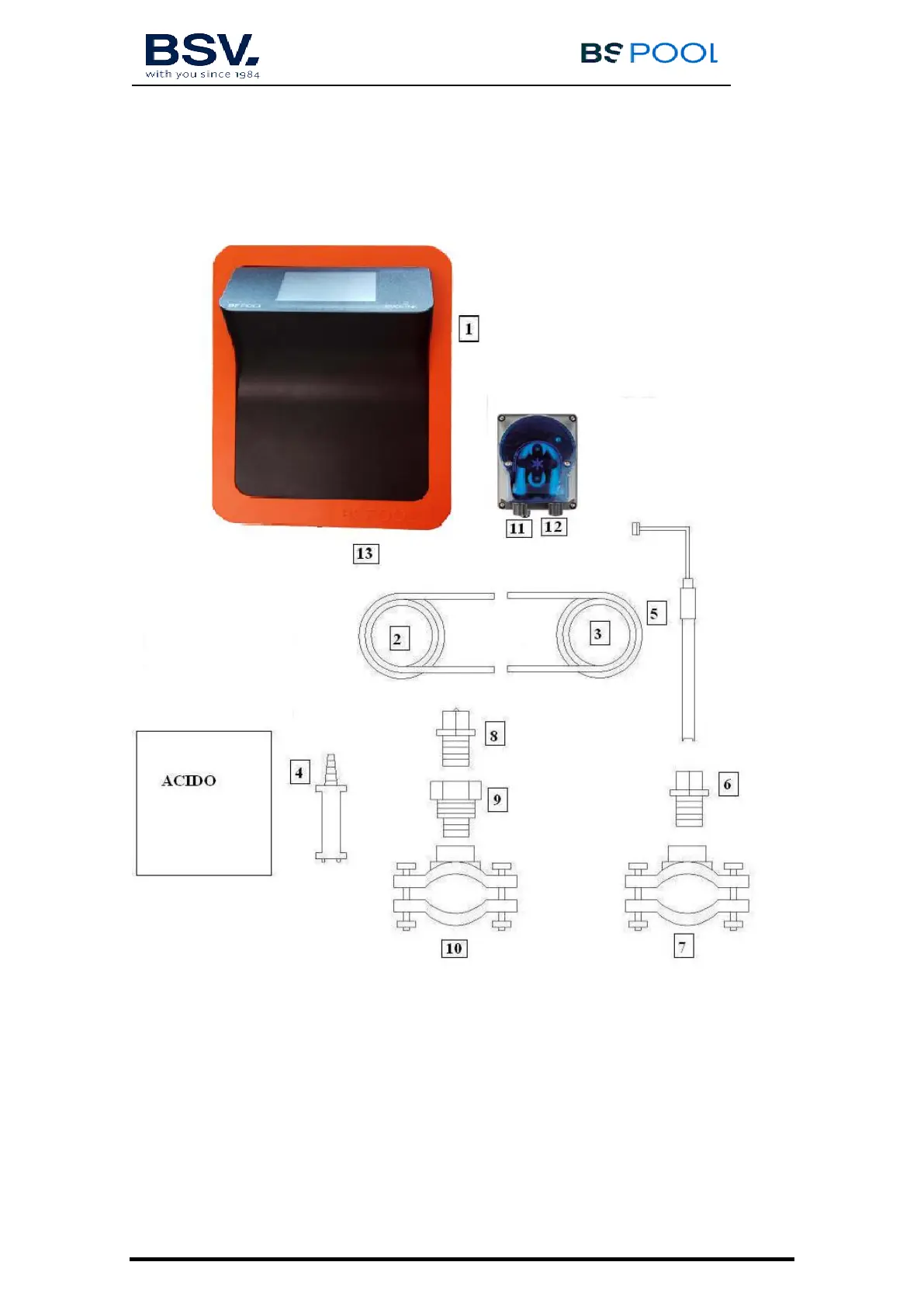

Once the equipment (1) is installed, the following connections should be done.
1- Place the flange (10) on the pipe as indicated in the hydraulic connection
diagram. The flange (10) belongs to the injector and should be connected after
the electrolysis cell.
2- Place the flange (7) in the pipe as indicated in the hydraulic connection
diagram. The flange (7) belongs to the PH probe and should be
connected before the electrolysis cell and after the filter.
