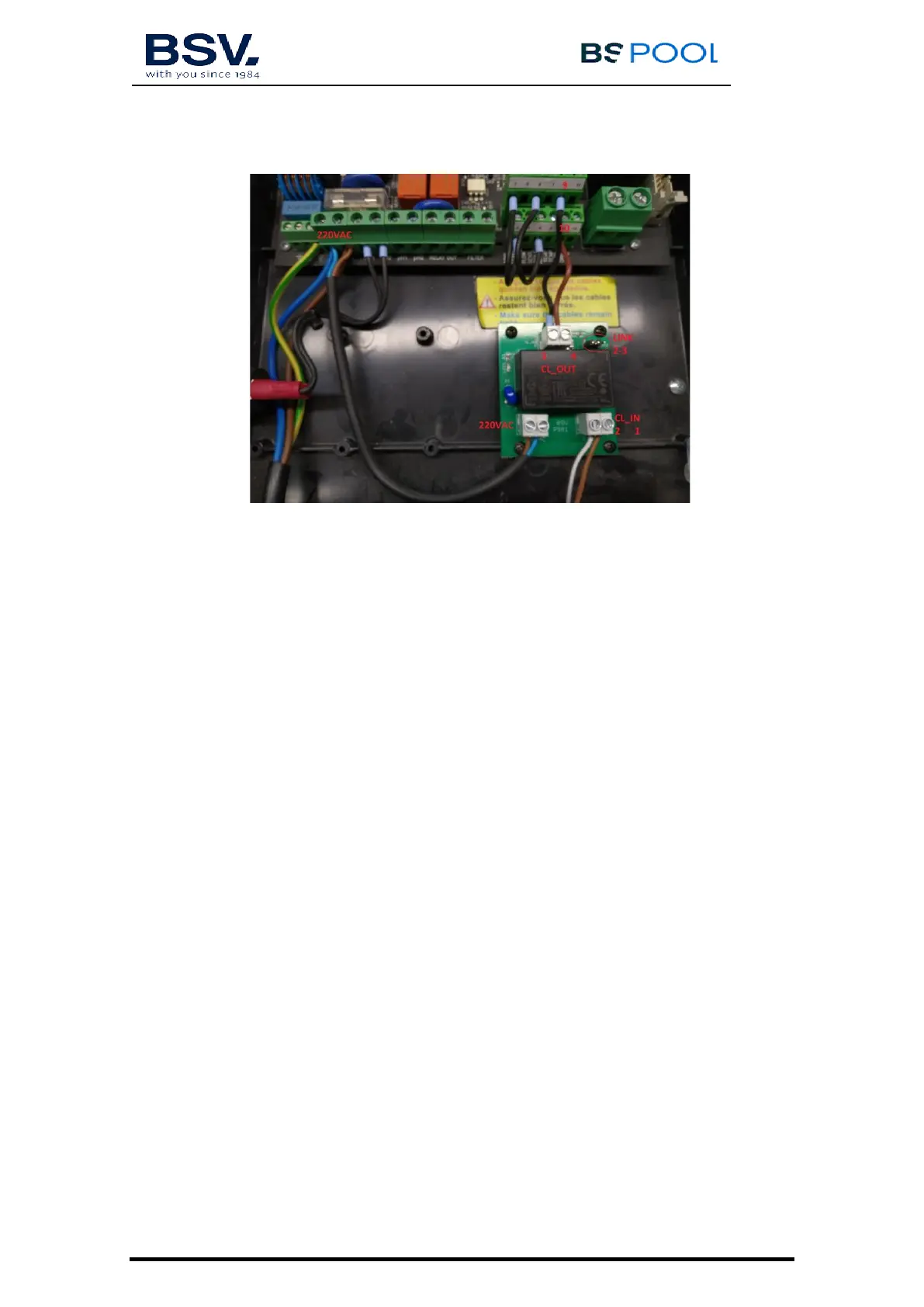

- Connect live and neutron from J3 terminal of the chlorinator,
to the 220VAC terminal of the P981 PCB
- Connect from free chlorine probe cable to P981
o White cable must be connected to the CL_IN terminal, pin
number 2.
o Brown cable must be connected to the CL_IN terminal, pin
number 1.
- P981 connection to the J8 terminal of the chlorinator
o From pin 4 of CL_OUT terminal located in P981, to the pin
10 (ORP+) of J8 terminal located in chlorinator
o From pin 3 of CL_OUT terminal located in P981, to the pin
10 (ORP+) of J8 terminal located in chlorinator
- Set the Jumper position to 2-3 in P981.
3.2.4.3.4 Probe maintenance
Please, carefully read the following maintenance instructions for your PRO/2 Kit.
The maintenance periods are illustrative, they are depending on factors such as
the quality of the water and the installation maintenance, especially with the
filtration system.
Weekly Maintenance: Analyze the water weekly from your swimming pool
and if necessary, calibrate the free chlorine probe as shown on the 3.4 chapter.
Twice a year (depending on the installation): Replace the electrolyte of
the probe.
