Buchi V-100 - Interface I-100 Mounting and Connection

5 | Installation BÜCHI Labortechnik AG
28/52 Operation Manual Vacuum Pump V-100
5.9 Fitting and connecting the Interface I-100
5.9.1 Fitting an interface unit to the Vacuum Pump V-100
Fitting the holder
1
1
2
3
4

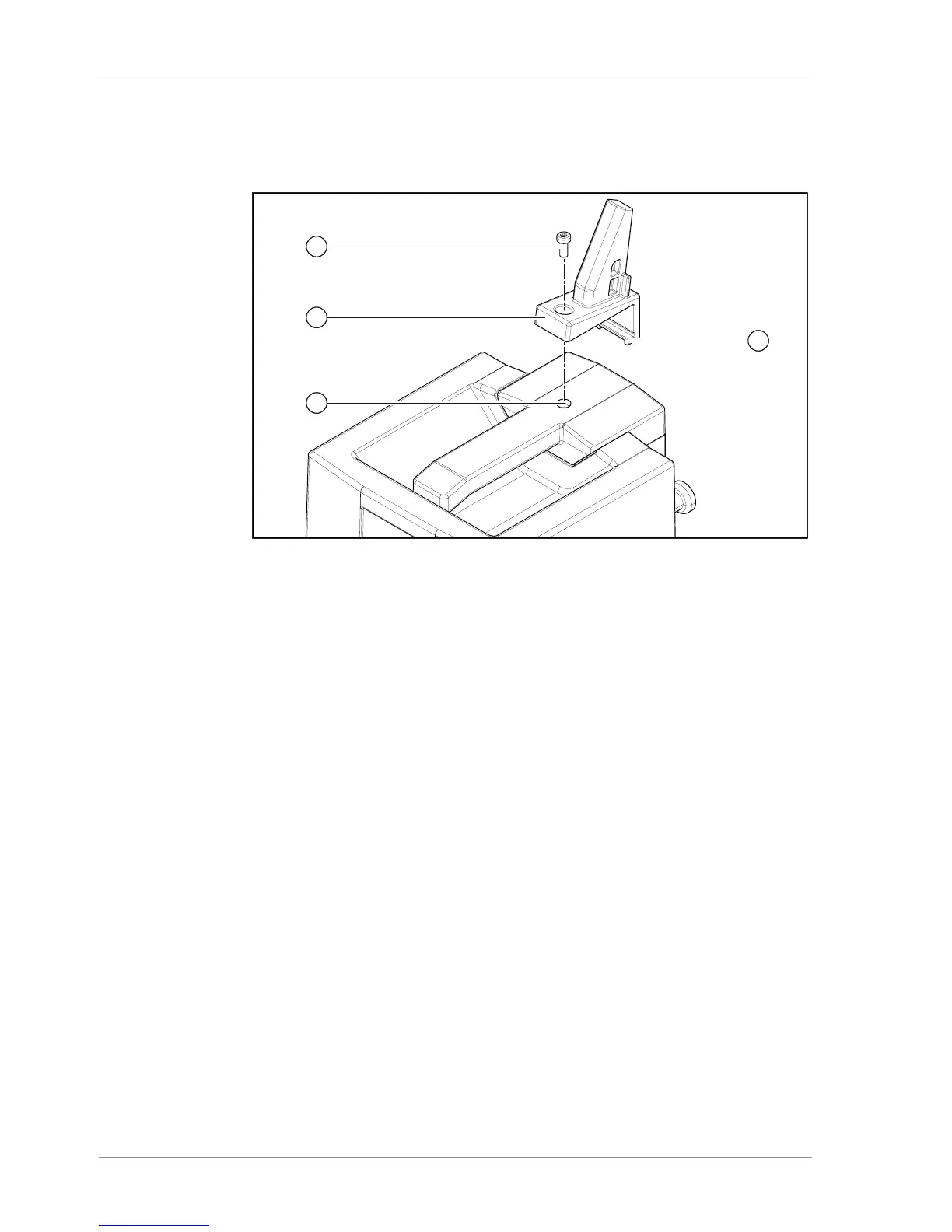

Fig.15: Fitting the holder for the Interface I-100
1 Screw 3 Rubber plug (in thread for screw)
2 Holder for Interface I-100 4 Lower hinge of holder
The Torx key required for fitting the holder is included in the specifications supplied.
u Remove rubber plug (3).
u Fit the holder (2) onto the pump top cover from behind and secure it with the
screw (1).
u Make sure that the hinge (4) of the holder is engaged in the slot on the rear of the
V-100.
