Overview of controls
Logamatic EMS RC35 programming unit - Subject to technical modifications
2
Overview of controls

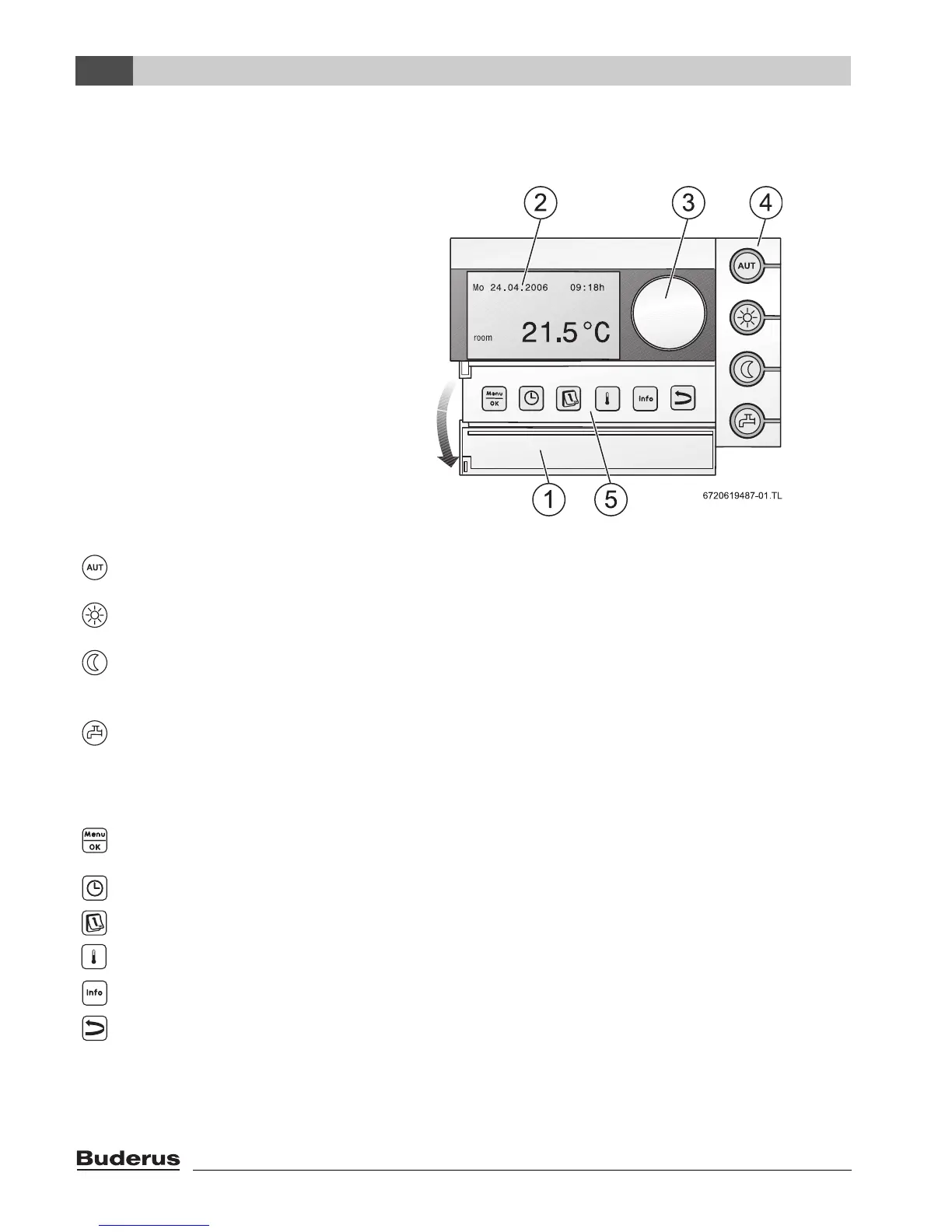

Key to diagram:
1 Flap; pull the recessed grip on the
left to open
2 Display
3 Rotary selector for changing values
and temperatures or for navigating
through the menus
4 Buttons for basic functions: When the LED lights up,
“AUT” (automatic) • the switching program is active (automatic switchover between
day and night room temperatures).
“Daytime operation” (manual) • the heating system operates at the set day room temperature.
DHW heating is on (factory setting).
“Night mode” (manual) • the heating system operates at the set night room temperature.
Frost protection is active.
DHW heating is off (factory setting).
“DHW” • the DHW temperature has fallen below its set value. The DHW
can be reheated by pressing the button (the LED will then flash).
5 Buttons for additional
functions:
Function:
“Menu/OK” Open the user menu and confirm the current selection.
When the rotary selector is turned at the same time: change setting.
“Time” Set the time.
“Date” Set the date.
“Temperature” Set the room temperature.
“Info” Open the Info menu (to view values).
“Back” Go back one step or one menu item.
In automatic mode, an additional LED lights up with the “AUT” LED to indicate the current operating status
(“day mode” or “night mode”). Exception: in the case of boilers with UBA1.x only the “AUT” LED lights up.
The “DHW” LED can also be switched off. On boilers with UBA1.x the “DHW” LED does not illuminate.
