5
Installation of the boiler
Logano plus SB615 Gas - We reserve the right to make any changes due to technical modifications.
18

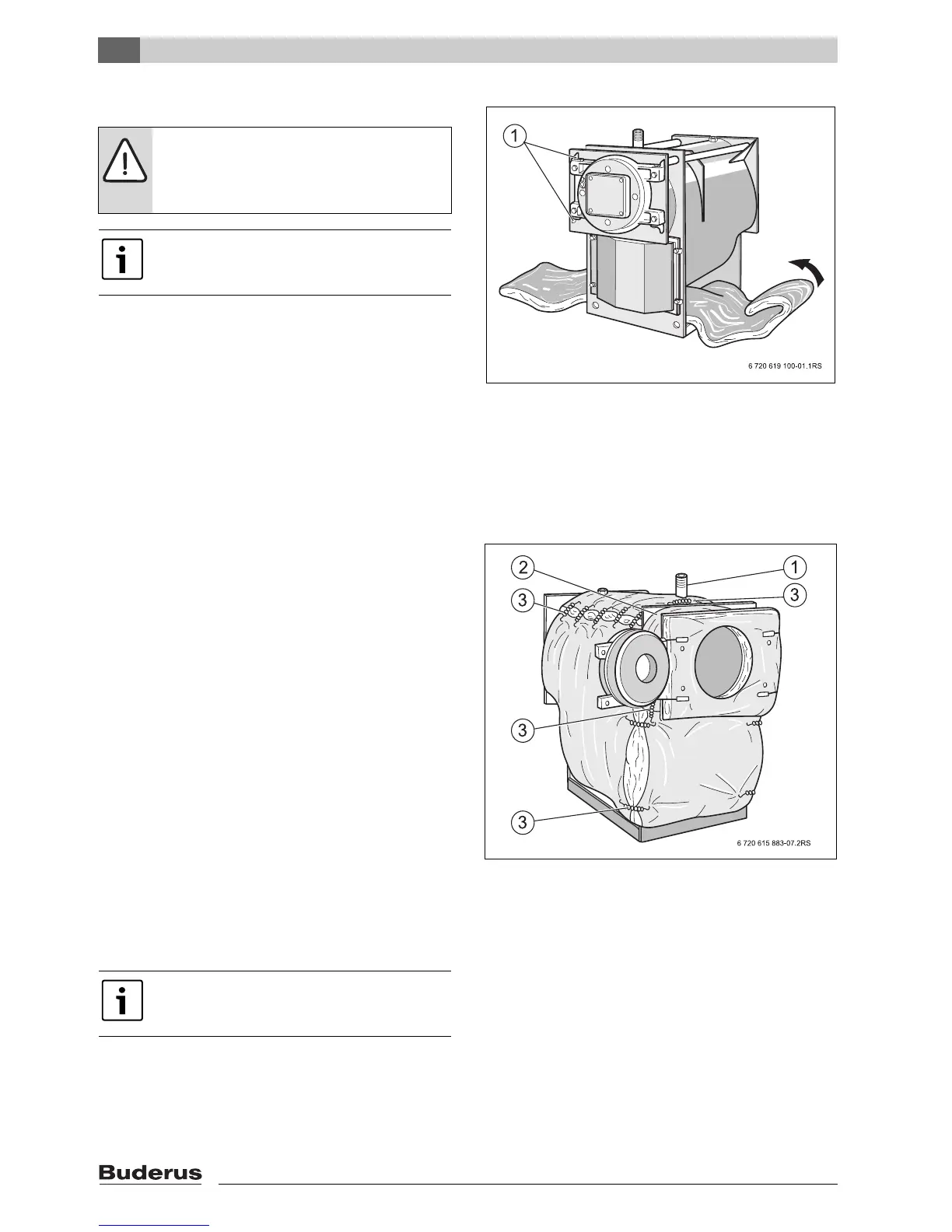

5.9 Fitting the lagging
B Push the insulation underneath the boiler through to
the opposite side (Æ Fig. 7).
Fig. 7 Push the insulation underneath the boiler
through to the opposite side.
1 Hinge pin
B Wrap thermal insulation jackets overlapping around the
boiler and fix at the top with 5 spring clips [3].
B Close off the cut-out for the low water indicator [1] with
two spring hooks [3].
B Undo the door bolts and open the burner door.
B Place the lower front insulation section on the front of
the boiler body and secure to the right and the left onto
the wrap-around insulation with 2 spring hooks on each
side [3].
B Locate the insulation strip [2] at the top around the
boiler shell ring, and secure to the right and the left
onto the lower front insulation section with two spring
hooks on each side [3].
B Place the upper front insulation section on the front of
the boiler body.
Fig. 8 Fitting and fastening the lagging
1 Low water indicator
2 Strip of lagging material
3 Tension springs
B Close the door again and secure with door bolts.
DANGER: Risk of injury due to burner door
falling off when opened!
B Make sure that both hinge bolts
(Æ Fig. 7, [1]) are inserted.
When fitting the insulation, ensure that the
fabric backing is arranged on the outside and
the cut-outs at the rear.
Keep the cut-outs for the hinges and the
threaded sleeves for the burner door bolts
free.
