Buderus SB615 - Fitting the Connection Plates

5
Installation of the boiler
Logano plus SB615 Gas - We reserve the right to make any changes due to technical modifications.
19
B Place the rear insulation section onto the rear of the
boiler in the position dictated by the openings and
secure to the right and the left onto the wrap-around
insulation with 4 spring hooks (Æ Fig. 9).

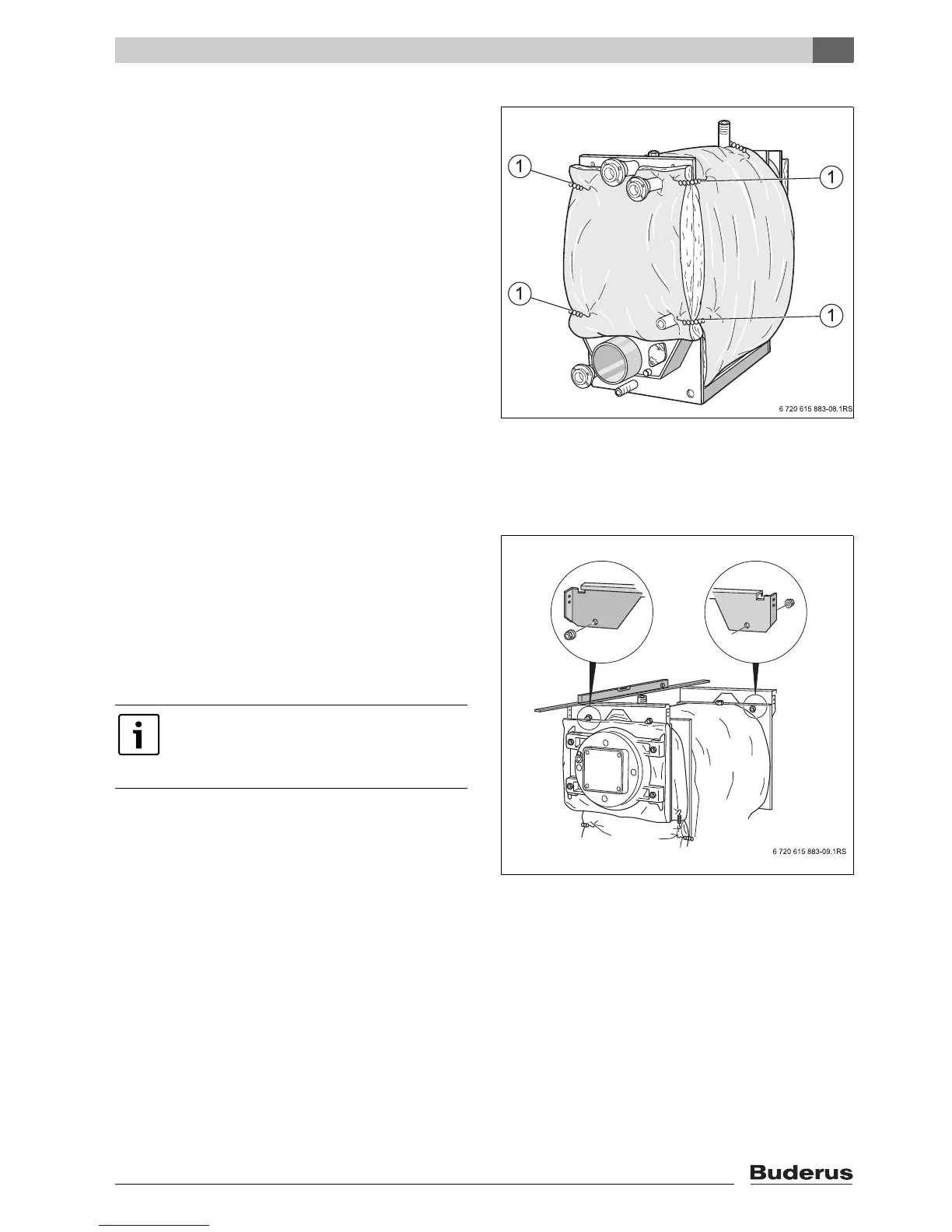

Fig. 9 Positioning and securing the rear insulation
section
1 Tension springs
5.10 Fitting the connection plates
B Insert front connection plate (with trapeze-shaped
cut-out facing downwards) over the threaded studs,
with the 2 holes at the top, and fasten with nuts
(Æ Fig. 10).
B Insert back connection plate (with trapeze-shaped
cut-out facing downwards) over the threaded studs,
with the 2 holes at the top, and fasten with nuts
(Æ Fig. 10).
B Balance the front and rear connection plates with a
spirit level.
Fig. 10 Locating and securing the front and rear
connection plates
The angled sections on the connection
plates should point outwards, and both the
front and rear connection plate should be
horizontally level (Æ Fig. 10).
