Installation of the boiler
Logano plus SB615 Gas - We reserve the right to make any changes due to technical modifications.
20
B Hook side connection plate with the "U" into the
cut-out on each of the front and back connection
plates. Each connecting plate is secured in the front
hole and the rear slot using 2 self-tapping screws.

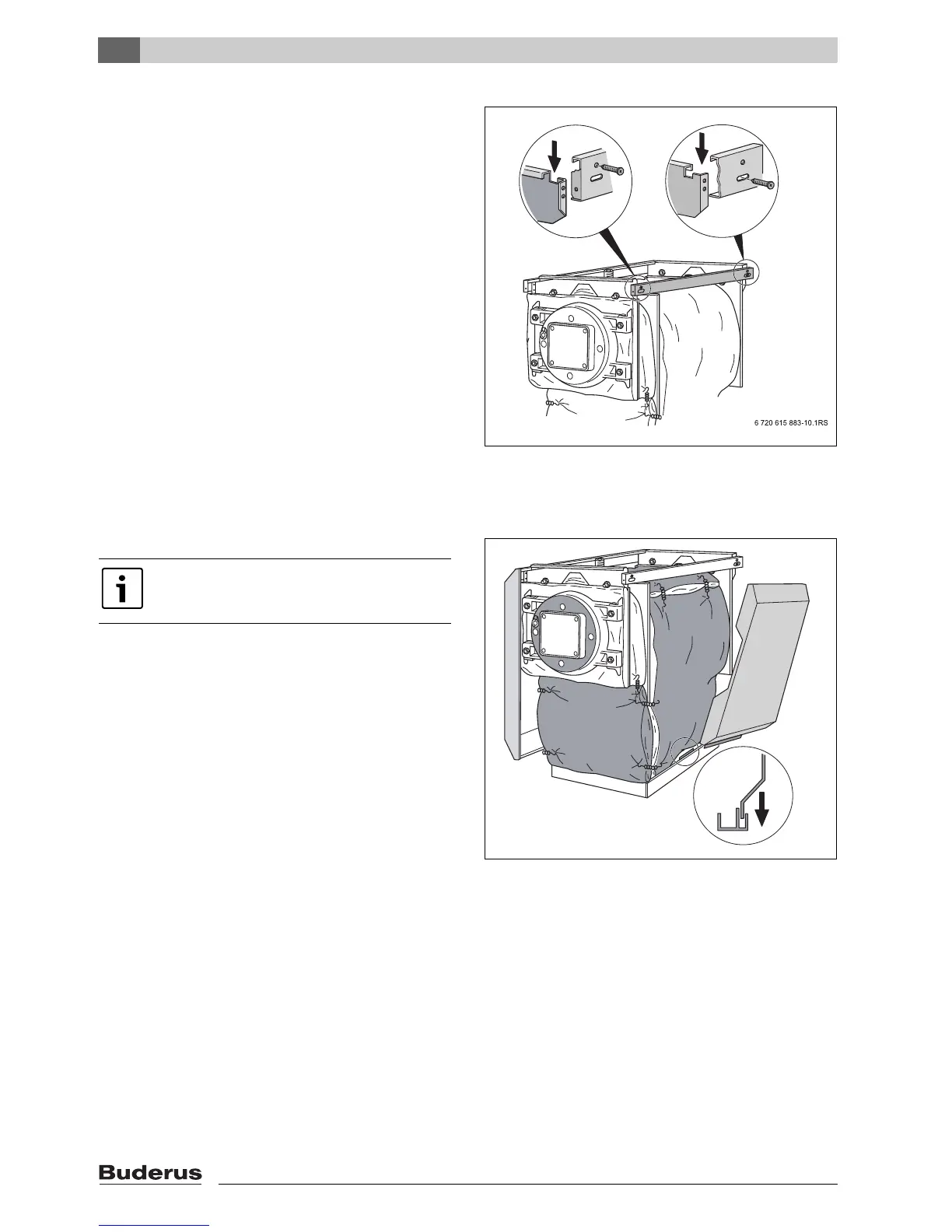

Fig. 11 Inserting and securing the lateral connection
plates
5.11 Fitting the side panels
B Insert side panels with the flange behind the boiler
frame at the bottom and in the slot in the centre.
Fig. 12 Inserting side panels
The cutout in the flange of each side panel
section must be in the centre of the boiler.
6720615883-30.1RS
