Installation of the boiler
Logano plus SB615 Gas - We reserve the right to make any changes due to technical modifications.
21
B Lift side panels and hook into the folded edge in the
side connection plates [1].
B Press ends of the lagging behind the folded edge on
the side panel.
5.12 Routing the burner cable
B Insert the strain relief [2] for the burner cable [3] with
both pins into the holes on the angled section of the left
or right side panel.
B Adjust the burner cable [3] to the desired length, feed
through the strain relief [2], close tab and fasten to the
base rail with 2 self-tapping screws.

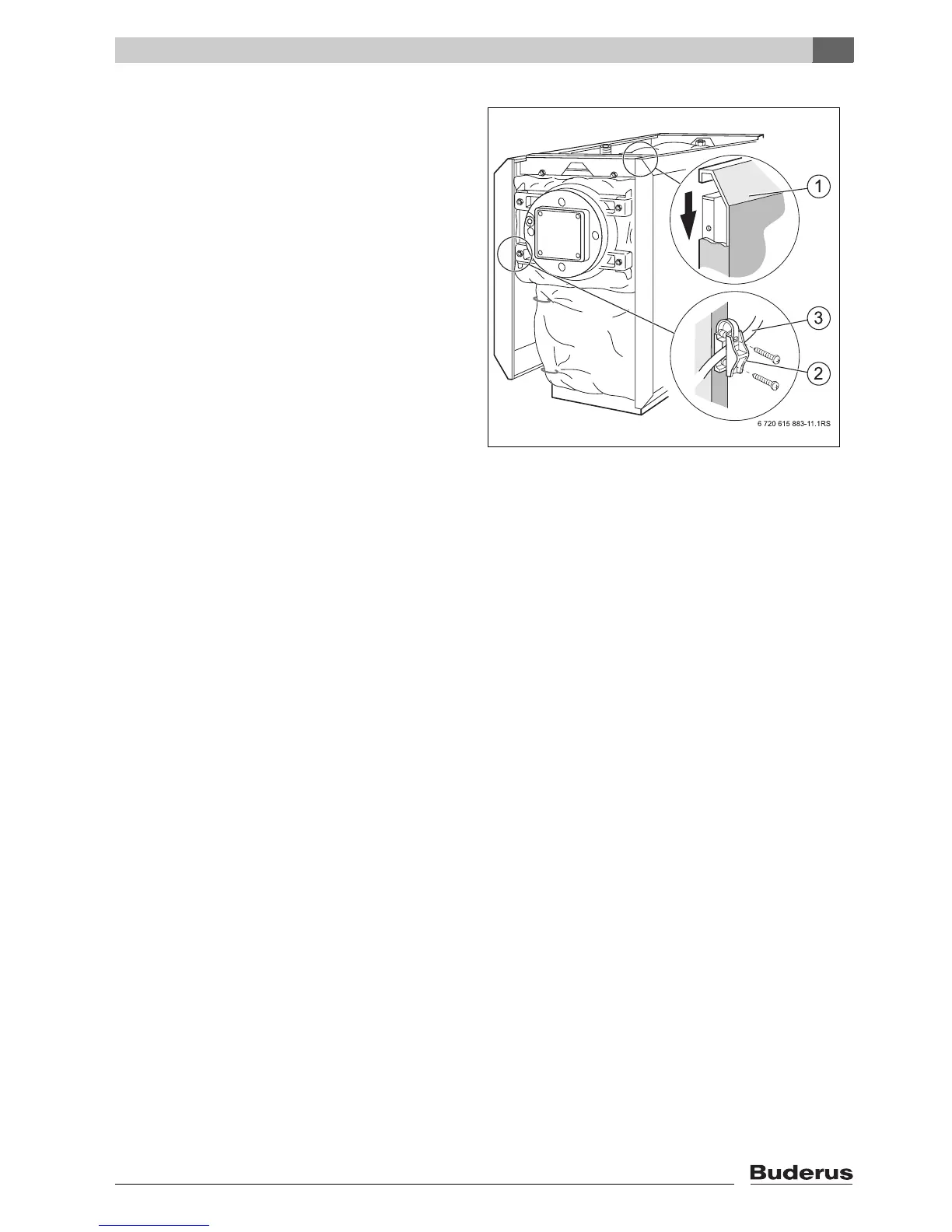

Fig. 13 Hook in the side panels and connect the burner
cable
