8
MA201435_13.1 [Original Instructions] 6/25/2012
Mold Assembly
The SimpliMet 3000 Automatic Mounting Press is shipped fully assembled except for the Mold Assembly.
Due to various available mold sets, Mold Assemblies are supplied as separate order items.
Personal Injury. Due to high temperatures when using this machine, always use caution when
handling molds and working in the mold area. The Mold Cylinder Closure will be warm to the
touch.
1. Connect the SimpliMet 3000 to an electrical supply.
2. Move the power switch to the ON position. The front panel will light up.
3. Install the Upper Ram and insulation parts (see Figure 2).
Insert the Spindle Assembly (knob and threaded rod) through the top of the press.
Place a spacer/ insulator disc on the Spindle Assembly.
Screw Upper Ram to the Spindle Assembly.
The Upper Ram Assembly does not need to be very tight.

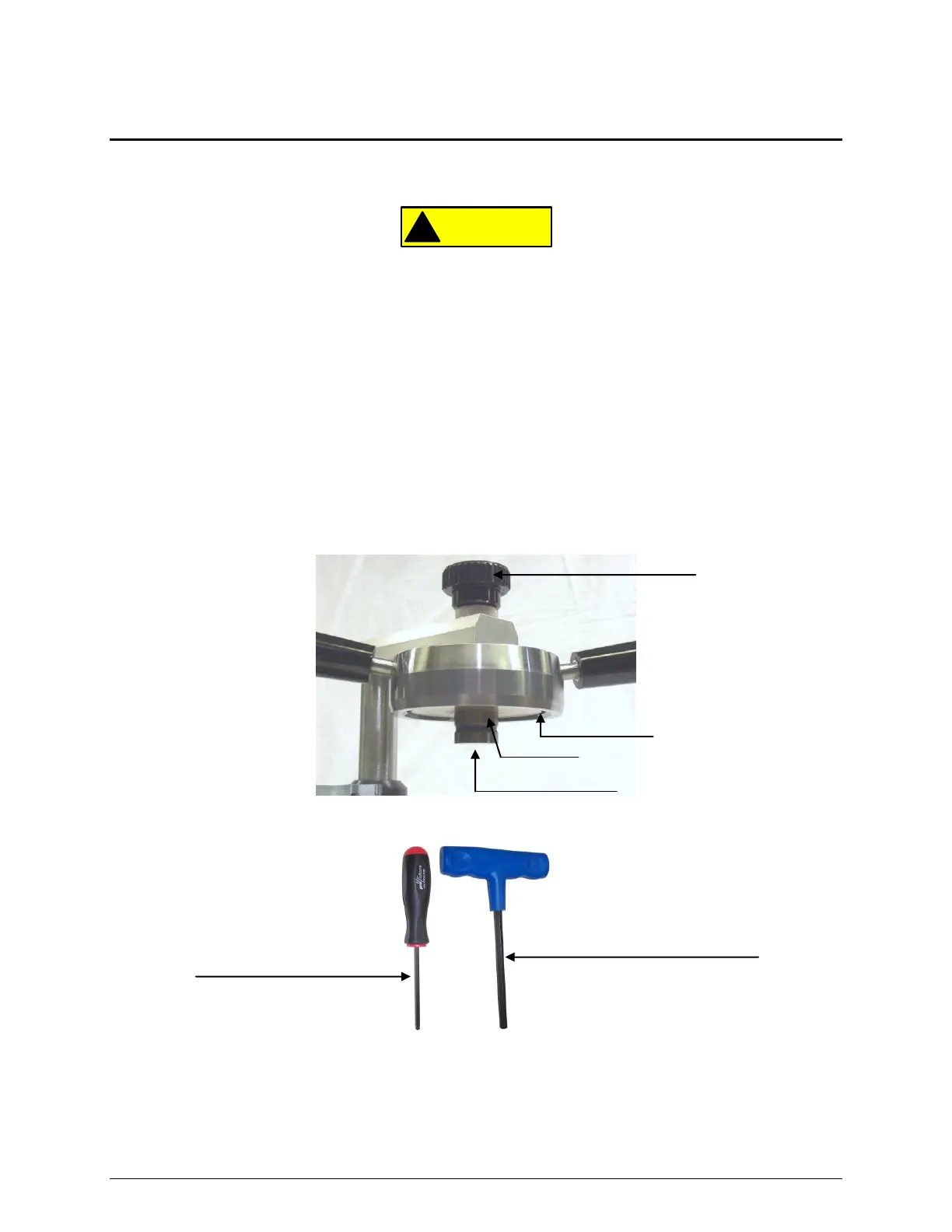

Figure 2 Upper Ram Assembly
Figure 3 Supplied Wrenches
4 mm Ball Point Hex Wrench
(P/N: R10497)
6 mm Hex T-Wrench
(P/N: 1430S099)
