35
NORMAL/PROGRAM/RINSE SWITCH
SERVICE (cont.)

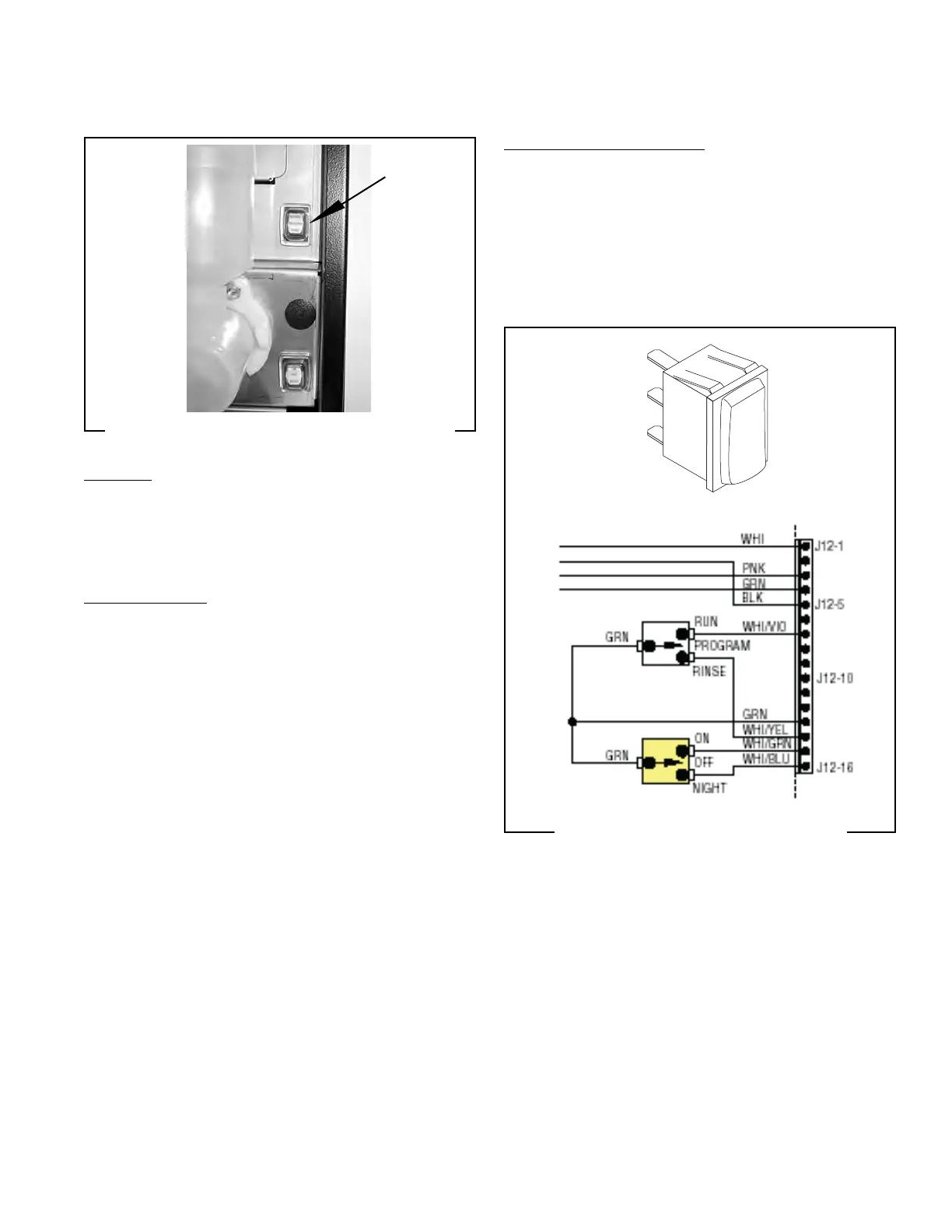

FIG. 39 NORMAL/PROGRAM/RINSE
SWITCH TERMINALS
P1800
FIG. 38 NORMAL/PROGRAM/RINSE SWITCH
P1637
Location:
The NORMAL/PROGRAM/RINSE Switch is located
inside the dispenser door on the upper right side of the
whipper panel.
Test Procedures:
1. Disconnect the dispenser from the power source.
2. Disconnect the wires from the switch terminals.
3. Check for continuity between the center terminal
and upper terminal with switch in the RINSE (lower)
position. Check for continuity between the center
terminal and the lower terminal with the switch in
the NORMAL (upper) position. Continuity must not
be present when the switch is in the PROGRAM
(center) position.
If continuity is present as described, the switch is
operating properly.
If continuity is not present as described, replace the
switch.
Removal and Replacement:
1. Remove all wires from the switch terminals.
2. Compress the clipson the switch and gently push
the switch through the opening in the panel.
3. Push the new switch into the opening of the panel
so that the clips snap it securely into place.
4. Refer to Fig. 39 when reconnecting the wires.
42032 060109
