28
SERVICE (cont.)
EMI FILTER (230 Volt IMIX-3, 4 & 5 only)

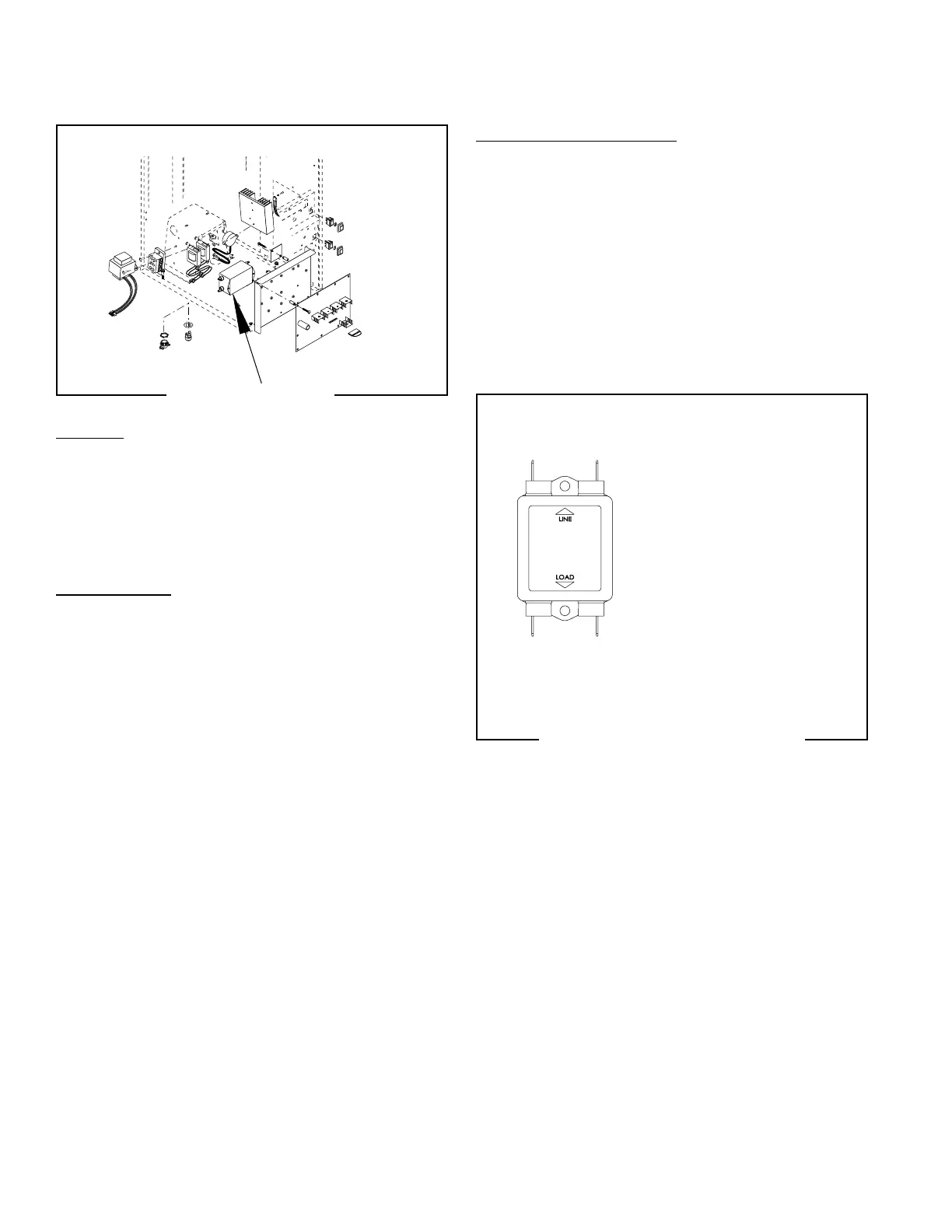

FIG. 25 EMI FILTER
P3250.25
Location:
The EMI Filter is located on the rear of the dispenser
base near the Terminal Block on IMIX-3.
The EMI Filter is located on the rear of the back side
of the component bracket assembly on IMIX-4 & 5.
Test Procedure:
1. Disconnect the dispenser from the power source.
2. Disconnect the two black wires and two white
wires on the EMI Filter from the EMI Filter wiring
harness.
3. Check for resistance between the two black leads
on the EMI Filter.
If resistance is present as described the EMI Filter is
operating properly.
If resistance is not present as described, replace the
EMI Filter.
Removal and Replacement:
1. Disconnect the wires from the EMI Filter.
2. Remove the two #8-32 screws and nuts securing
the EMI Filter.
3. Remove and discard EMI Filter.
4. Install new EMI Filter using two #8-32 screws and
nuts to secure EMI Filter to its former location.
5. Refer to Fig. 26 when reconnecting the wires.
FIG. 26 EMI FILTER CONNECTORS
118.0kΩ-118.5kΩ
Across either pair
42032 060109
