17
SERVICE (cont.)
BALLAST

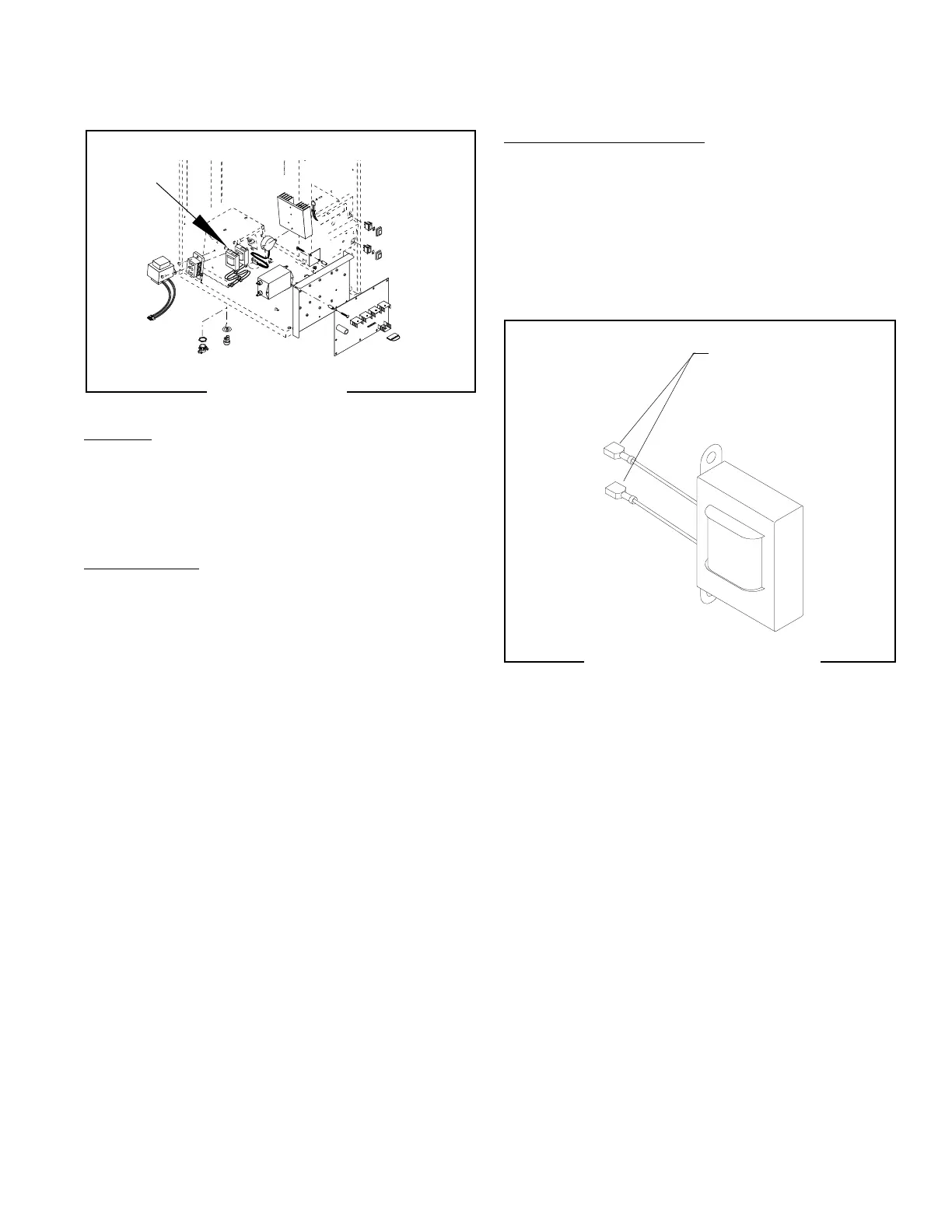

FIG. 9 BALLAST
Location:
The front door lamp ballasts are located behind
the front access panel and may be on either side of the
component bracket assembly.
Test Procedure:
1. Disconnect the dispenser from the power source.
2. Disconnect the two black leads on the ballast from
the dispenser main harness.
3. Check for continuity between the two black leads
on the ballast.
If continuity is present as described the ballast is op-
erating properly.
If continuity is not present as described, replace the
ballast.
Removal and Replacement:
1. Disconnect the wires from the ballast.
2. Remove the two #8-32 screws securing the ballast
to the component bracket.
3. Remove and discard ballast.
4. Install new ballast using two #8-32 screws to se-
cure ballast to the component bracket.
5. Refer to Fig. 10 when reconnecting the wires.
BLK to Main Wiring
Harness
FIG. 10 BALLAST TERMINALS
P1447
P3250.25
42032 060109
