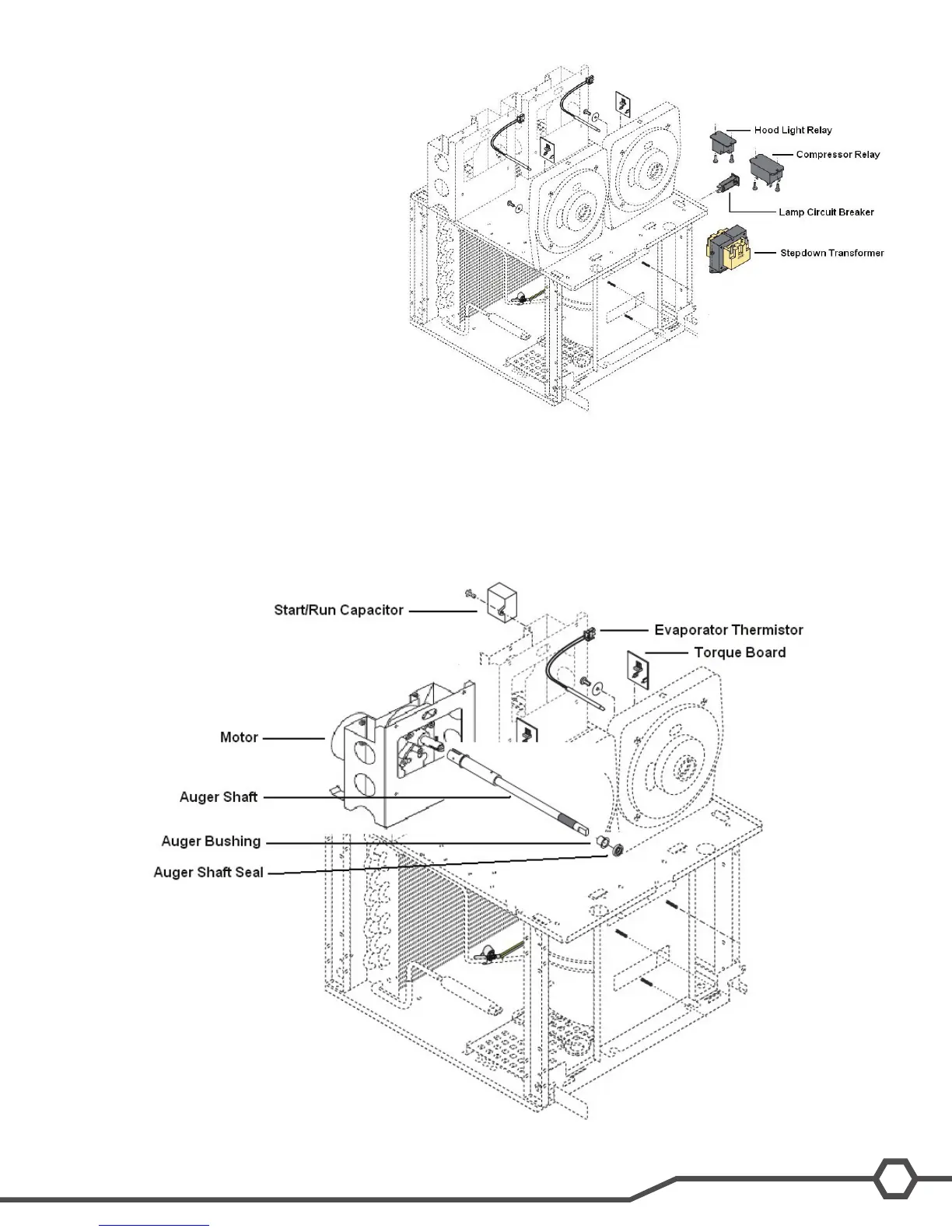

Right Side Panel
Removing the right side panel will give you
access to the hood light relay, lamp circuit
breaker, compressor relay, stepdown trans-
former, condenser fan/ULTRA-2, compressor
starting components and optional LAF water
valve/ULTRA-2 only.
How to Remove
The right side panel is attached by 2, ¼ inch
hex slotted screws on the underside. Re-
move or loosen the screws and the panel is
now ready for removal by pulling downward
and out.
Top Motor Covers
Removing the top motor cover per side will give you access to the auger motor, start/run capacitor, torque sensor
board, evaporator thermistor and auger shaft assembly plus bushing and seal.
How to Remove
The motor cover is attached by 2 slotted standard screws in the rear per side. Remove the screws and the motor
cover is now ready for removal by pulling backwards.
