6.4.5.2.2 CHECKING AND ADJUSTING THE WHEEL ALIGNMENT

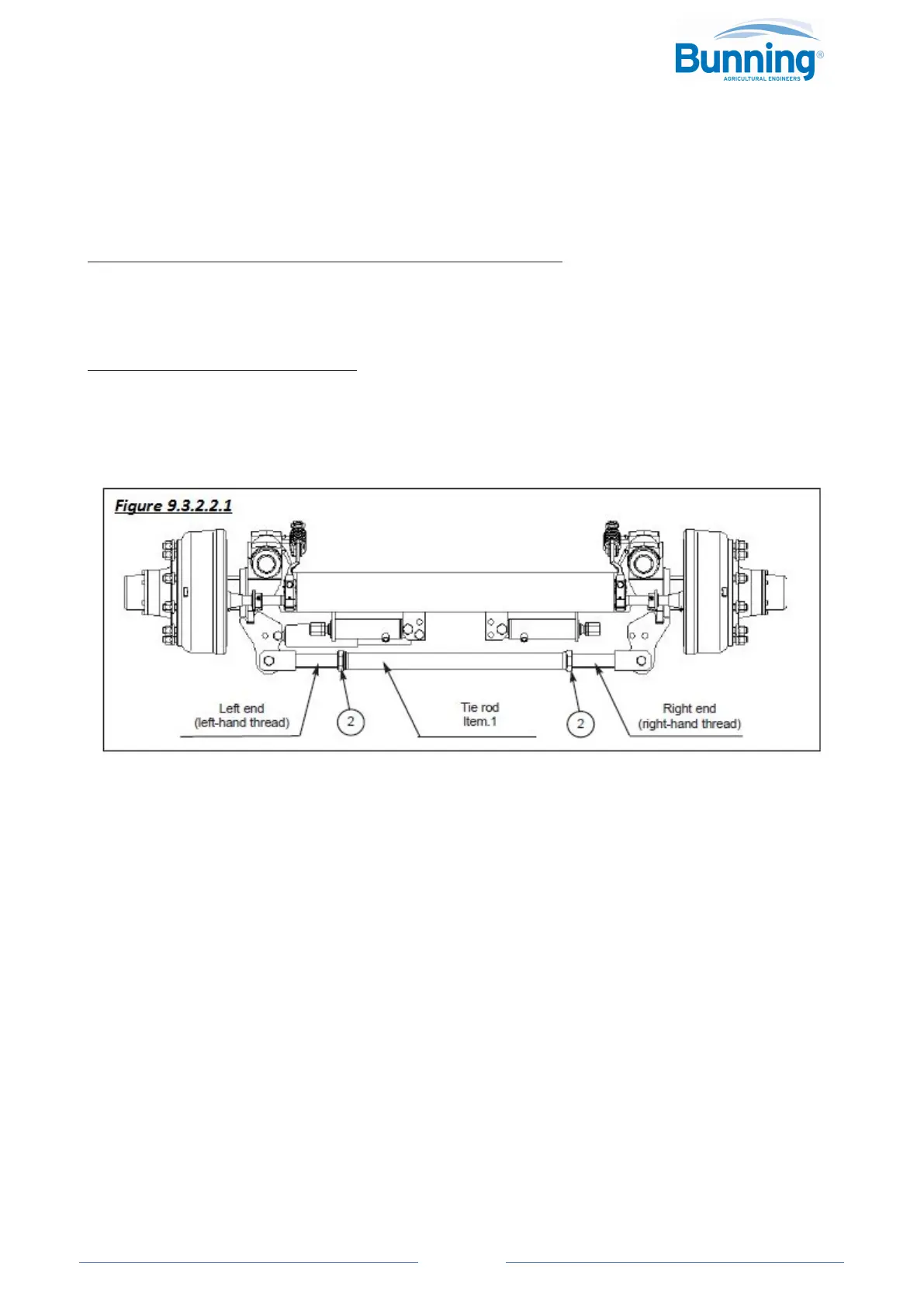

6.4.5.2.2.1 STEERING AXLE WITH ADJUSTABLE LENGTH TIE ROD (see figure 9.3.2.2.1)
Before adjusting the wheel alignment, check that the flexible bushings at the ends of the tie rod are in good condition and
replace them if necessary.
Align the wheels with the vehicle on a smooth, level surface.
The wheel alignment must be adjusted with the locking cylinder pistons retracted.
- Measure the distance between the rim at the front of the wheels and at the back of the wheels: the distance should be the
same.
- Move the vehicle forward to turn the wheels through 180° and repeat the check to allow for bent wheels.
If the wheel alignment is not perfect, adjust it as follows;
With the locking cylinder pistons still retracted
- Slacken the 2 lock nuts Item 2 on the end of the tie rod Item 1.
- Turn the tie rod to pull or push the wheels until the distances are the same. The wheels may be set to have a slight toe in
(distance at the front less than the distance behind) of no more than about 4 mm but never adjust with toe out.
- Lock the lock nuts Item 2 when the tie rod has been adjusted and then adjust the locking cylinders (See section 6.4.5.2.3
LOCKING CYLINDER MAINTENANCE AND ADJUSTMENT).
