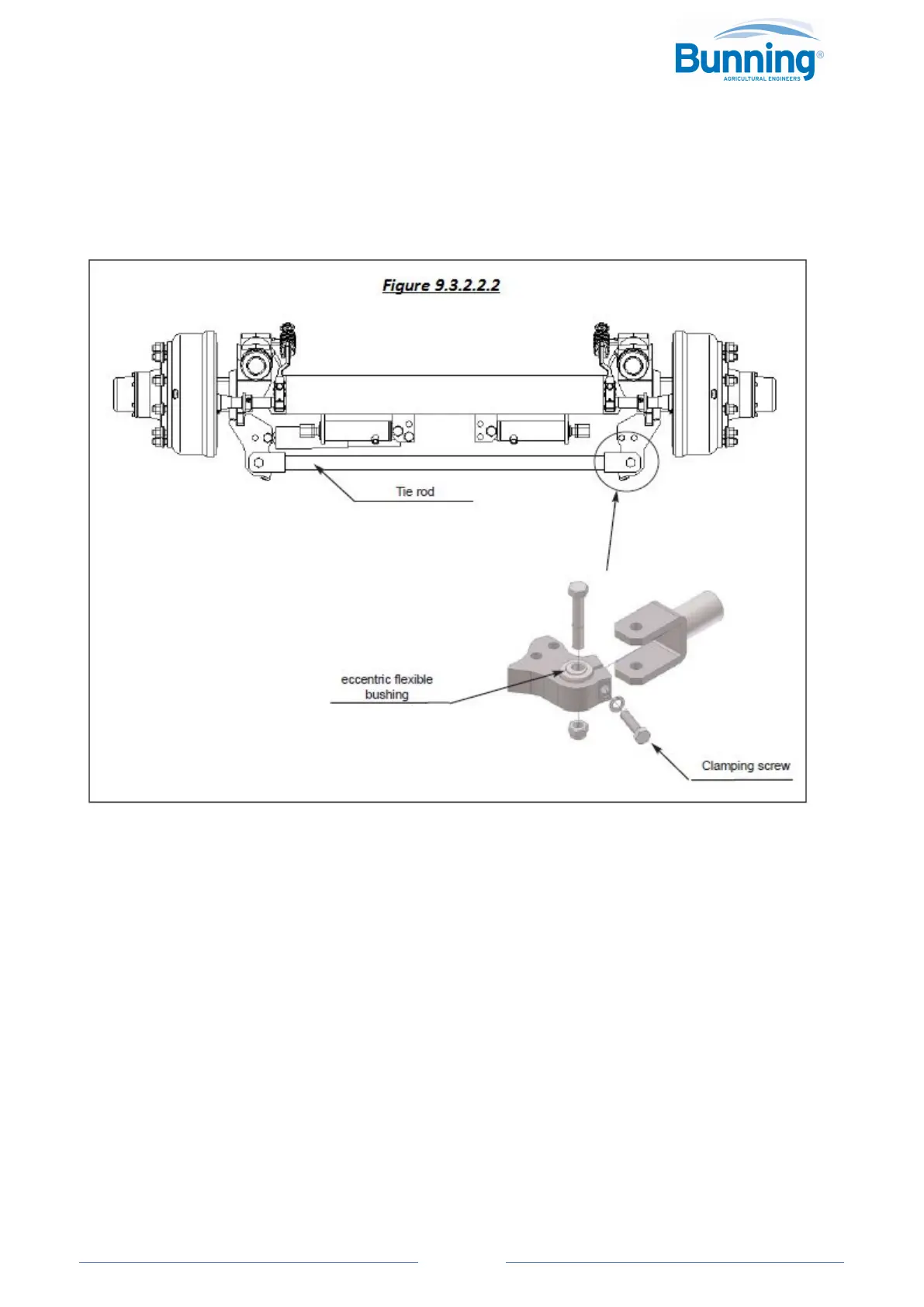

6.4.5.2.2.2 STEERING AXLES WITH ECCENTRIC FLEXIBLE BUSHINGS (see figure 9.3.2.2.2)
In this case the length of the tie rod is fixed and the wheel alignment is adjusted using the flexible bushings at the ends of the tie
rod. The mounting hole in the flexible bushing is eccentric. The wheels are aligned by slackening the screw clamping the flexible
bushing and then turning the flexible bushing in its housing. Follow the instructions in section 6.4.5.2.2.1 (STEER AXLE WITH
ADJUSTABLE LENGTH TIE ROD).
Retighten the clamping screw after adjustment.
