LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 103
6.4.5.2.4 ADJUSTING THE CLEARANCE, STEERING AXLES WITH CONICAL PINS ONLY
Before intensive use and every year:
- For steer axles with conical kingpins (this type of axle has pressed steel caps Item 3 over the adjustment nuts Item 4).
- Check and, if necessary, adjust the clearance. It should be between 0.5mm and 2mm (see figure 3.2.4). The clearance should be
adjusted before it falls below 0.5mm.

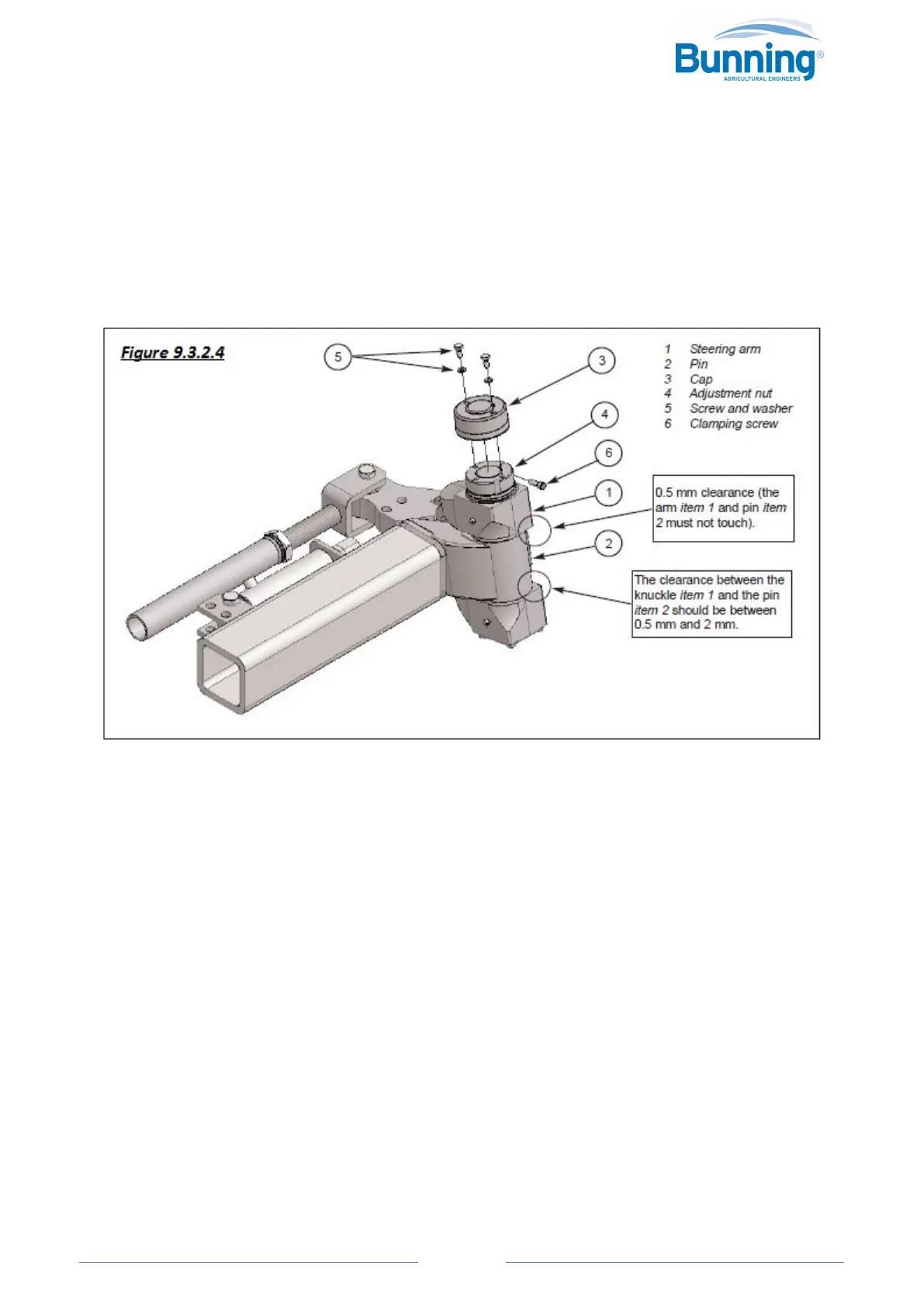

(See figure 9.3.2.4)
- Remove the 2 screws and washers Item 5 and the cap Item 3
- Slacken the clamping screw Item 6 on the adjustment nut Item 4
- Adjust the clearance using the adjustment nut Item 4
- Tighten the screw Item 6 and refit the cap Item 3
To Next Page
