LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 116

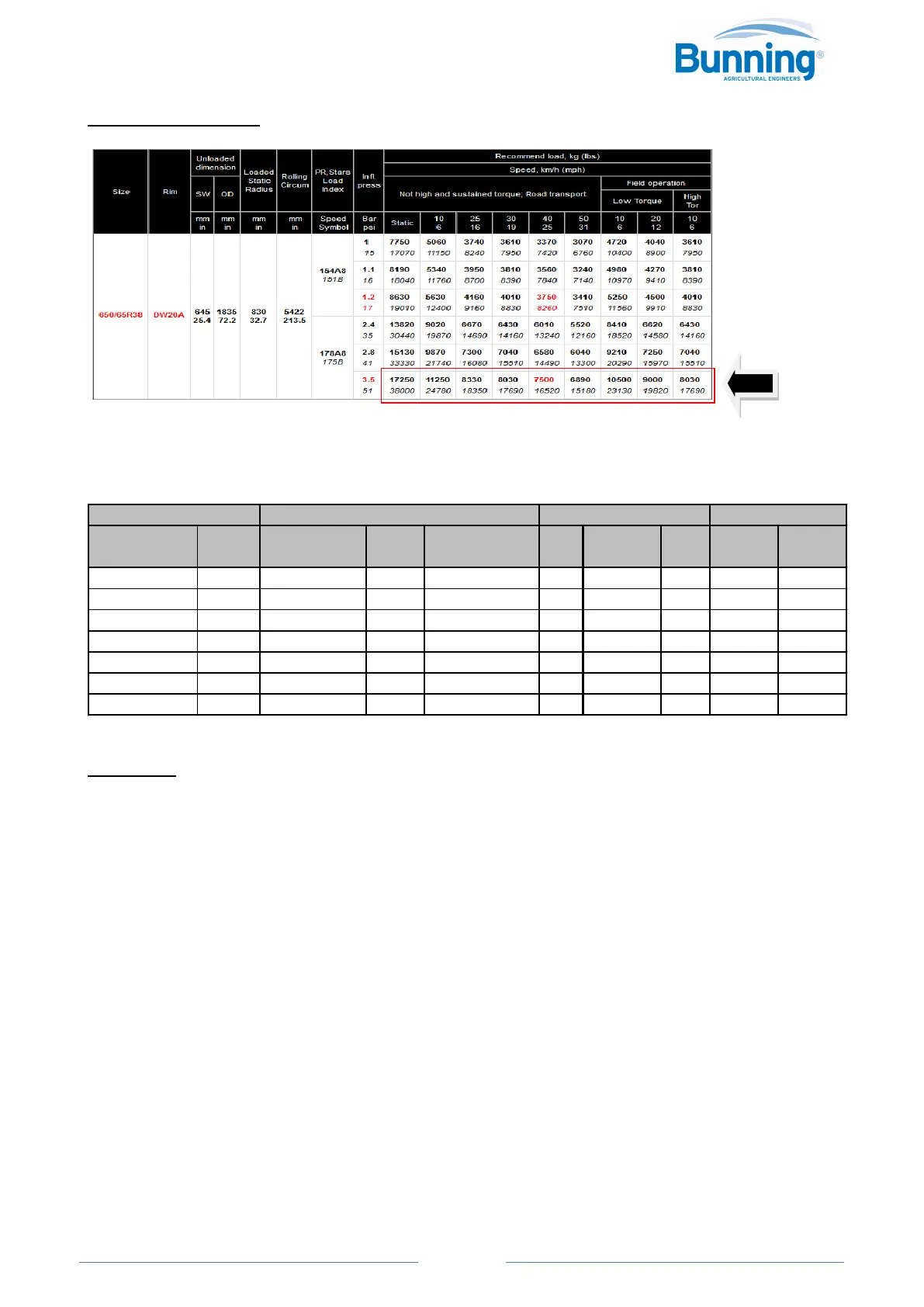

650/65 R 38 ALLIANCE
7.4 WHEEL TYPE & TORQUE SETTINGS
SIZE
LOAD
RATING
TYPE
BORE
(mm)
OFFSET (mm) QTY SIZE
PCD
(mm)
N-m lb-ft
580/70 R 38 170A8 W18A x 38 281 Neg. 45 10 M22 x 1.5 335 510 376
580/70 R 38 180A8 W18A x 38 281 Neg. 45 10 M22 x 1.5 335 510 376
650/55 R 26.5 169D AG20.00 x 26.5 281
0 (Centre Nave)
10 M22 x 1.5 335 510 376
650/65 R 38 178A8 DW23A x 38 281 Neg. 45 10 M22 x 1.5 335 510 376
710/70 R 38 181A8 DW23A x 38 281 Neg. 45 10 M22 x 1.5 335 510 376
710/70 R 42 180A8 W23B x 42 281 Neg. 45 10 M24 x 1.5 335 610 450
VF 710/70 R 42 185D DW25B x 42 281 Neg. 20 10 M24 x 1.5 335 610 450
TORQUE SETTINGSWHEEL STUDWHEEL TYPETYRE TYPE
IMPORTANT
CHECK WHEEL NUT TORQUE AFTER EACH LOAD FOR THE 1
ST
10 LOADS AND THEN DAILY FOR THE FIRST
WEEK AND ONCE A WEEK THEREAFTER.
