LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 44

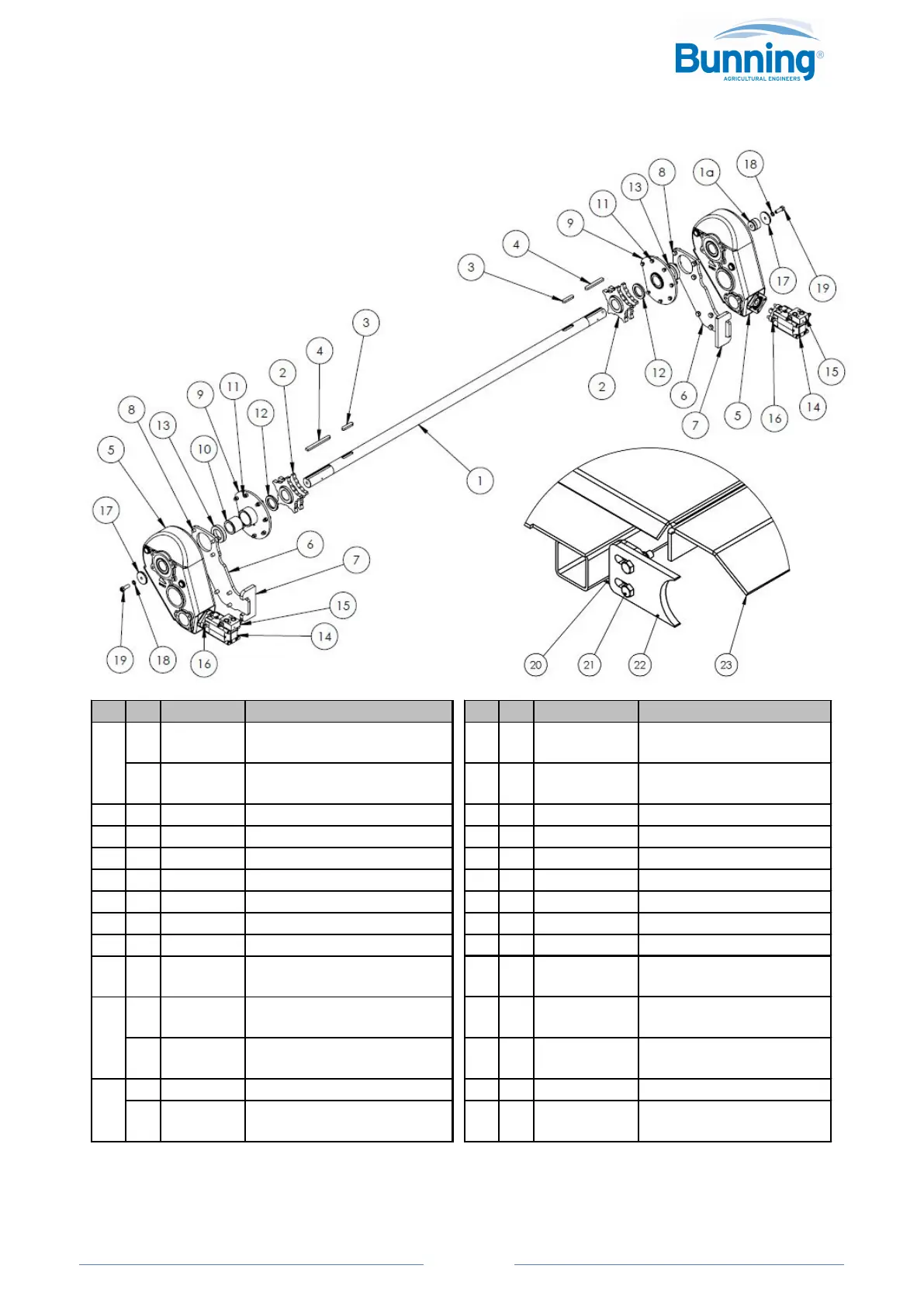

3.12 REAR SHAFT ASSEMBLY – DUAL DRIVE (800/60/32 GEARBOX) TVA STANDARD
KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION
1 B2267/1
REAR SHAFT Ø60mm (NON-
OCEANIC EXPORT)
11 14 73092 BOLT & NUT M12x35
1 B2268
REAR SHAFT Ø60mm INC
STUB END (OCEANIC EXPORT)
12 2 B2348/2 SPACER 8mm THICK
1a 1 B2268/2 REAR SHAFT STUB END 13 2 B2348/1 SPACER 20mm THICK
2 2 B2110 GYPSY WHEEL 14 2 B3054 HYDRAULIC MOTOR 250CL
3 2 B2275 KEY 18x11x80 15 2 B3078 RELIEF VALVE
4 2 B2278 KEY 18x11x190 16 8 73093 + 74702 BOLT & NUT M12x40
5 2 B3122 GEARBOX RT800/60/32 17 1 B2282/1 END PLATE LH
6 2 B3214 GEARBOX MOUNTING PLATE 17 1 B2283/1 END PLATE RH
7 2 B3215 TORQUE PLATE (WELDED) 18 2 74704 SPRING WASHER M16
8 14
73153 +
74704
BOLT & SPRING WASHER
M16x40
19 1 B2253 GREASER BOLT M16
2 B2306
BEARING FLANGE + STD ACM
BUSH
20 2 B2124 SCRAPER ATTACHMENT
2 B2307
BEARING FLANGE + THICK
ACM BUSH
21 4 73064 + 73363 BOLT & NUT M10x40
2 B2322 ACM BUSH Ø60 22 2 B2122 REAR SCRAPER PLATE
2 B2324
ACM BUSH Ø60 SPECIAL
THI CK WALL
23 1 B2824 DRIVE SHAFT COVER
1
10
9
