LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 45

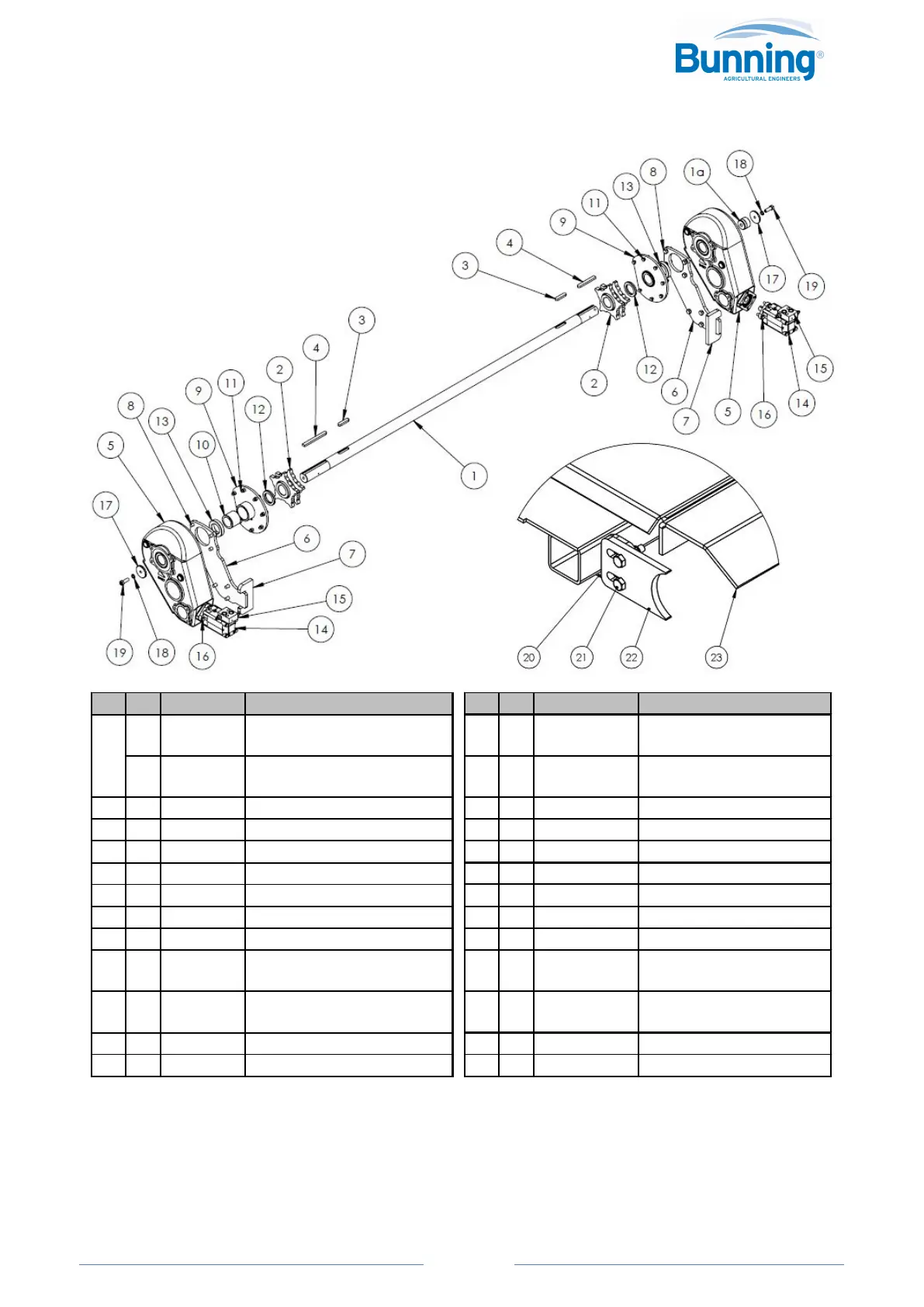

3.13 REAR SHAFT ASSEMBLY – DUAL DRIVE (1000/70/32 GEARBOX) TVA OPTION
KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION
1 B2267/1
REAR SHAFT Ø70mm (NON-
OCEANIC EXPORT)
12 2 B2349/1 SPACER 10mm THICK
1 B2258/1
REAR SHAFT Ø70mm INC
STUB END (OCEANIC EXPORT)
13 2 B2349 SPACER 20mm THICK
1a 1 B2268/3 REAR SHAFT STUB END 14 2 B3054 HYDRAULIC MOTOR 250CL
2 2 B2112 GYPSY WHEEL 15 2 B3078 RELIEF VALVE
3 2 B2275/1 KEY 20x20x80 16 8 73093 + 74702 BOLT & NUT M12x40
4 2 B2278/1 KEY 20x12x190 17 1 B2283/1 END PLATE LH
5 2 B3124 GEARBOX RT1000/70/32 17 1 B2281/1 END PLATE RH
6 2 B3216 GEARBOX MOUNTING PLATE 18 2 74704 SPRING WASHER M16
7 2 B3215 TORQUE PLATE (WELDED) 19 1 B2253 GREASER BOLT M16
8 14
73153 +
74704
BOLT & SPRING WASHER
M16x40
20 2 B2124 SCRAPER ATTACHMENT
9 2 B2309
BEARING FLANGE ASSY INCL.
ACM BUSH
21 4 73064 + 73363 BOLT & NUT M10x40
10 2 B2325 ACM BUSH Ø70 22 2 B2122 REAR SCRAPER PLATE
11 14 73092 BOLT & NUT M12x35 23 1 B2824 DRIVE SHAFT COVER
