LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 46

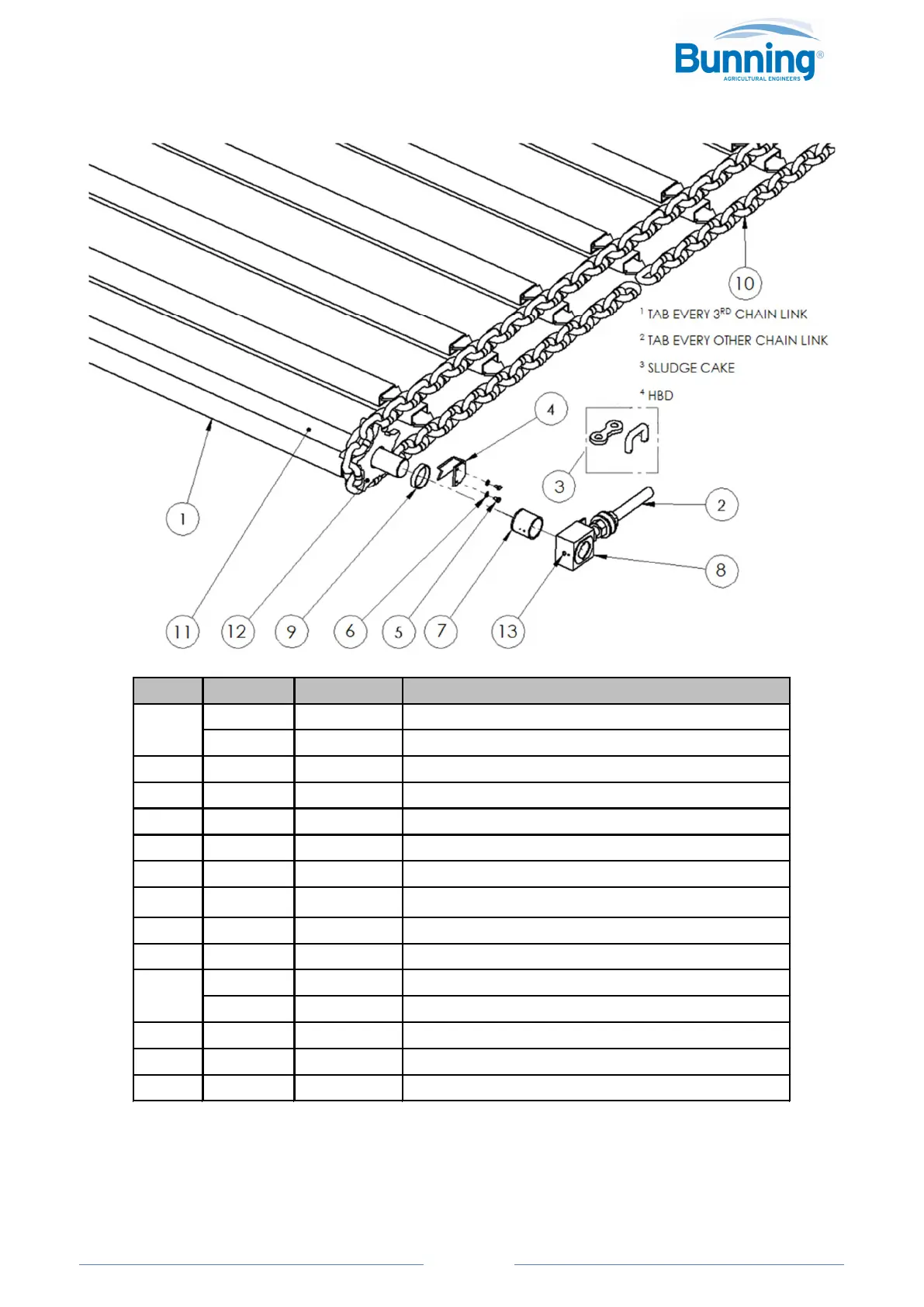

3.14 FRONT SHAFT AND CHAIN ASSEMBLY 150HD & 175HD MK2
KEY QTY PART No. DESCRIPTION
35 B2041 FLOOR SLAT BOX TYPE (EVERY 3RD LINK)
53 B2041 FLOOR SLAT BOX TYPE (EVERY OTHER LINK)
2 2 B2288 ADJUSTER M30
3 2 B2205 JOINER LINK ASSEMBLY
4 2 B2128 CLEANER FRONT GYPSY
5 4 73031 BOLT M8 x 12
6 4 74700 SPRING WASHER M8
7 2 B2322
ACM BUSH Ø60
8 2 B2294 BEARING BLOCK
9 2 B2346 SPACER
1PR B2191 CHAIN TABBED 3RD FLAT LINK
1PR CHAIN TABBED 2ND FLAT LINK
11 1 B2230 FRONT SHAFT ASSEMBLY
12 4 B2218 PLATE WHEELS (WELDS ONTO SHAFT)
13 2 50726 GREASE NIPPLE
1
10
