LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 48
4 AUGERS, BEATERS AND DRIVES

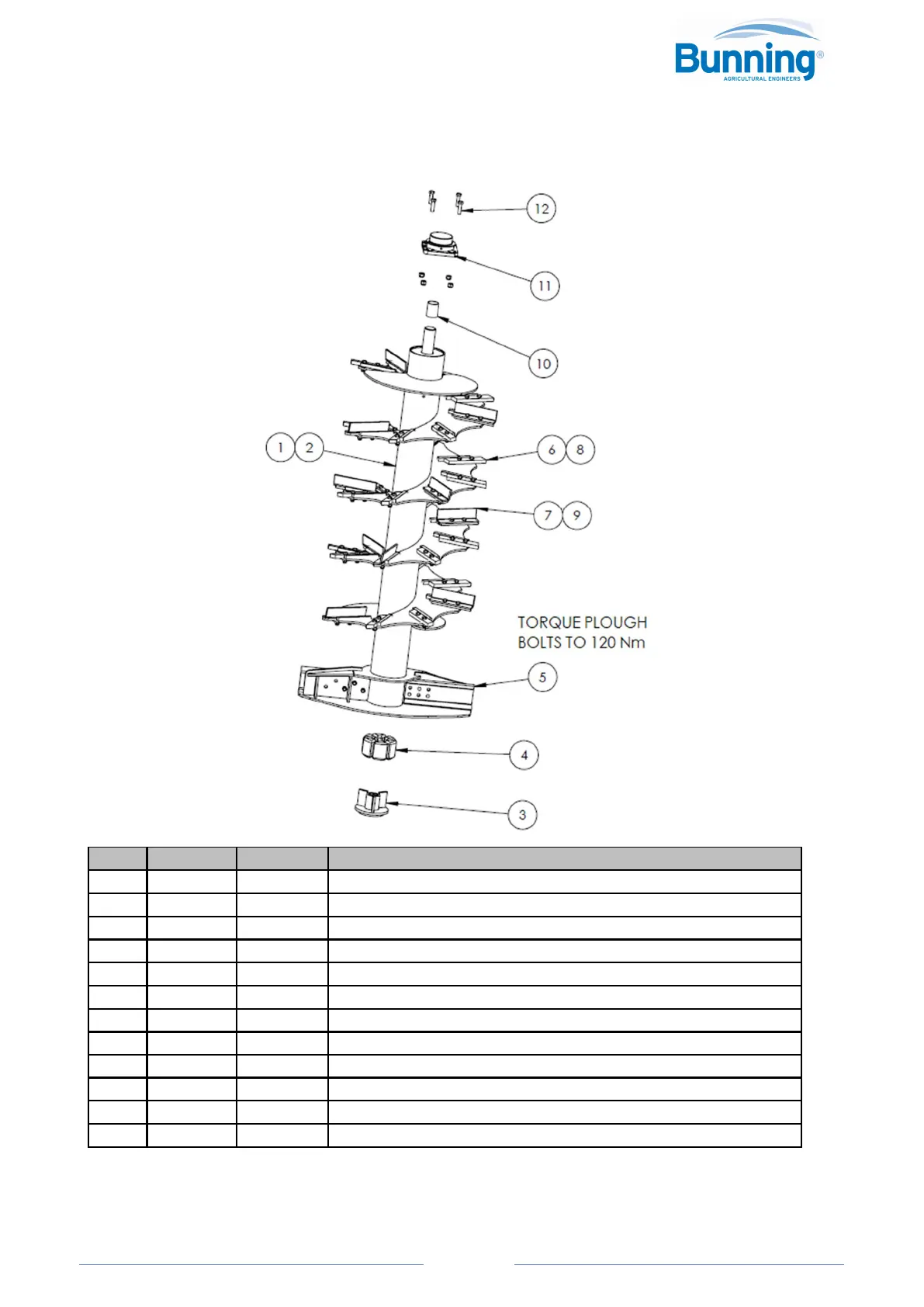

4.1 TWIN VERTICAL SHREDDING AUGERS STANDARD
KEY QTY PART No. DESCRIPTION
1 1 B1050 AUGER L.H
2 1 B1051 AUGER R.H
3 2 B1156 DRIVE FLANGE
4 12 B1146 RUBBER DRIVE BLOCK W.B
5 2 B1123/18 AUGER BLADE EACH AUGER INCL. BOLTS & NUTS
6 140 B1101/1 BOLT & LOCK NUT M14x50 FINE
7 22* B1102 CUTTER STD POINT BORON 12mm FITTED WITH B1106
8 64 B1101 CUTTER POINT H.D BORON 20mm
9 22* B1106 ANGLE THROWER OPTIONAL (FITTED EVERY 3RD)
10 2 B2352 SPACER
11 2 B1192
12 4 73154 BOLT & LOCK NUT M16x50
* OPTIONAL FITMENT, FITTED EVERY 3RD CUTTER POINT.
OPTION: B1046 & B1047 – AUGER ASSEMBLIES LH & RH WITH HORSESHOE KEEPS & NON-REVERSIBLE
CUTTER POINTS
