LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 49

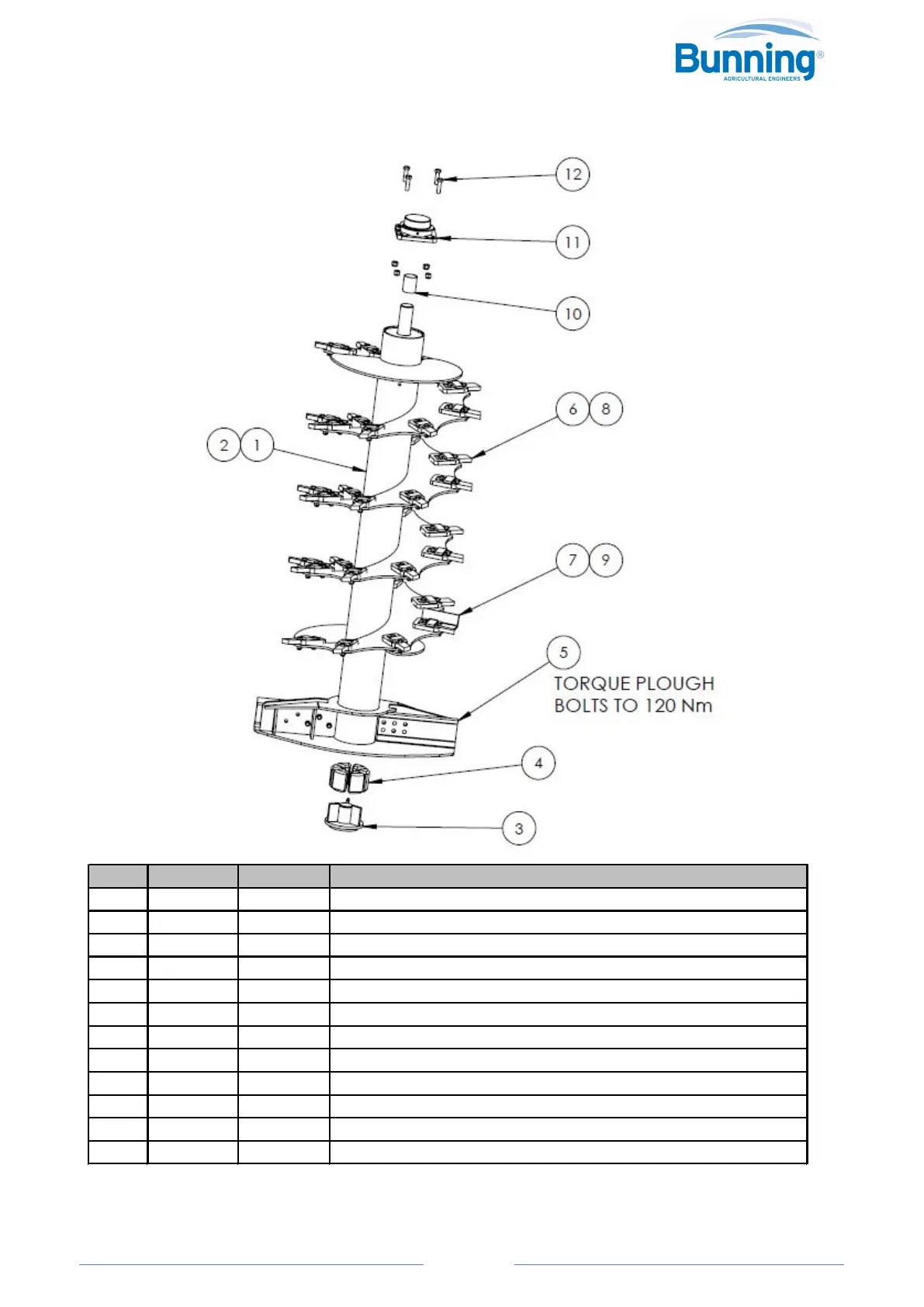

4.2 TWIN VERTICAL SHREDDING AUGERS – HORSESHOE KEEPS OPTION
KEY QTY PART No. DESCRIPTION
1 1 B1046 AUGER L.H
2 1 B1047 AUGER R.H
3 2 B1156 DRIVE FLANGE
4 12 B1146 RUBBER DRIVE BLOCK W.B
5 2 B1123/18 AUGER BLADE EACH AUGER INCL. BOLTS & NUTS
6 140 B1101/1 BOLT & LOCK NUT M14x50 FINE
7 44* BOLT & LOCK NUT M14x60 FINE
8 64 B1101A CUTTER POINT H.D BORON 20mm NON-REVERSIBLE
9 22* DMS4839 ANGLE THROWER OPTIONAL (FITTED EVERY 3RD)
10 2 B2352 SPACER
11 2 B1192
BEARING Ø60 C/W CAP
12 4 73154 BOLT & LOCK NUT M16x50
* OPTIONAL FITMENT, FITTED EVERY 3RD CUTTER POINT.
To Next Page
