LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 50

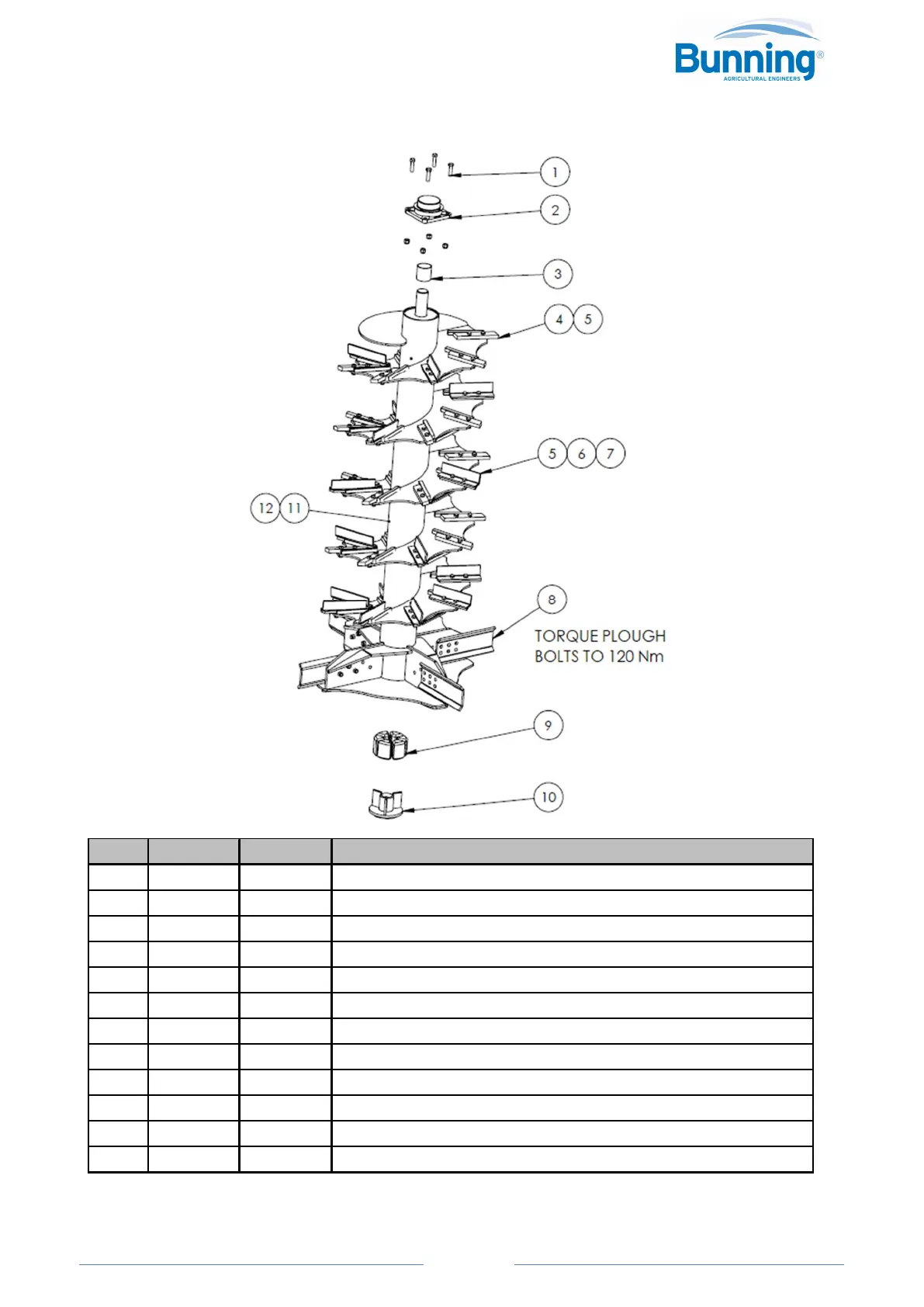

4.3 TWIN VERTICAL SHREDDING AUGERS SLUDGE CAKE
KEY QTY PART No. DESCRIPTION
1 4 73154 BOLT & LOCK NUT M16x50
2 2 B1192 BEARING M60 C/W CAP
3 2 B2352 SPACER
4 44 B1101 CUTTER POINT H.D BORON 20mm
5 184 B1101/1 BOLT & LOCK NUT M14x50 FINE
6 36 B1102 CUTTER POINT STD BORON 12mm
7 36 B1106 ANGLE THROWER
8 4 B1123/18 AUGER BLADE EACH AUGER INCL. BOLTS & NUTS
9 12 B1146 RUBBER DRIVE BLOCK W.B
10 2 B1156 DRIVE FLANGE
11 1 B1048 SLUDGE AUGER ASSEMBLY LH
12 1 B1049 SLUDGE AUGER ASSEMBLY RH
NOTE:
ANGLE THROWERS FITTED ON THE BOTTOM AUGER SPIRAL AND THEN FITTED EVERY 3RD CUTTER POINT.
