BUNNING 150HD - Page 56

LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 51

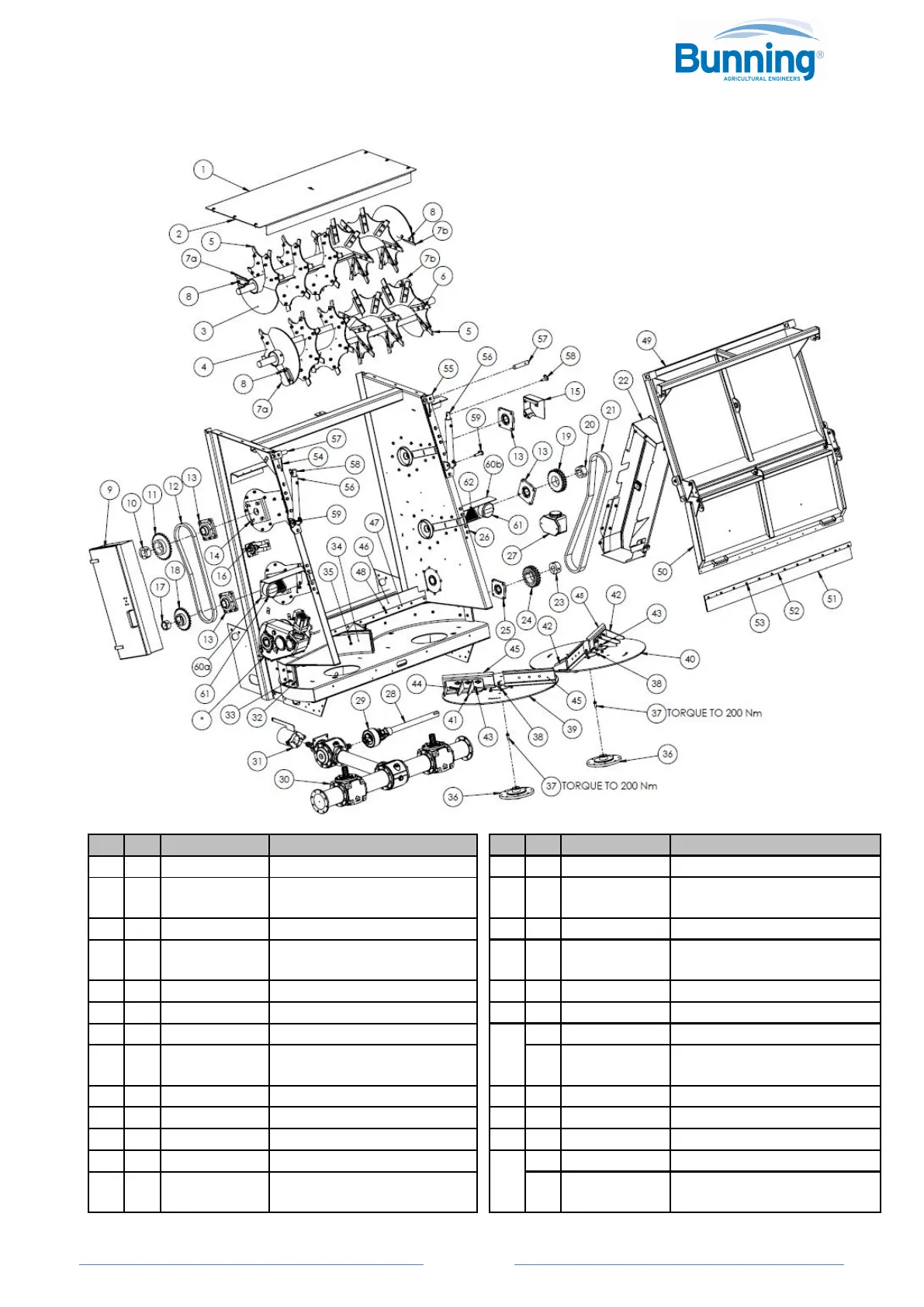

4.4 HORIZONTAL BEATER (x 2) WITH SPINNING DISCS (HBD)
KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION
1 1 DMS5029-3 CANOPY LID 13 4 B1180/1 BEARING UCFX13-60mm
2 1
73062 + 73363
+ 74688
BOLT, NUT & WASHER
M10x30
14 32
73155 + 73375
+ 74686
BOLT, NUT & WASHER
M16x50 G8.8
3 1 B8225 TOP BEATER ASSEMBLY 15 1 DMS4307 SHAFT GUARD TOP RH
4 1 B8224 BOTTOM BEATER ASSEMBLY 16 1 BC214
SINGLE TENSION SPROCKET
C/W BEARING LHS
5 64 B1102 CUTTER POINT 17 1 BC436 TAPERLOCK BUSH 2517/60
6 128 B1107 BOLT & NUT M14x40 FINE 18 1 BC248 SINGLE SPROCKET 25T 2517
7a 2 B5333 BEATER SCRAPER LHS 1 BC294 DUPLEX SPROCKET 25T 3020
7b 2 B5334 BEATER SCRAPER RHS
1 BC298
DUPLEX SPROCKET 30T
3020 (OPT)
8 8 B1107 BOLT & NUT M14x40 FINE 20 1 BC445 TAPERLOCK BUSH 3020/60
9 1 AMS4165 LHS CHAIN GUARD 21 1 BC140 DUPLEX CHAIN 1"
10 1 BC445 TAPERLOCK BUSH 3020/60 22 1 AMS4158 RHS CHAIN GUARD
11 1 BC258 SINGLE SPROCKET 30T 3020 1 BC442 TAPERLOCK BUSH 3020/50
12 1 BC120 SINGLE CHAIN 1" 1 BC434
TAPERLOCK BUSH 2517/50
(OPT)
19
23
