LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 53

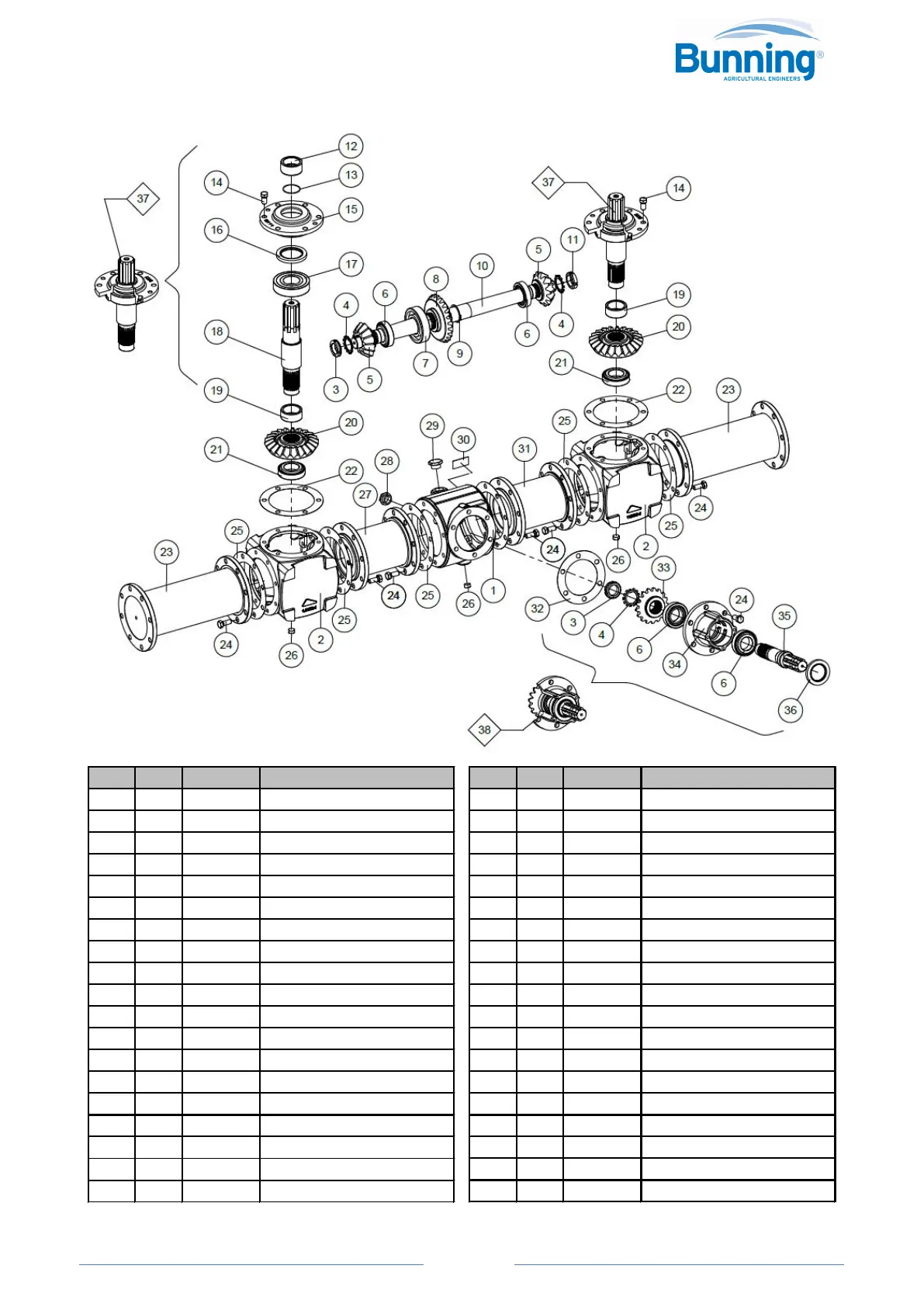

4.5 GEARBOX SRT18-1000/420 – B3182 TVA STD
KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION
1 1 B3401 CENTRE CASING 20 2 B3470 GEAR
2 2 B3406 DRIVE CASING 21 2 BR180 BEARING
3 2 B3510 LEFT THREADED RING 22 2 B3490 GASKET
4 3 B3520 WASHER 23 2 B3412 SPACER
5 2 B3460 BEVEL PINION 24 54 73125 BOLT M14x35
6 4 BR175 BEARING 25 6 B3492 GASKET
7 1 BR410 BEARING 26 3 B3993 OIL PLUG 1/2"
8 1 B3468 GEAR 27 1 B3414 SPACER
9 1 B4020 CIRCLIP 28 1 B3996 SIGHT GLASS
10 1 B3448 SHAFT 29 1 B3998 BREATHER
11 1 B3512 RIGHT THREADED RING 30 1 IDENTIFICATION PLATE
12 2 B3482 SPACER 31 1 B3417 SPACER
13 2 B3939 O RING 32 1 B3225 GASKET
14 12 73124 BOLT M14x30 33 1 B3458 BEVEL PINION
15 2 B3420 TOP PLATE 34 1 B3410 EXTENSION
16 2 SL195 OIL SEAL 35 1 B3440 SHAFT
17 2 BR405 BEARING 36 1 SL165 OIL SEAL
18 2 B3444 SHAFT 37 2 TOP PLATE ASSEMBLY
19 2 B3480 SPACER 38 1 B3409 HUB ASSEMBLY
To Next Page
