LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 55

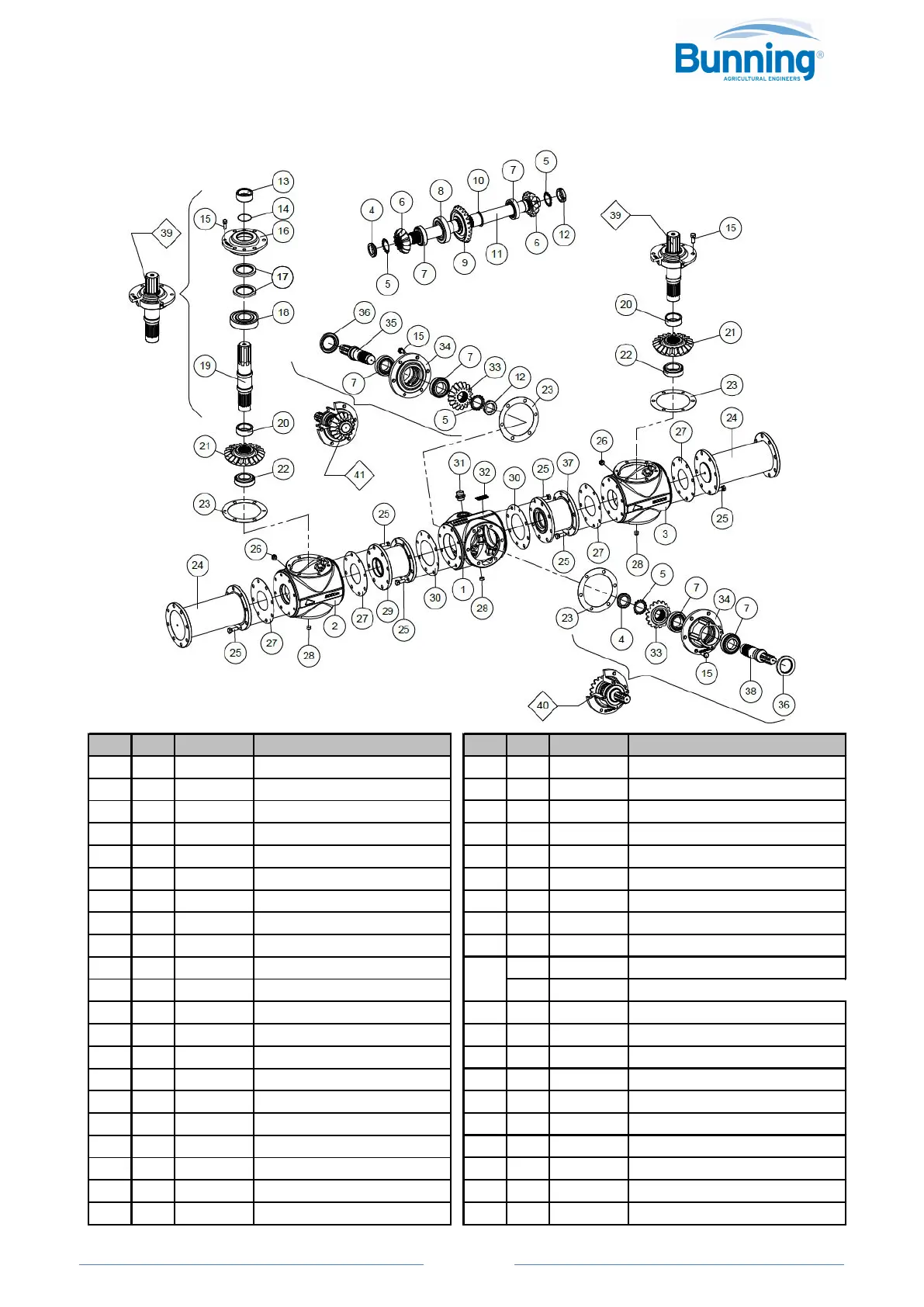

4.7 GEARBOX SRT20-1000/420 THRU – B3196 TVA SPINNER DECK READY
KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION
1 1 B3701 CENTRE CASING 22 2 BR232 BEARING
2 1 B3736 RIGHT DRIVE CASING 23 4 B3714 GASKET
3 1 B3738 LEFT DRIVE CASING 24 2 B3715 OUTER CASE SECTION
4 2 B3704 NUT LH THREAD 25 48 73127 BOLT M14x40
5 4 B3705 WASHER 26 2 B3994 SIGHT GLASS Ø1/2"
6 2 B3706 PINION GEAR 27 4 B3716 GASKET
7 6 BR185 BEARING 28 3 B3993
8 1 BR156 BEARING 29 1 B3717 INNER CASING SECTION RH
9 1 B3451 CROWN GEAR 30 2 B3718 GASKET
10 1 B4021 CIRCLIP 1 B3998 BREATHER PLUG Ø1"
11 1 B3708 CROSS SHAFT 1 B3989
12 2 B3709 NUT RH THREAD 32 1 IDENTIFCATION PLATE
13 2 B3710 SPACER SLEEVE 33 2 B3455 PINION GEAR
14 2 B3937 O RING 34 2 B3719 HUB
15 24 73125 BOLT M14x35 35 1 B3720 OUTPUT SHAFT - THRU
16 2 B3711 TOP PLATE 36 2 SL190 SEAL
17 4 SL198 SEAL 37 1 B3721 INNER CASING SECTION LH
18 2 BR415 BEARING 38 1 B3722 INPUT SHAFT
19 2 B3712 OUTPUT SHAFT 39 2 B3723 COMPLETE DRIVE
20 2 B3713 SPACER SLEEVE 40 1 B3421 COMPLETE HUB INPUT
21 2 B3707 CROWN GEAR 41 1 B3422 COMPLETE HUB OUTPUT
31
