LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 56

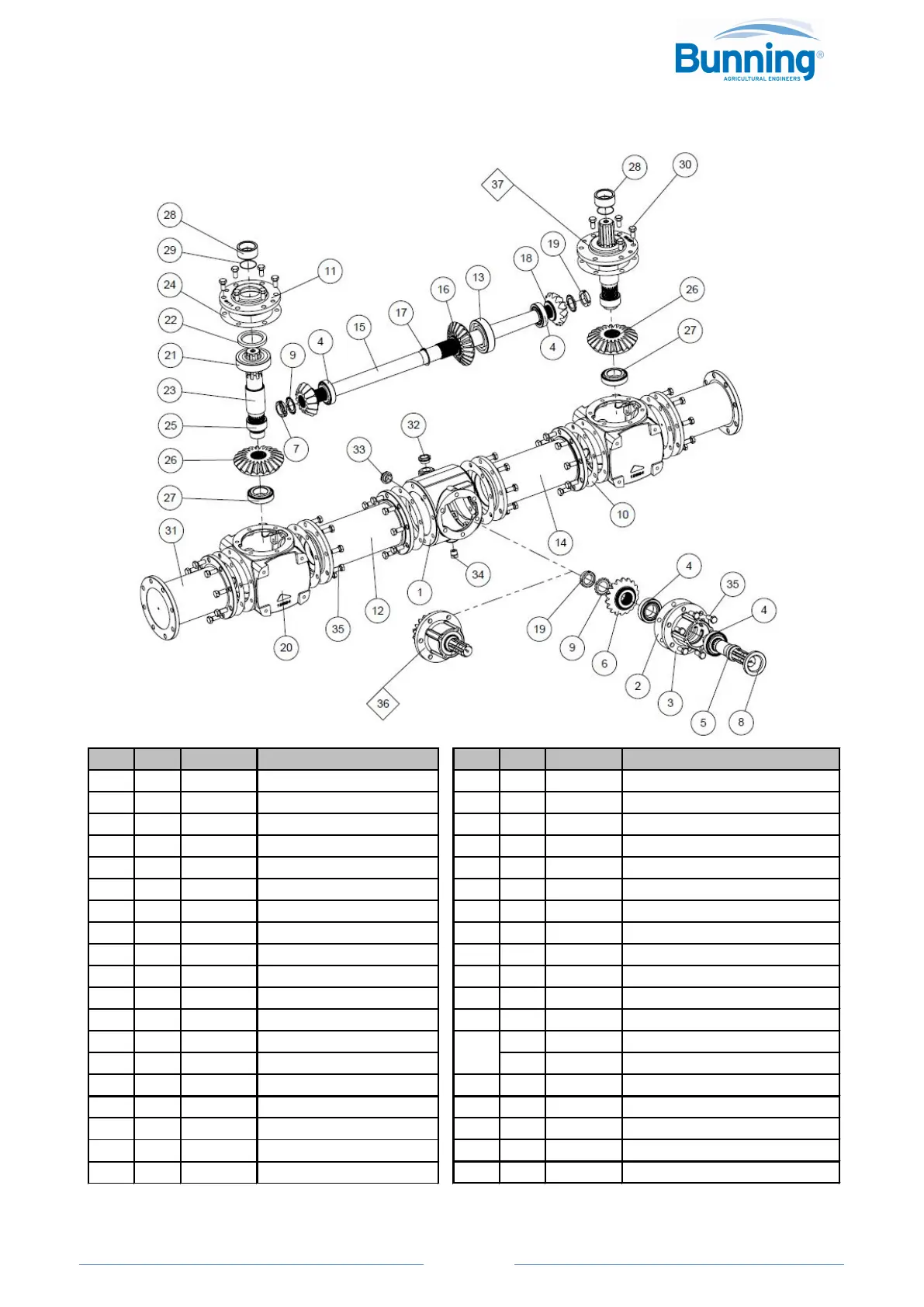

4.8 GEARBOX SRT18-1000/520 – B3190 WB TVA DETACHABLE SPINNER DECK
KEY QTY PART No. DESCRIPTION KEY QTY PART No. DESCRIPTION
1 1 B3405 CASING 20 2 B3418 AUGER GEAR CASE
2 1 B3494 GASKET 21 2 BR405 BEARING
3 1 B3410 EXTENSION 22 2 SL195 SEAL
4 4 BR175 BEARING 23 2 B3444 OUTPUT SHAFT
5 1 B3440 SHAFT 24 2 B3490 GASKET
6 1 B3454 PINION GEAR 25 2 B3480 SPACER
7 1 B3510 NUT LH THREAD 26 2 B3469 CROWN GEAR
8 1 SL165 SEAL 27 2 BR180 BEARING
9 3 B3520 WASHER 28 2 B3482 SLEEVE
10 6 B3492 GASKET 29 2 B3939 O RING
11 2 B3420 TOP PLATE 30 12 73124 BOLT M14x30
12 1 B3415R INNER CASE SECTION 31 2 B3413 OUTER CASE SECTION
13 1 BR410 BEARING 1 B3998
14 1 B3416R INNER CASE SECTION 1 B3989
15 1 B3449R CROSS SHAFT 33 1 B3996 SIGHT GLASS Ø1"
16 1 B3464 PINION GEAR 34 1 B3990 DRAIN BUNG Ø1/2"
17 1 B4020 CIRCLIP 35 54 73125 BOLT M14x35
18 2 B3459 PINION GEAR 36 1 B3408/1 NOSE CONE ASSEMBLY
19 2 B3512 NUT 37 2 B3420 DRIVE ASSEMBLY
32
