LOWLANDER HD MK2 & WIDEBODY MANURE SPREADER – INSTRUCTION & SPARES MANUAL
Page 57

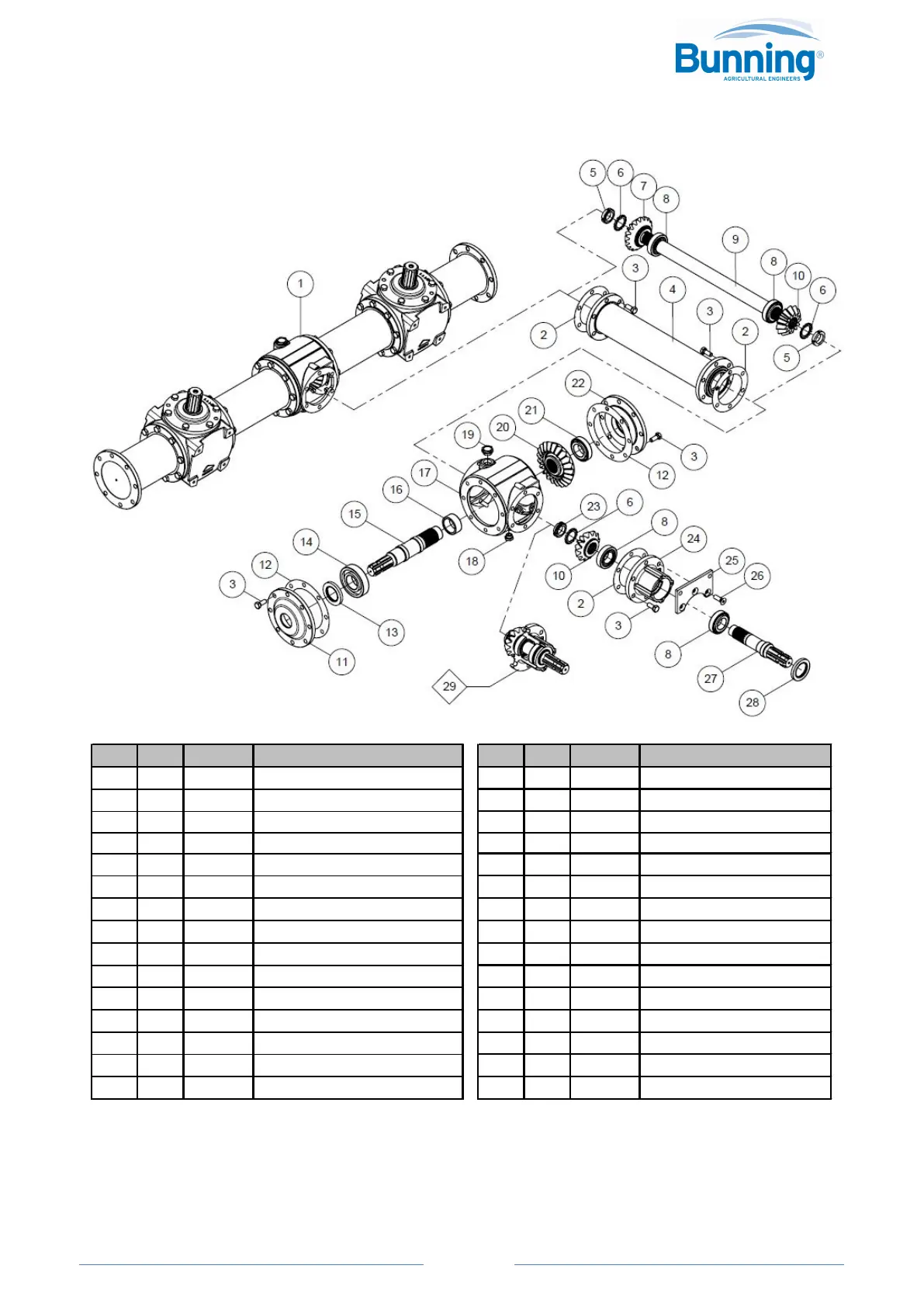

4.9 GEARBOX SRT18-1000/590/520 – B3183 ALL HORIZONTAL BEATERS & DISCS MACHINES
KEY QTY
DESCRIPTION KEY QTY
DESCRIPTION
1 1 B3511 BACK GEARBOX (SEE Pg 58) 16 1 B3480 SPACER
2 3 B3494 GASKET 17 1 B3405 HOUSING
3 31 73125
4 1 B3514 SPACER L = 573.5 19 1 B3998
5 2 B3512 THREADED RING 20 1 B3470 GEAR
6 3 B3520 WASHER 21 1 BR180 BEARING
7 1 B3454 BEVEL PINION 22 1 B3518 BLIND FLANGE
8 4 BR175 BEARING 23 1 B3510 THREADED RING
9 1 B3515 SHAFT 24 1 B3410 HUB
10 2 B3460 BEVEL PINION 25 1 B3519 SUPPORT PLATE
11 1 B3516 FLANGE 26 3 73128 BOLT M14x45
12 2 B3492 GASKET 27 1 B3440 SHAFT
13 1 SL178 OIL SEAL DL 28 1 SL165 OIL SEAL DL
14 1 BR410 BEARING 29 1 B3408 COMPLETE HUB
15 1 B3517 OUTPUT SHAFT
To Next Page
